Battery Negative Cable Replacement

REMOVAL PROCEDURE




1. Remove the battery.

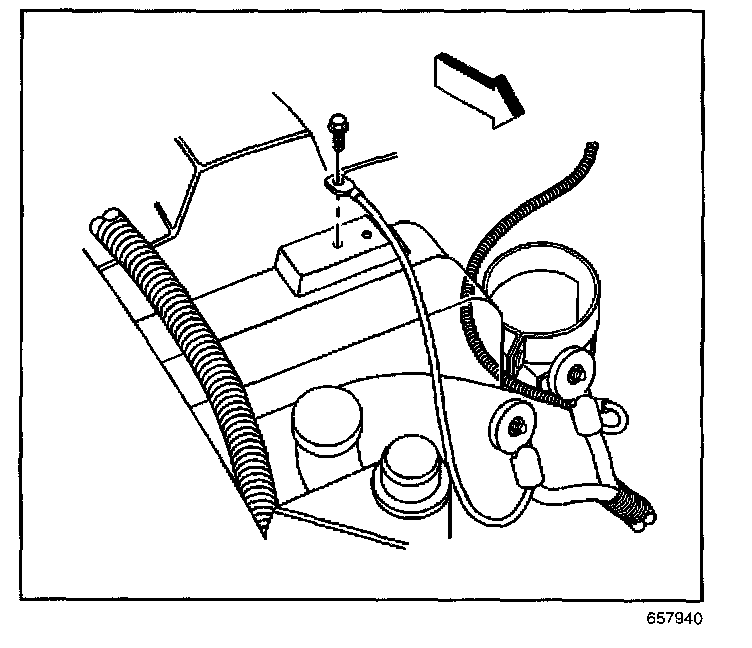

2. Remove the ground terminal bolt.

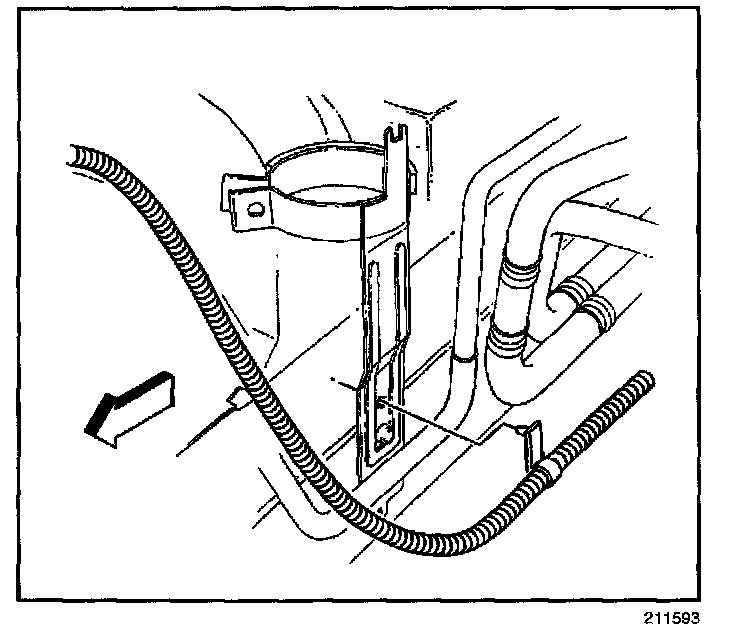

3. Remove the battery cable clip from the accumulator bracket.




4. Remove the ground lead bolt (1) at the engine block.
5. Remove the negative cable from the harness conduit.

INSTALLATION PROCEDURE




1. Install the negative cable to the harness conduit.
2. Position the ground lead (2).

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the ground lead bolt (1) at the engine block.

Tighten
Tighten the ground lead bolt to 32 N.m (24 lb ft).




4. Install the battery cable clip to the accumulator bracket.




5. Position the ground lead.
6. Install the ground terminal bolt to the wheelhouse.

Tighten
Tighten the ground terminal bolt to 16 N.m (12 lb ft).

7. Install the battery.
