Flywheel: Service and Repair

Engine Flywheel Replacement

Removal Procedure





1. Remove the automatic transmission, if applicable.
2. Remove the manual transmission, if applicable.

Important: Note the position and direction of the engine flywheel before removal. The flywheel does not use a locating pin for alignment and will not initially seat against the crankshaft flange, but will be pulled onto the crankshaft by the engine flywheel bolts. This procedure requires a three stage tightening process.

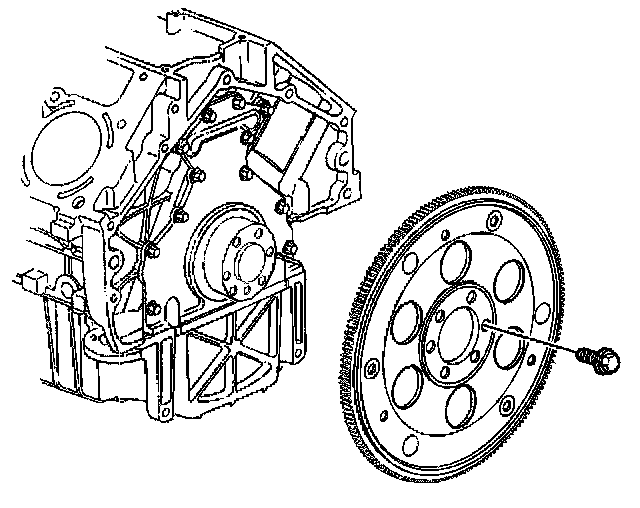

3. Remove the engine flywheel bolts.
4. Remove the automatic transmission flywheel, if applicable.





5. Remove the manual transmission flywheel, if applicable.

Installation Procedure





1. Install the manual transmission flywheel to the crankshaft, if applicable.





2. Install the automatic transmission flywheel to the crankshaft, if applicable.





3. Apply threadlock GM U.S. P/N 12345382, Canada P/N 10953489, or equivalent to the threads of the flywheel bolts.

Notice: Refer to Fastener Notice in Service Precautions.

4. Install the flywheel bolts.

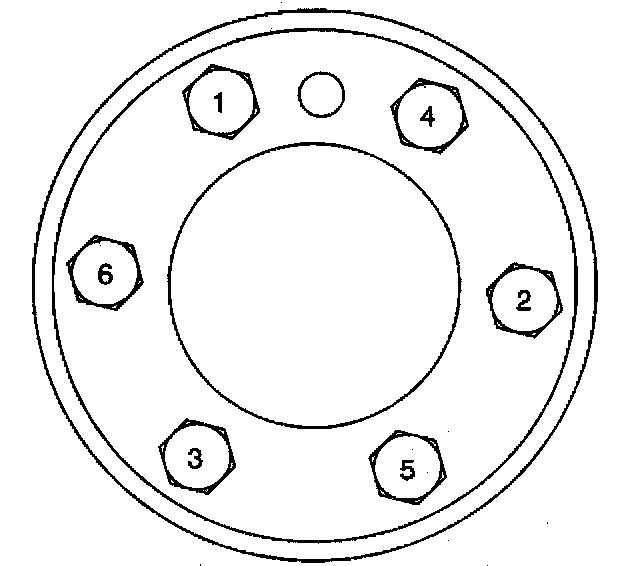

4.1. Tighten the engine flywheel bolts a first pass in sequence to 20 Nm (15 ft. lbs.).
4.2. Tighten the engine flywheel bolts a second pass in sequence to 50 Nm (37 ft. lbs.).
4.3. Tighten the engine flywheel bolts a final pass in sequence to 100 Nm (74 ft. lbs.).
5. Install the manual transmission, if applicable.
6. Install the automatic transmission, if applicable.
