Alternator: Service and Repair

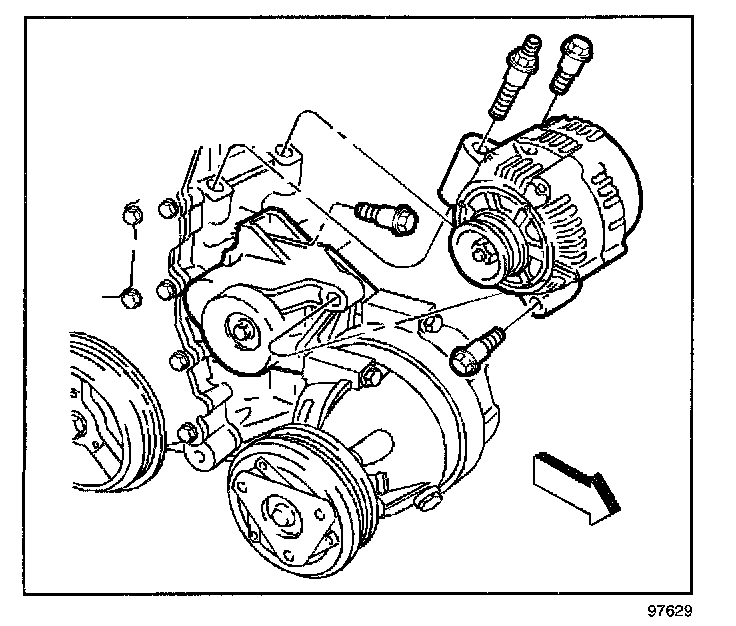

GENERATOR REPLACEMENT

REMOVAL PROCEDURE




1. Disconnect the negative battery cable.
2. Remove the drive belt.
3. Remove the generator bolts.
4. Disconnect the generator electrical connections.
5. Remove the generator.

INSTALLATION PROCEDURE




1. Install the generator.
2. Connect the generator electrical connections.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the generator bolts.

Tighten
Tighten the generator bolts to 50 N.m (37 lb ft).

4. Install the drive belt.
5. Connect the negative battery cable.
