Engine Support Fixture

Engine Support Fixture

^ Tools Required
- J 28467-B Engine Support Fixture
- J 28467-501

Installation Procedure

1. Raise the hood.
2. Disconnect the battery ground (negative) cable.

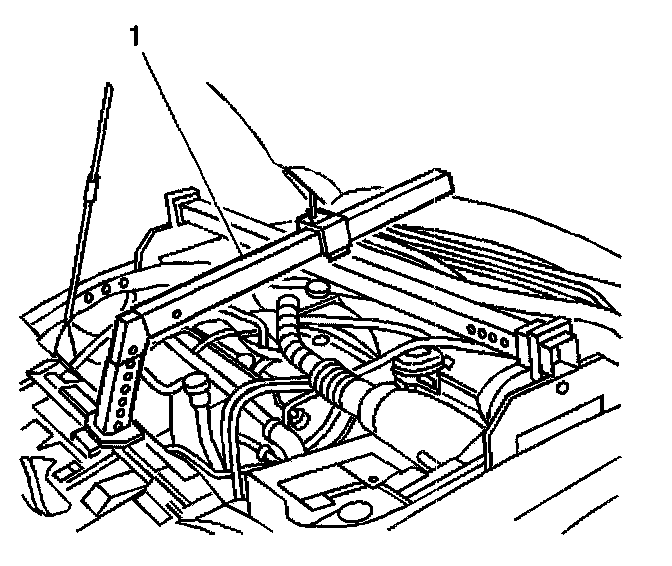

3. Install the J28467-B J 28467-7A (1) and J 28467-B (2) to the vehicle.

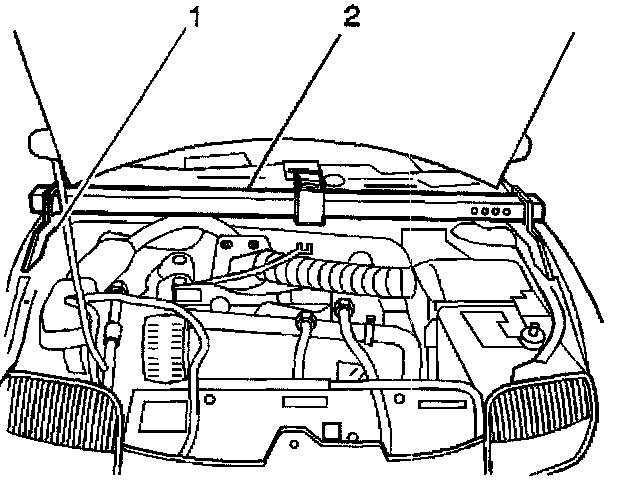

4. Install the radiator shelf tube J 28467-2A (1).

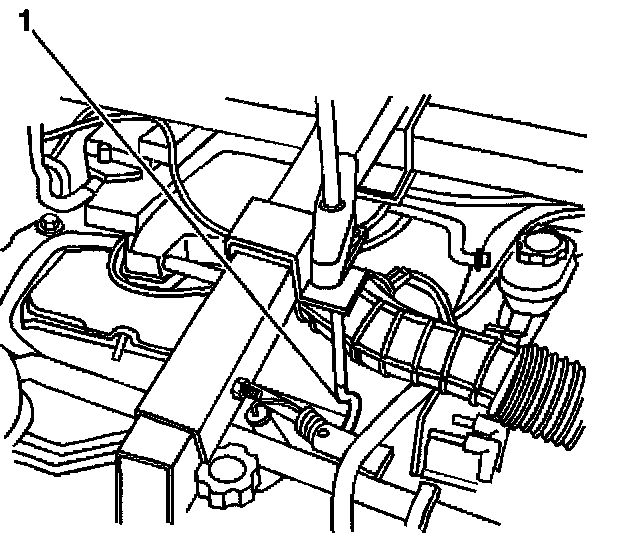

5. Install the J 28467-7 lift hook (1) to the front engine lift bracket

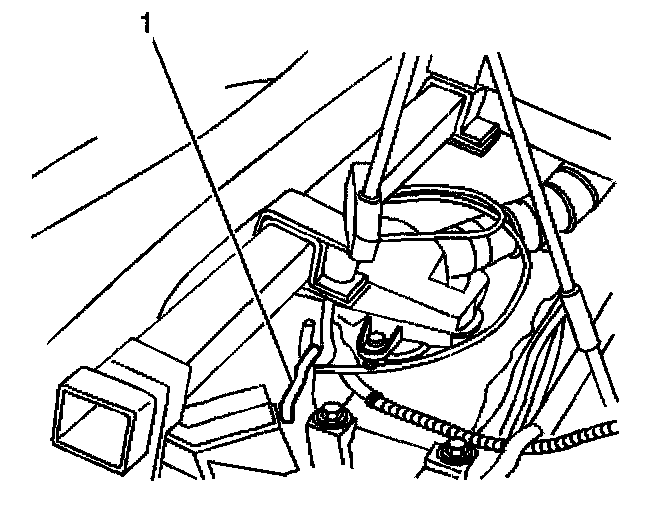

6. Install the J 28467-8 lift hook (1) to the rear engine lift bracket
