System Specifications

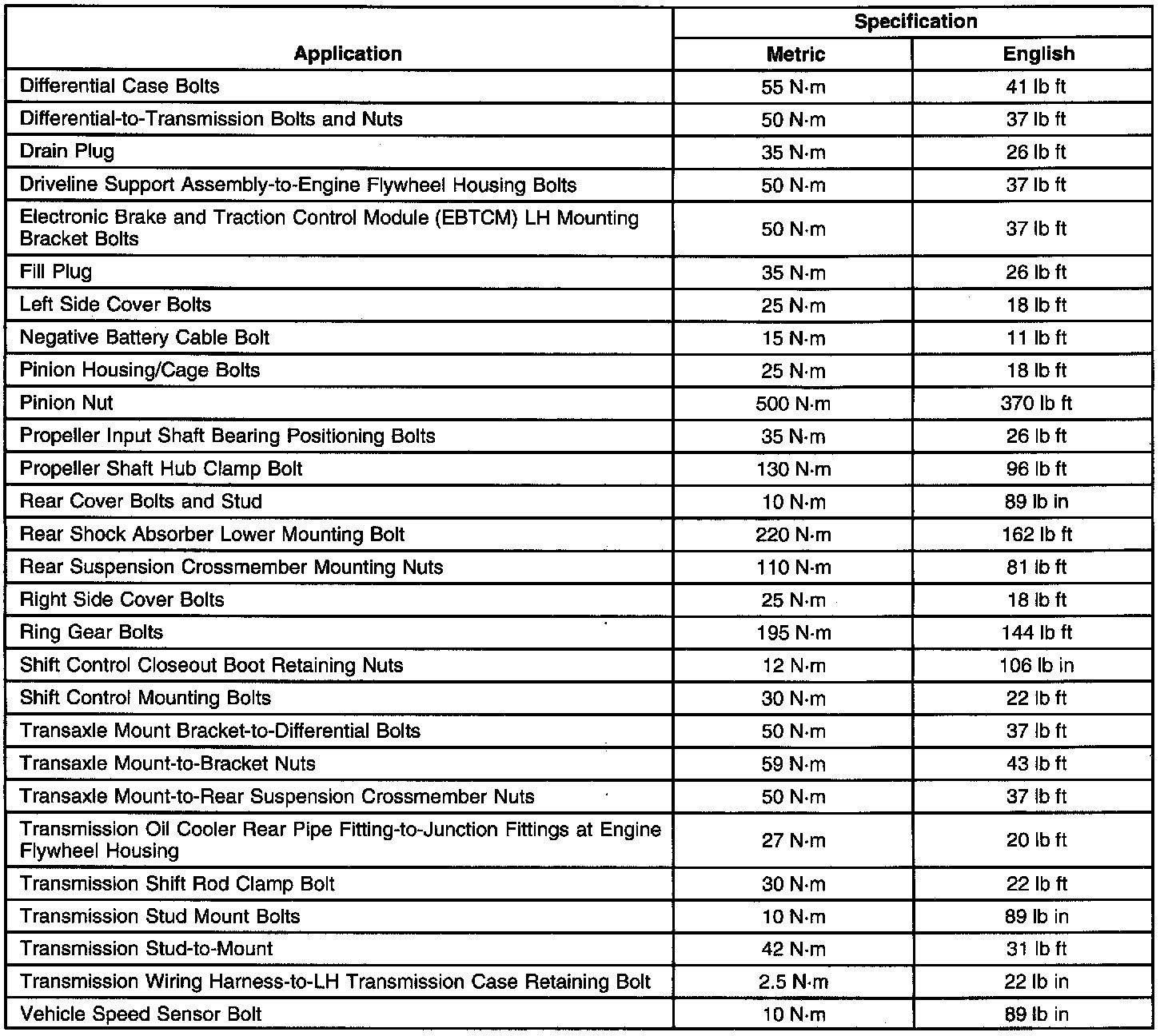

Fastener Tightening Specifications





Rear Axle Specifications








Rear Axle Usage

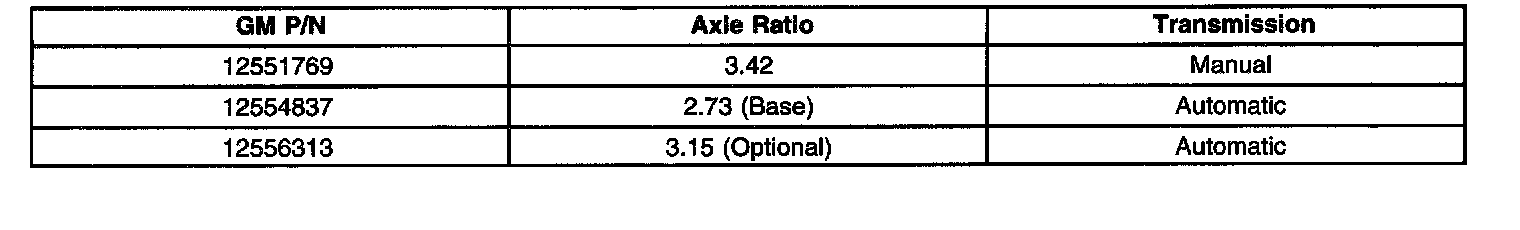

Available Axle Ratios

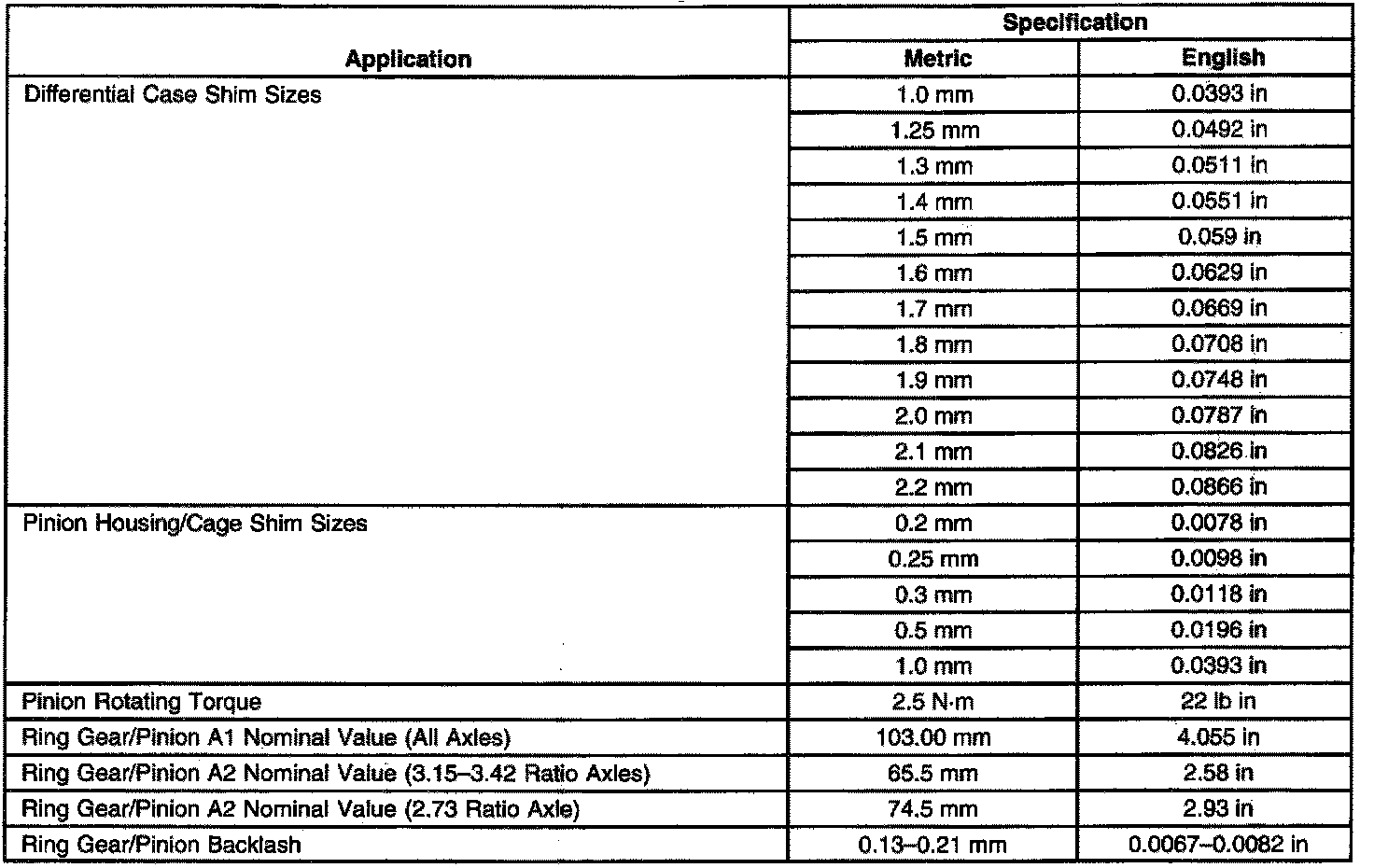

Spacer and Shim Specifications

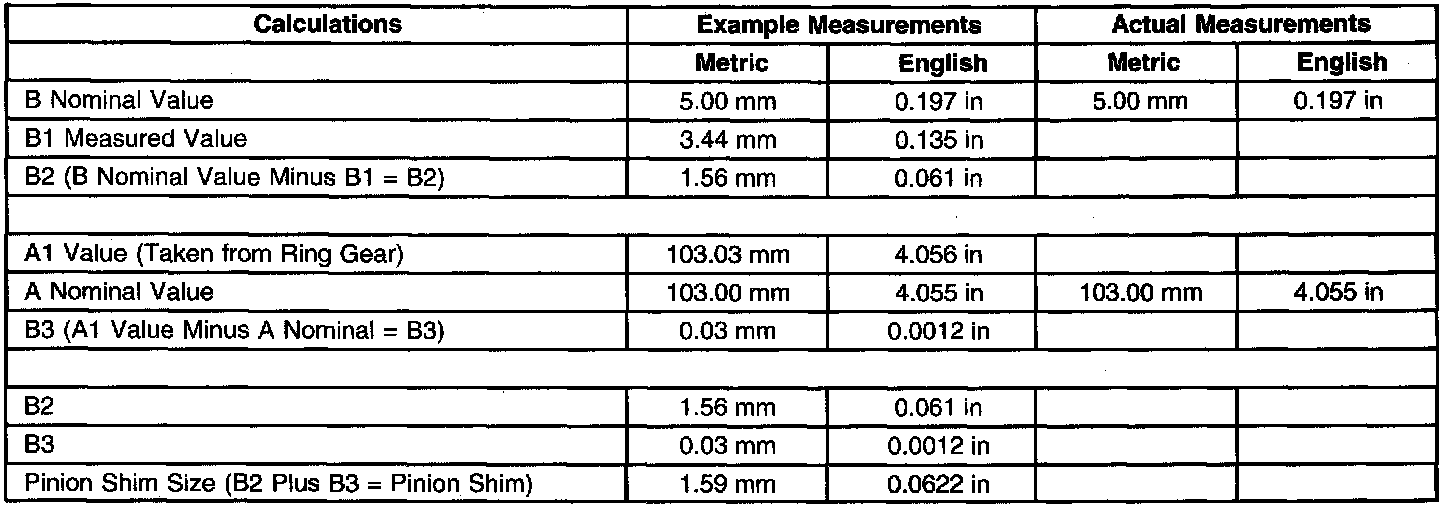

Pinion Shim Calculation Table with an A1 Value Greater Than 103.00 mm (4.055 inch) All Axle Ratios

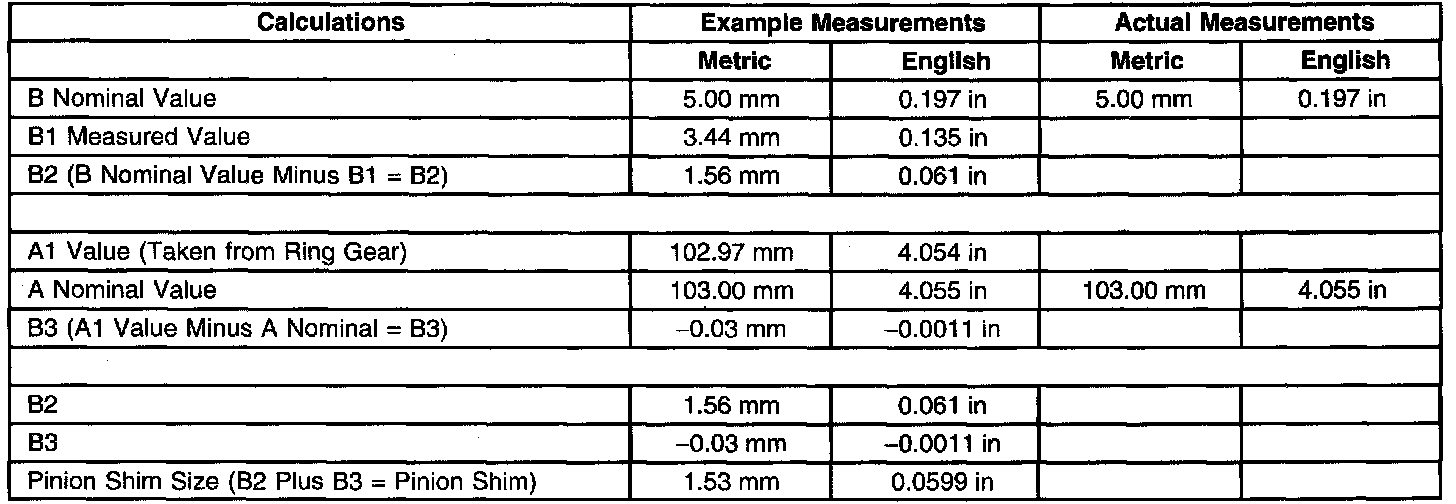

Pinion Shim Calculation Table with an A1 Value Less Than 103.00 mm (4.055 inch) All Axle Ratios

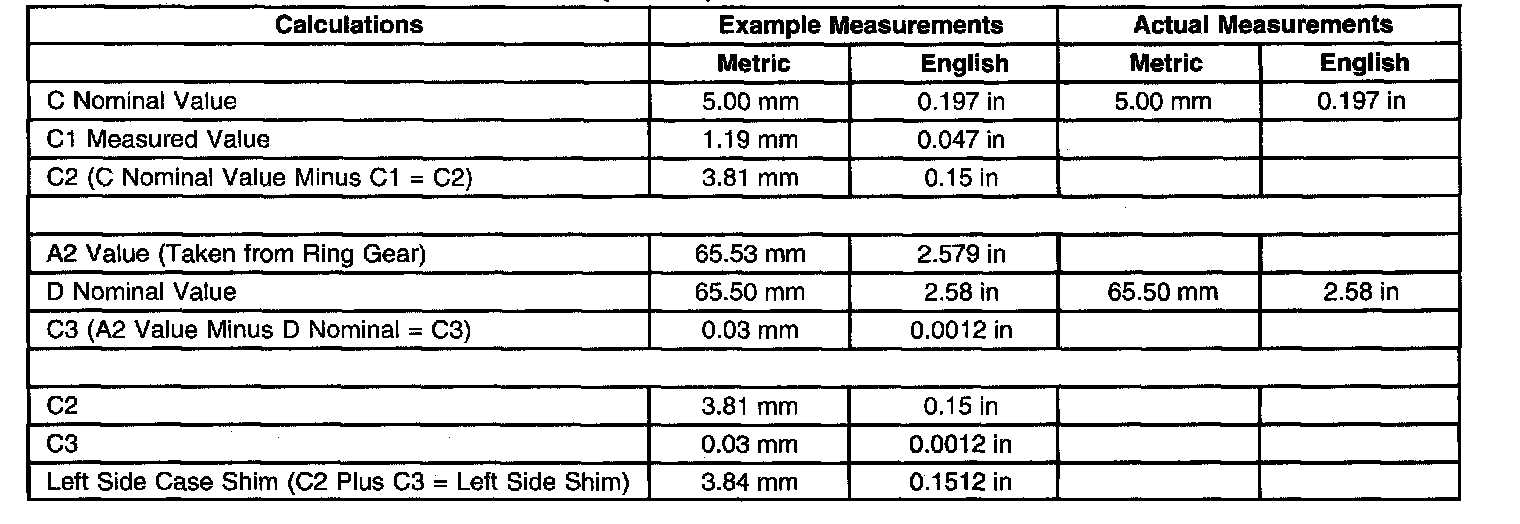

Differential Case Left Side Shim Calculation Table with an A2 Value Greater Than 65.5 mm (2.58 inch) 3.15/3.42 Ratio Axles





Differential Case Left Side Shim Calculation Table with an A2 Value Less Than 65.5 mm (2.58 inch) 3.15/3.42 Ratio Axles





Differential Case Left Side Shim Calculation Table with an A2 Value Greater Than 74.50 mm (2.933 inch) 2.73 Ratio Axles





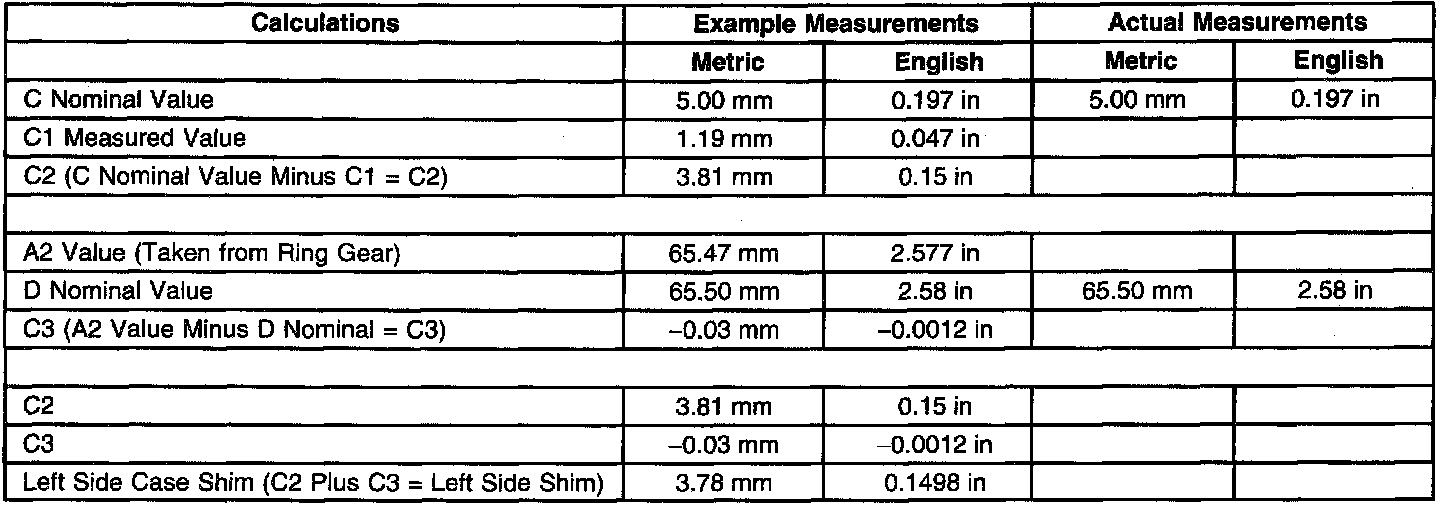

Differential Case Left Side Shim Calculation Table with an A2 Value Less Than 74.50 mm (2.933 inch) 2.73 Ratio Axles

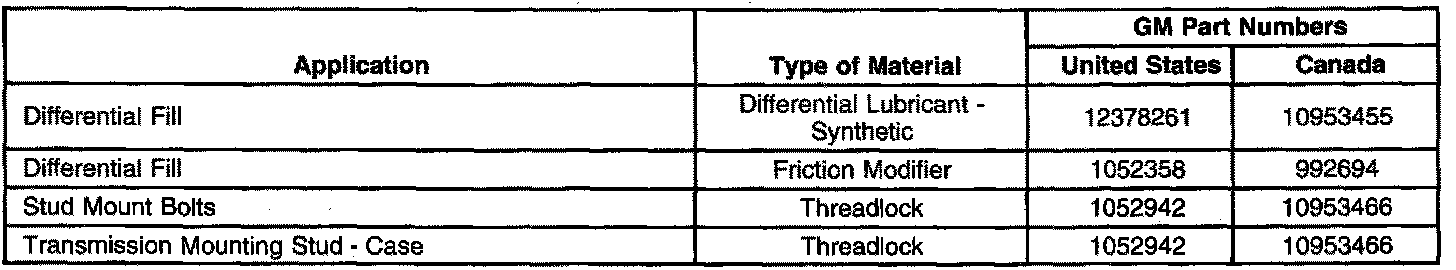

Sealers, Adhesives, and Lubricants
