Flex Plate

Fastener Tightening Specifications
Flywheel to Torque Converter Bolt 63 Nm (46 ft. lbs.)
Flexplate Spindle Nut (Automatic Transmission) 90 Nm (66 ft. lbs.)
Flexplate-to-Flexplate Spindle Bolts (Automatic Transmission) 50 Nm (37 ft. lbs.)

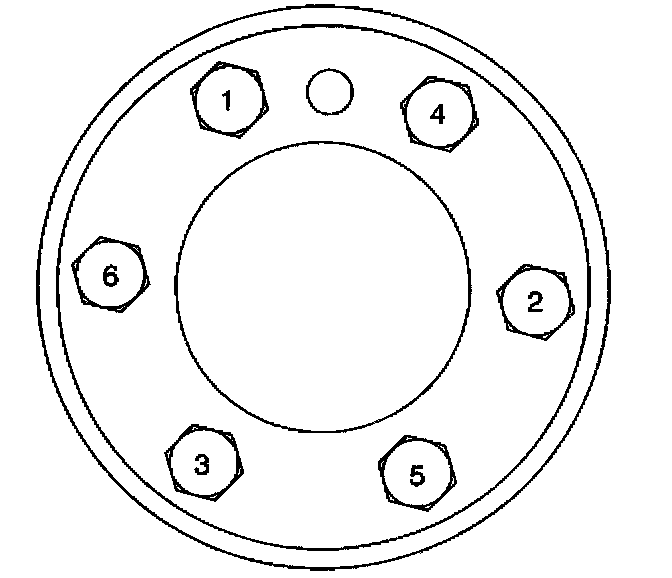

Engine Flywheel Bolts (First Pass in Sequence) 20 Nm (15 ft. lbs.)
Engine Flywheel Bolts (Second Pass in Sequence) 50 Nm (37 ft. lbs.)
Engine Flywheel Bolts (Final Pass in Sequence) 100 Nm (74 ft. lbs.)
