Pressure Plate
Fastener Tightening Specifications Clutch Pressure Plate Bolts
63 Nm (47 ft. lbs.)

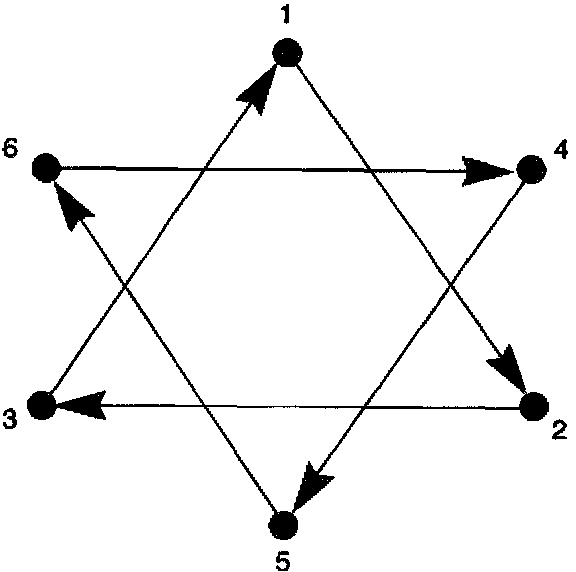

Clutch pressure plate bolts must be tightened in sequence and in even increments over three passes, then tightened to final specification on the fourth pass.
