Power Sunroof Express Module Replacement

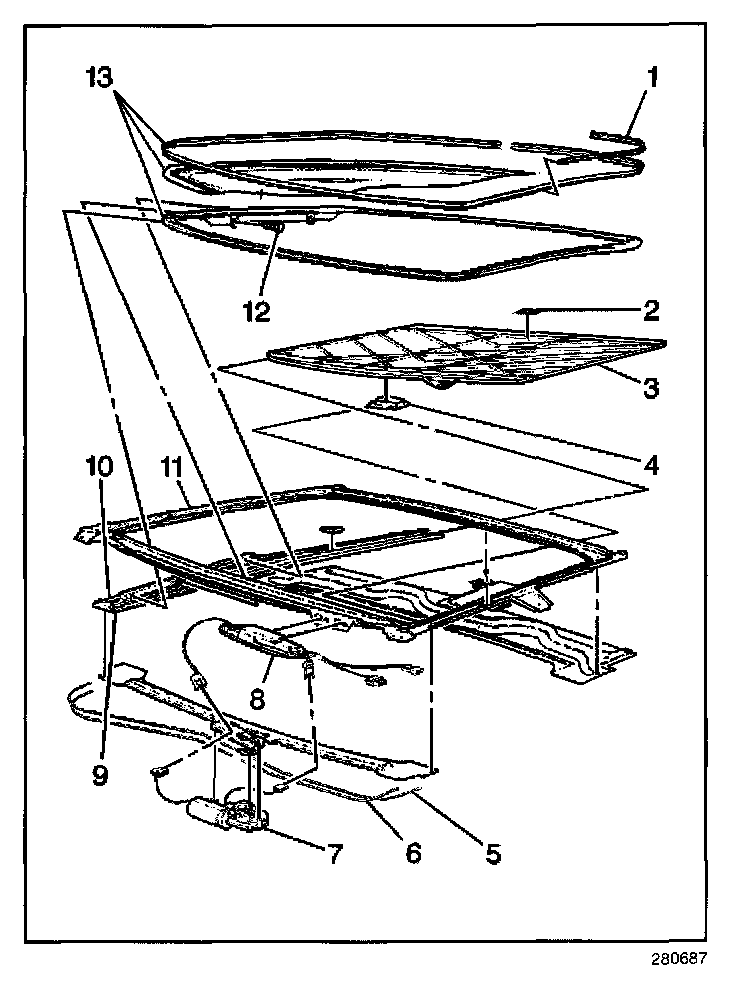

REMOVAL PROCEDURE




1. Close the sunroof.
2. Remove the headliner, as necessary.
3. Disconnect the wire harness connectors from both ends of the express module (8).
4. Remove the nylon tie straps from the express module (8).
5. Remove the express module (8) from the sunroof module by sliding the express module towards the right of the vehicle.

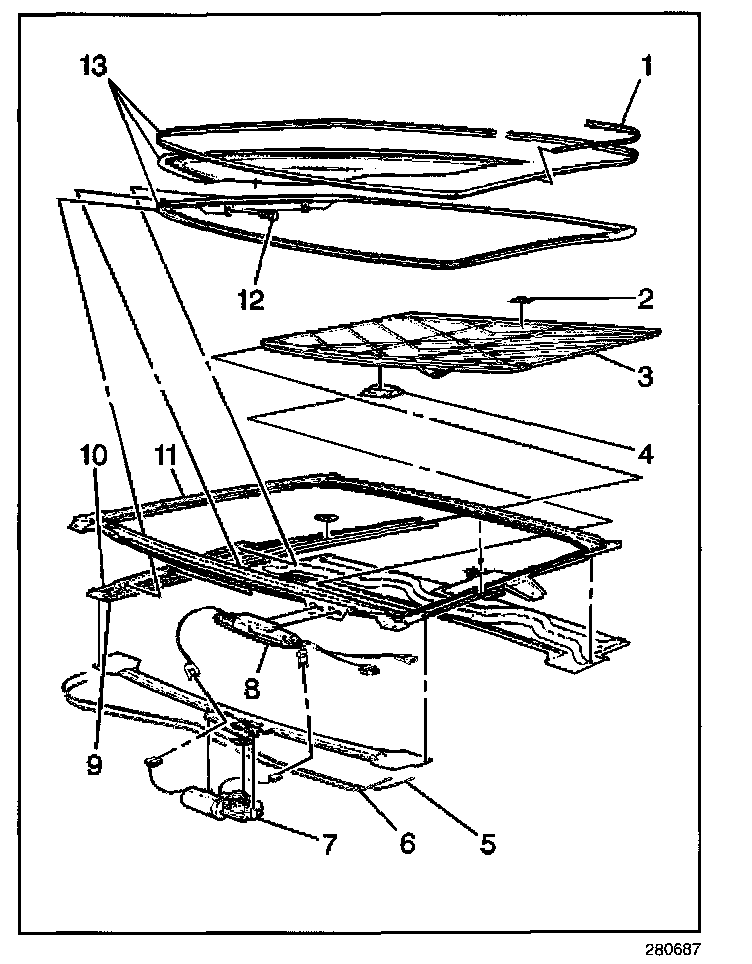

INSTALLATION PROCEDURE




1. Install the express module to the sunroof module by sliding the express module (8) towards the left side of the vehicle.
2. Install the nylon tie straps to the express module (8).
3. Connect the wire harness connectors to both ends of the express module (8).
4. Install the headliner, as necessary.
5. Check for proper operation of the sunroof.
