Power Sunroof Module Replacement

REMOVAL PROCEDURE




1. Close the sunroof.
2. Remove the sunroof sunshade.
3. Remove the headliner.
4. Disconnect the sunroof module electrical connector from the sunroof module.
5. Disconnect the front and rear sunroof module drain hoses from the sunroof module.

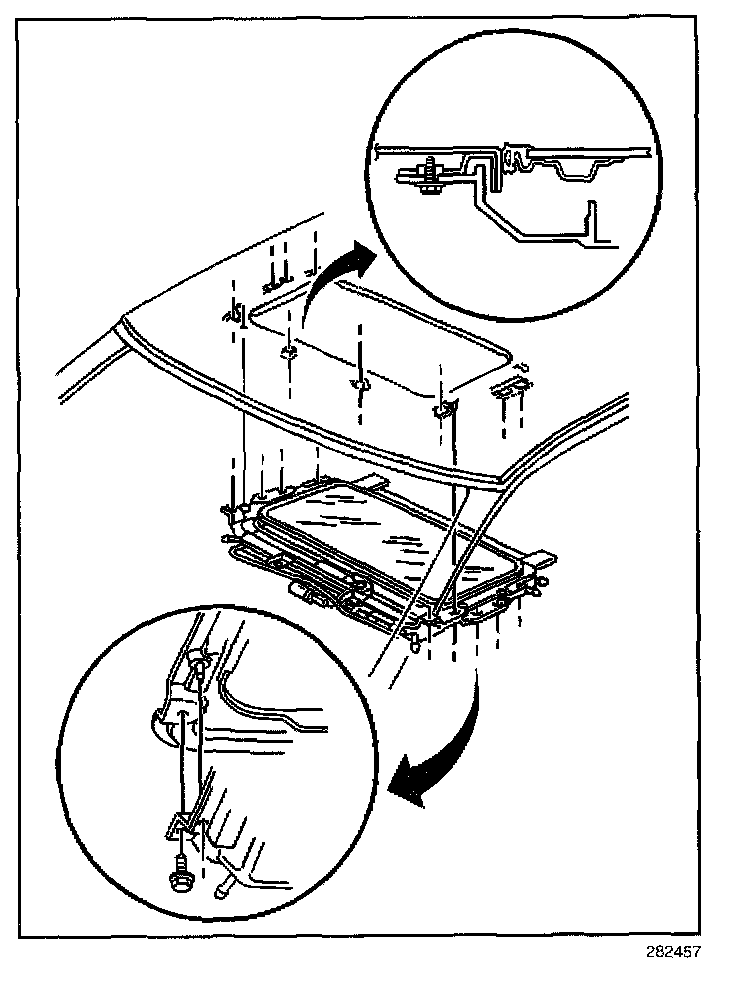

6. With help from an assistant, support the sunroof module before removing the bolts.
7. Remove the sunroof module bolts from the sunroof module.
8. Remove the sunroof module from the vehicle through the door opening with an assistant.

INSTALLATION PROCEDURE

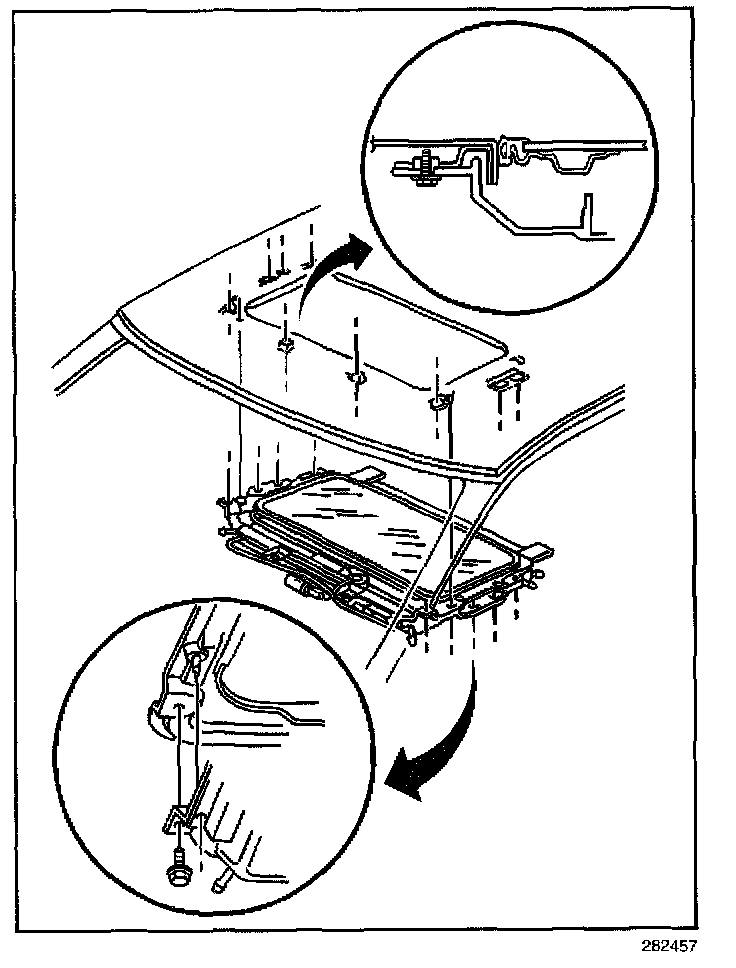

1. Install the sunroof module to the vehicle through the door opening.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the sunroof module bolts to the sunroof module.

Tighten
Tighten the bolts to 11 N.m (97 lb in).

3. Connect the front and rear sunroof module drain hoses to the sunroof module.
4. Connect the sunroof module electrical connector to the sunroof module.
5. Install the headlining trim finish panel.
6. Install the sunroof sunshade.
7. Inspect the sunroof for proper operation.
