A - Z Master Electrical Component List

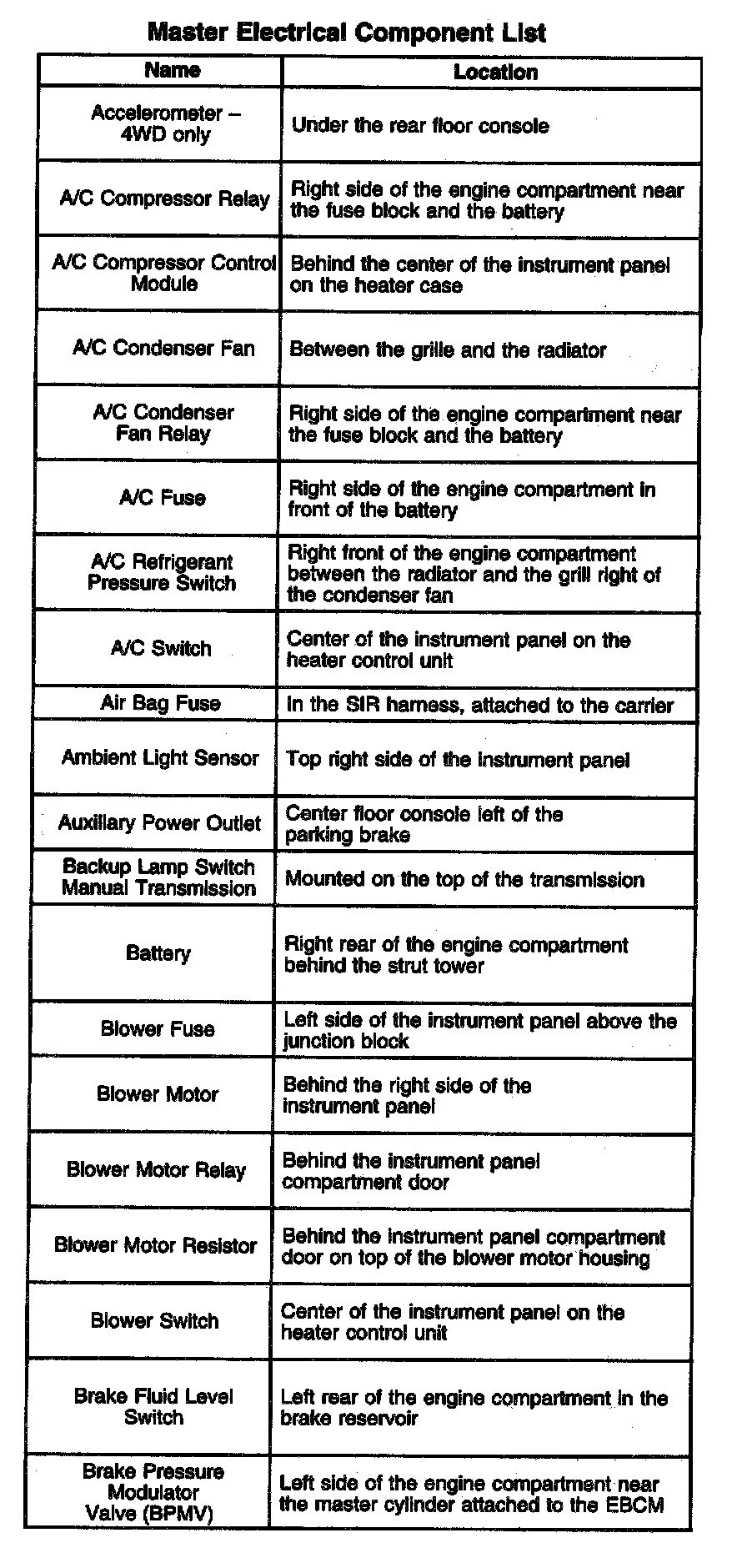

Accelerometer - 4WD Only - Brake Pressure Modulator Valve (BPMV):

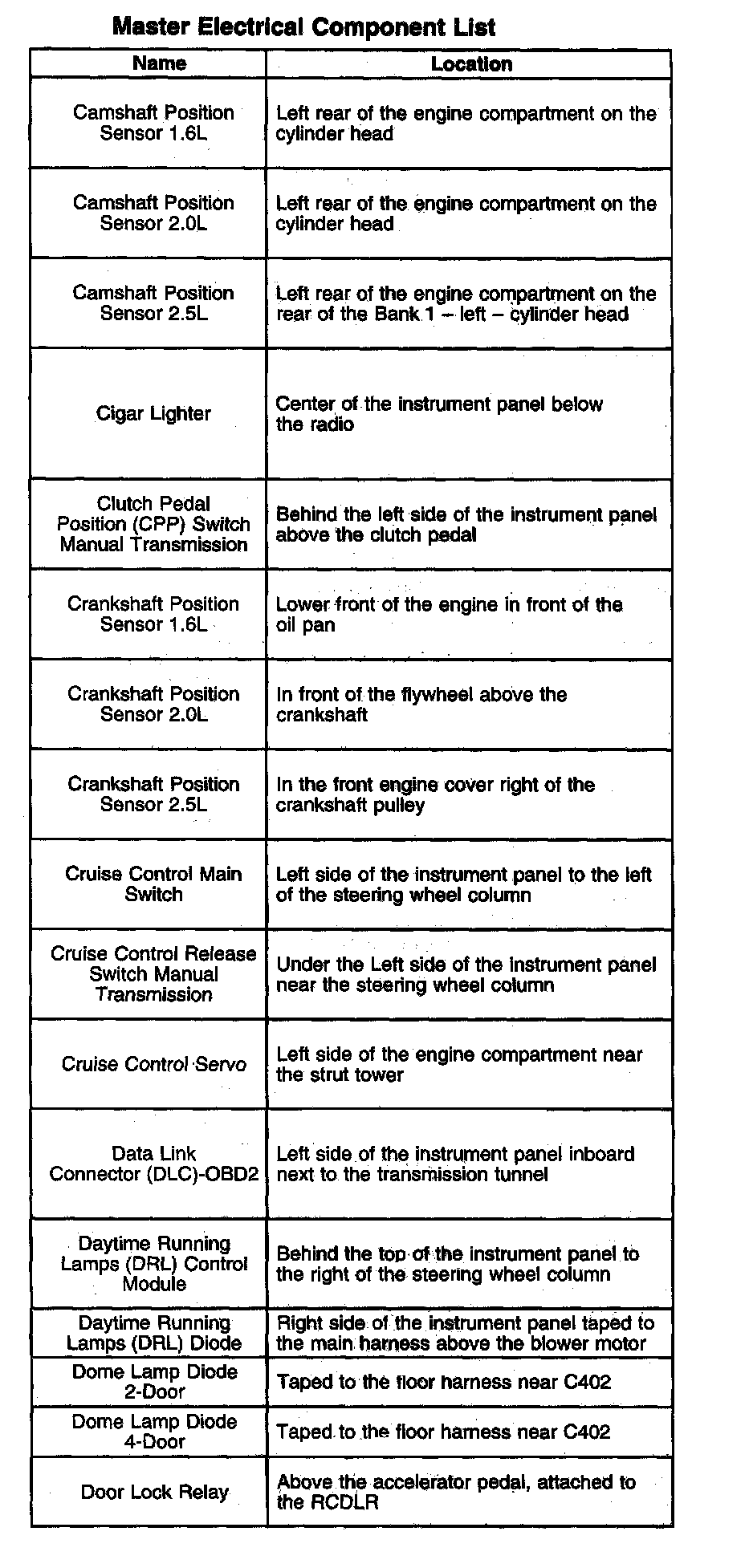

Camshaft Position Sensor 1.6L - Door Lock Relay:

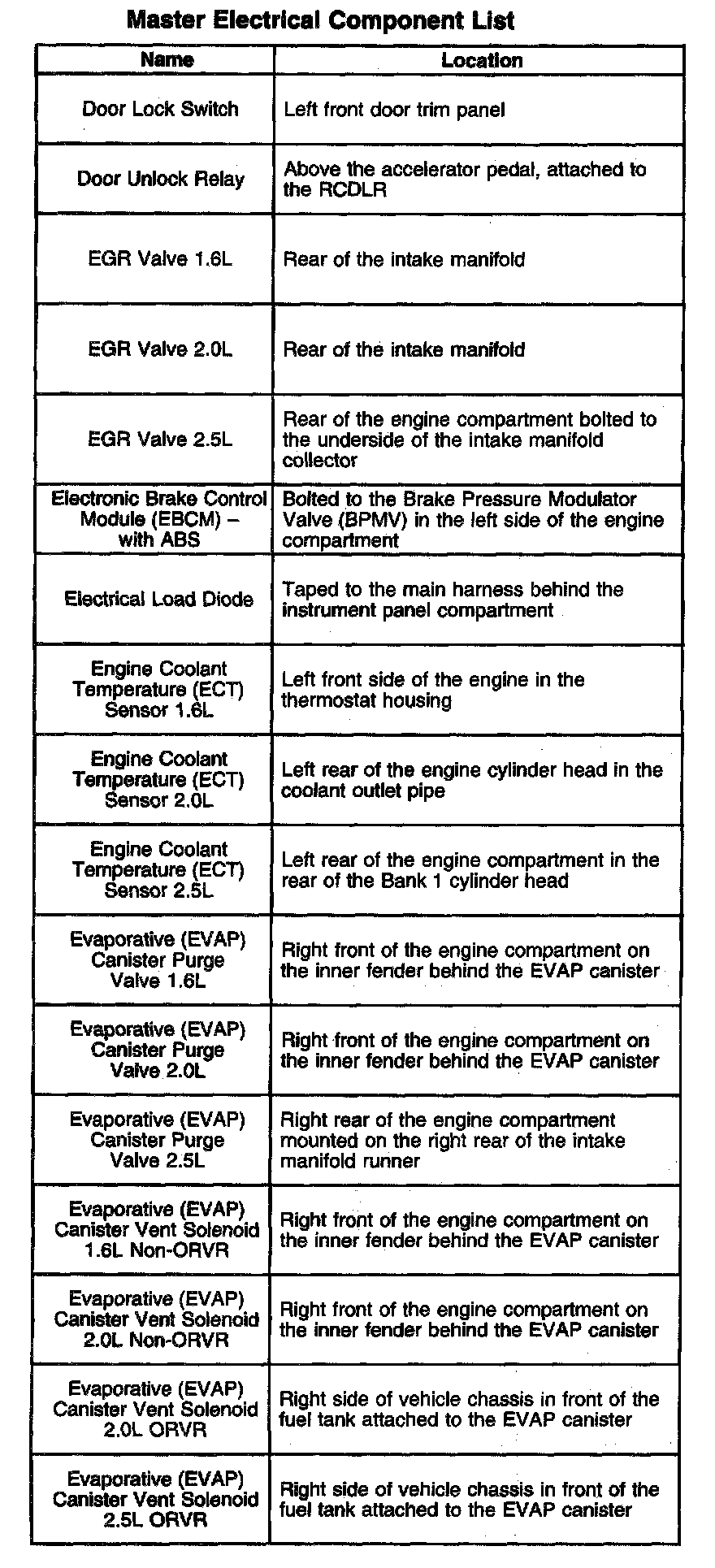

Door Lock Switch - Evaporative (EVAP) Canister Vent Solenoid 2.5L ORVR:

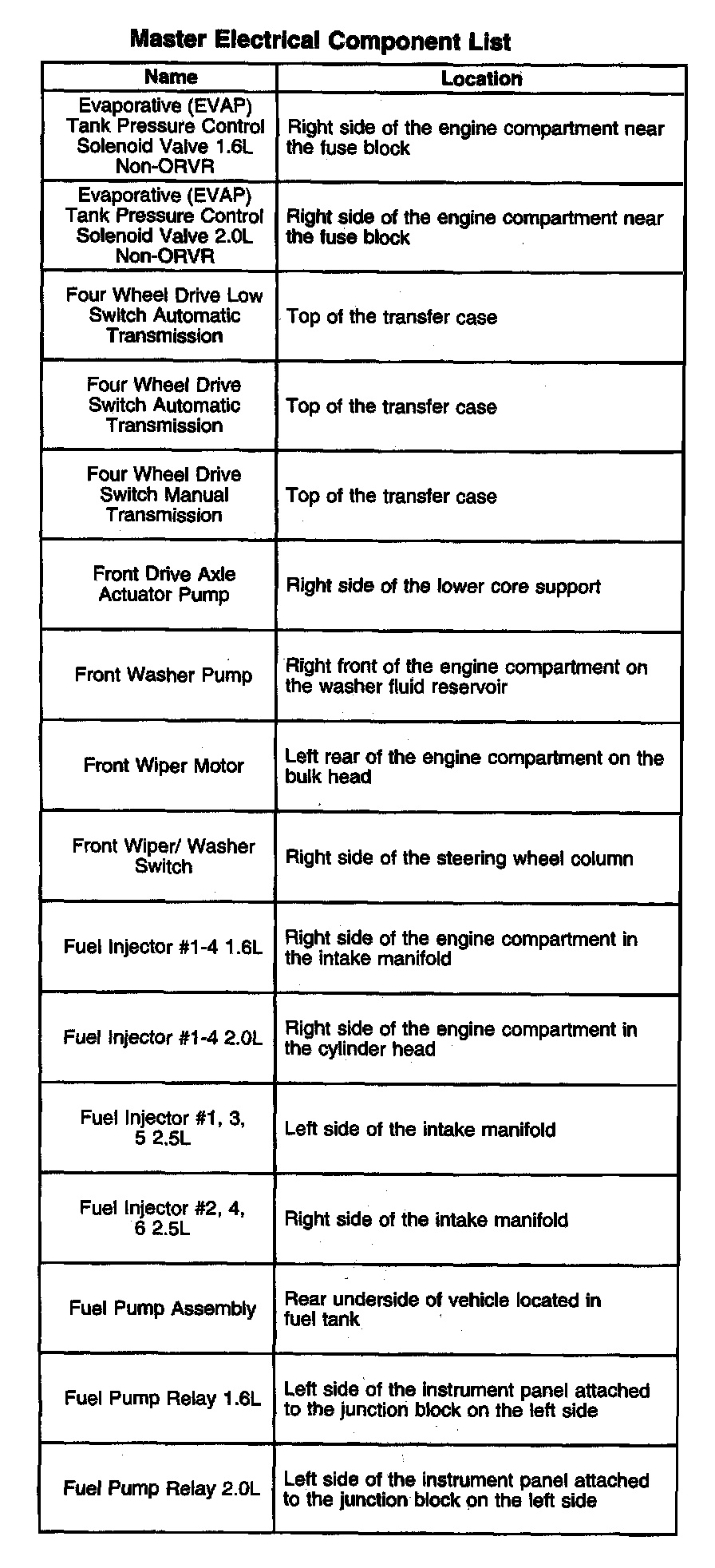

Evaporative (EVAP) Tank Pressure Control Solenoid Valve 1.6L Non-ORVR - Fuel Pump Relay 2.0L:

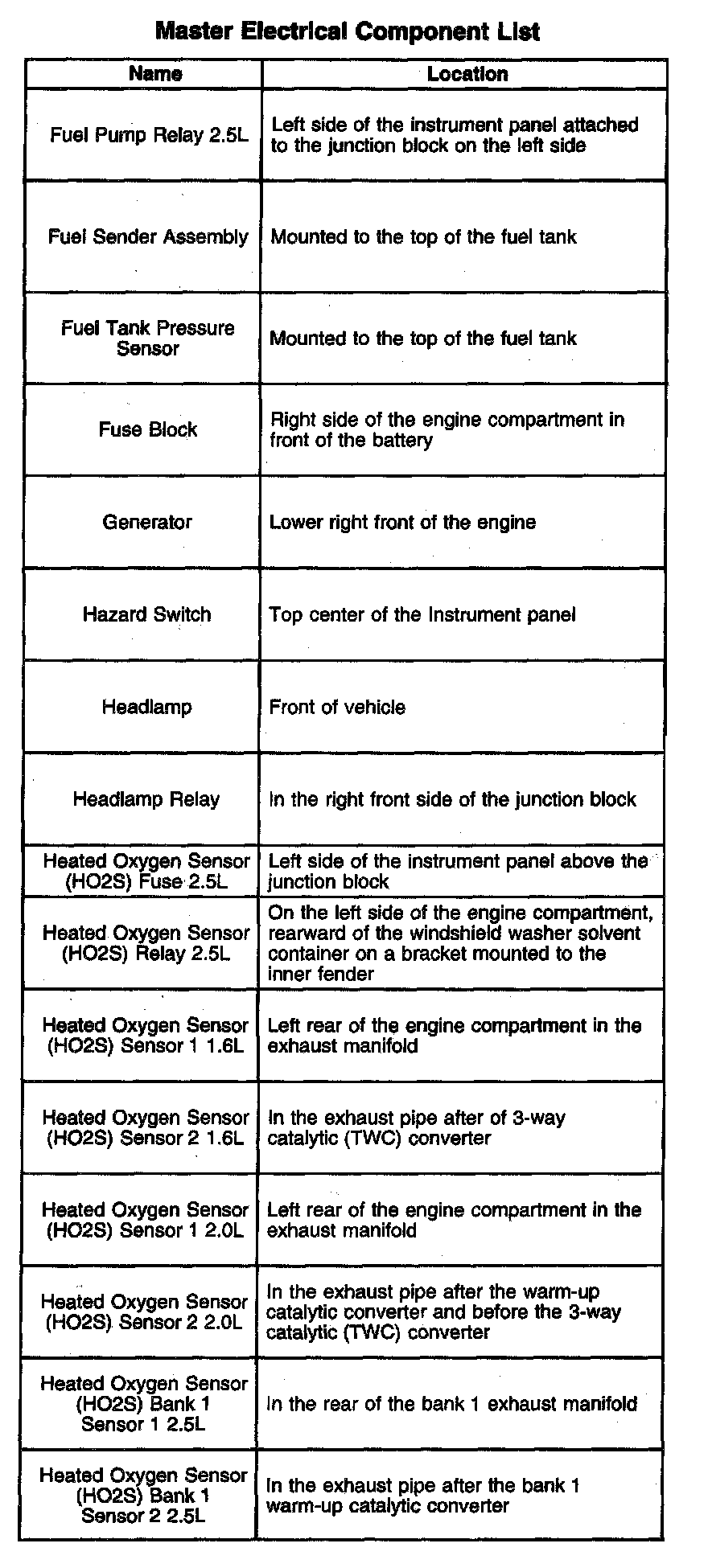

Fuel Pump Relay 2.5L - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2 2.5L:

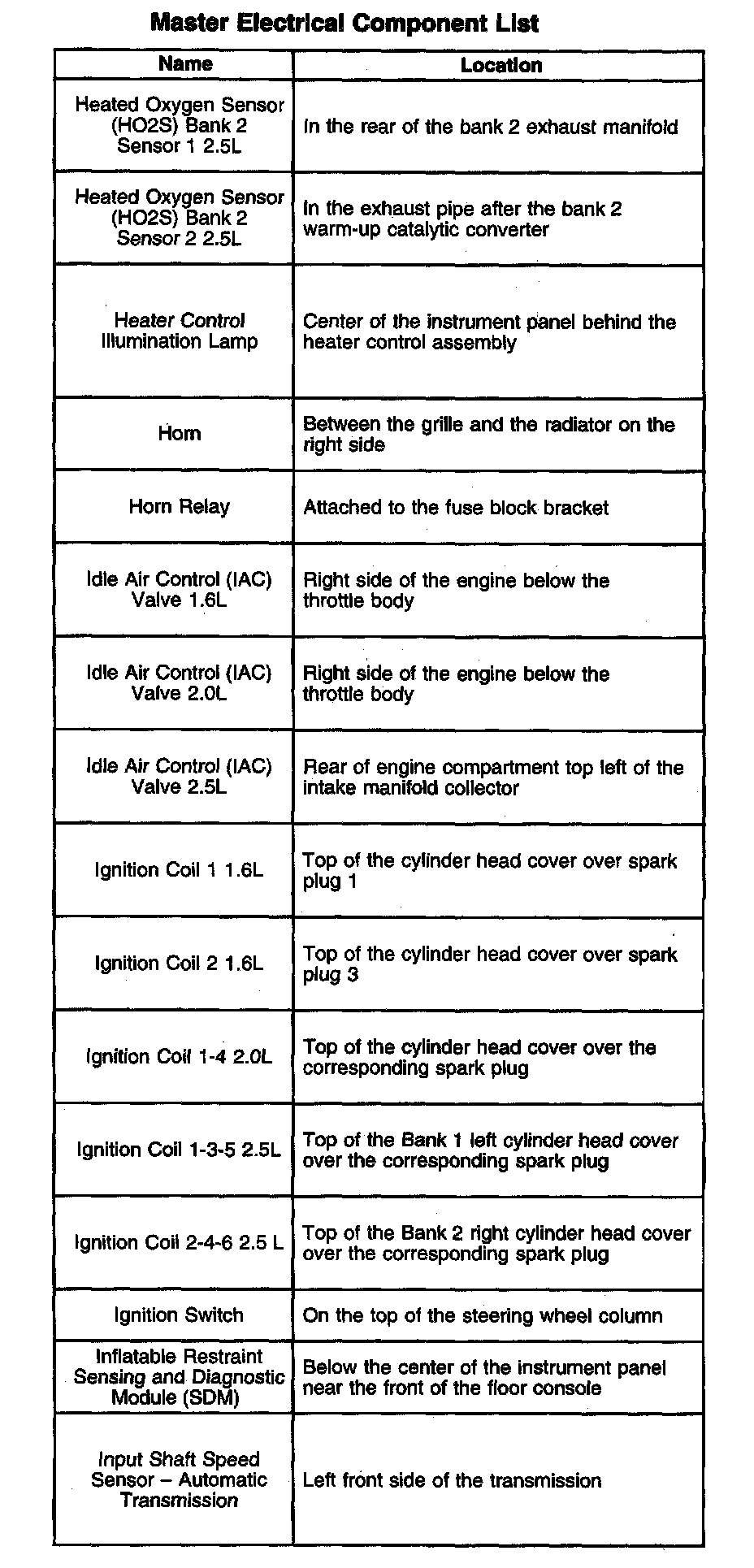

Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 2.5L - Input Shaft Speed Sensor - Automatic Transmission:

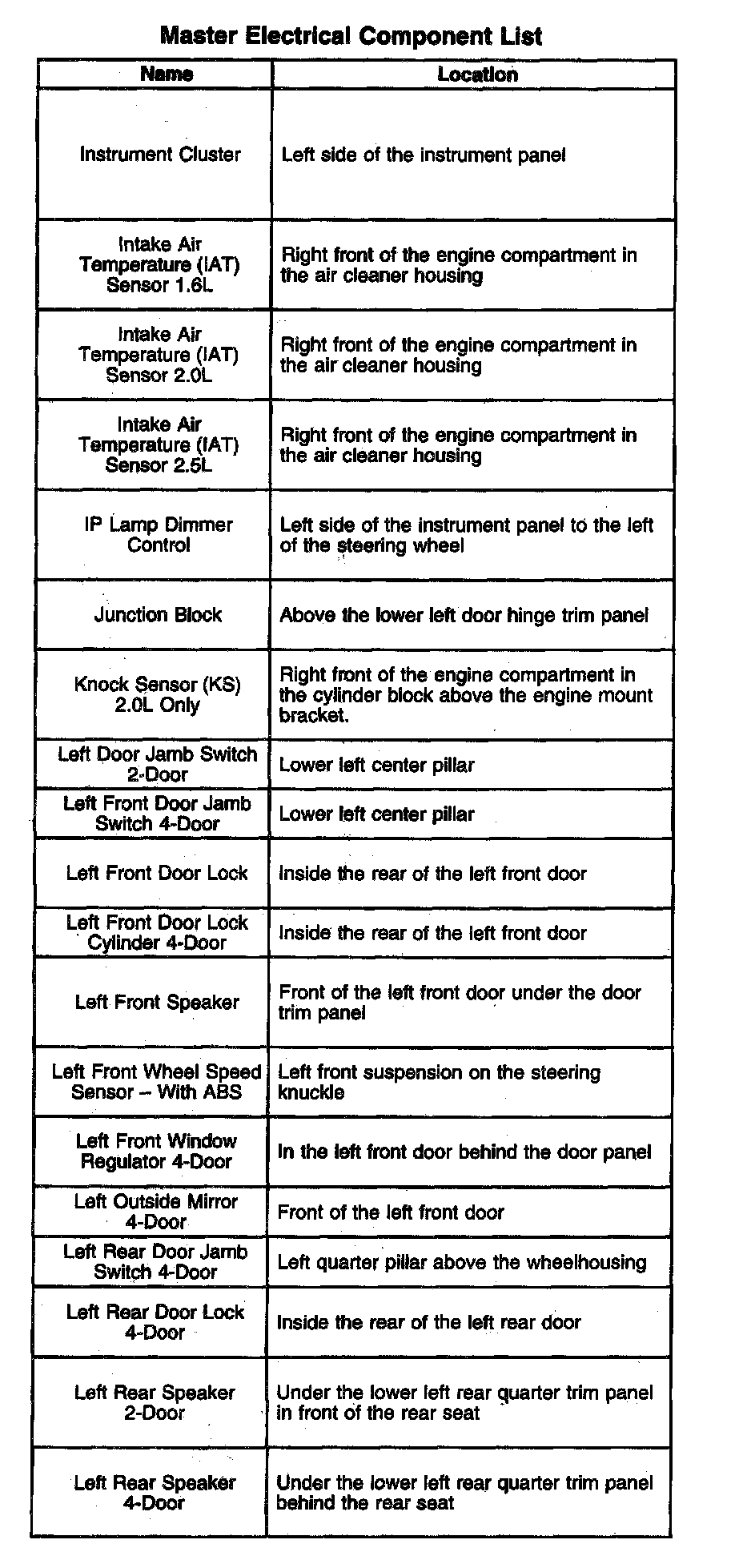

Instrument Cluster - Left Rear Speaker 4-Door:

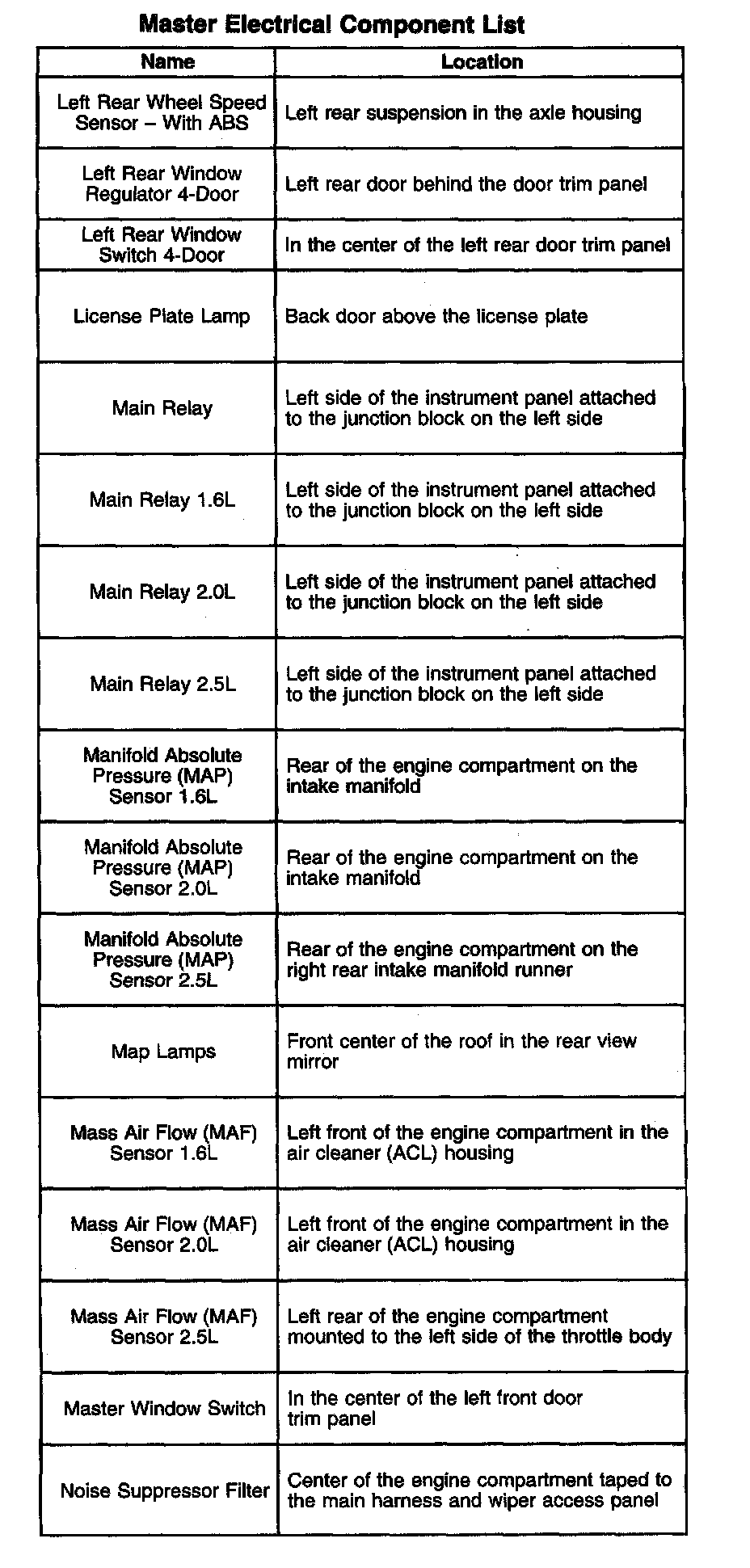

Left Rear Wheel Speed Sensor - With ABS - Noise Suppressor Filter:

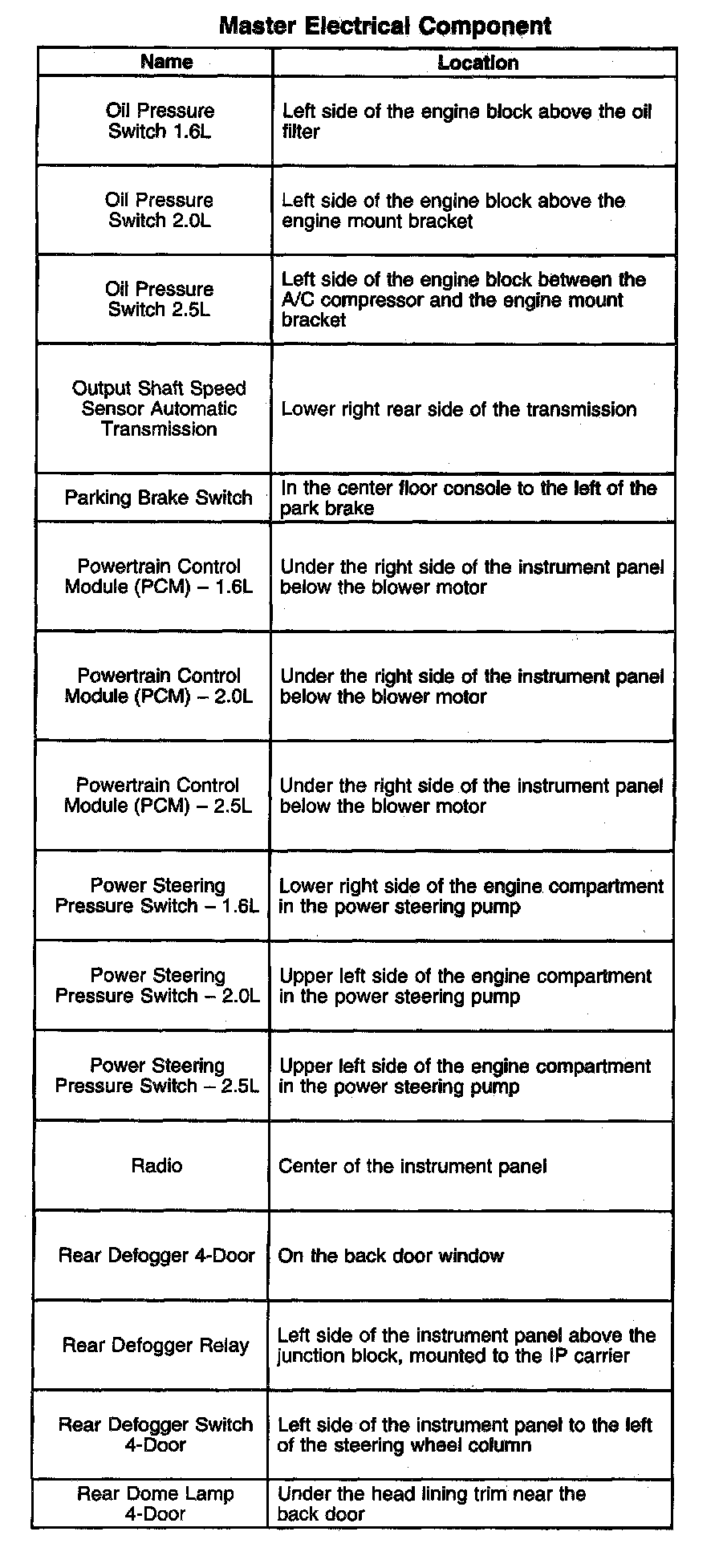

Oil Pressure Switch 1.6L - Rear Dome Lamp 4-Door:

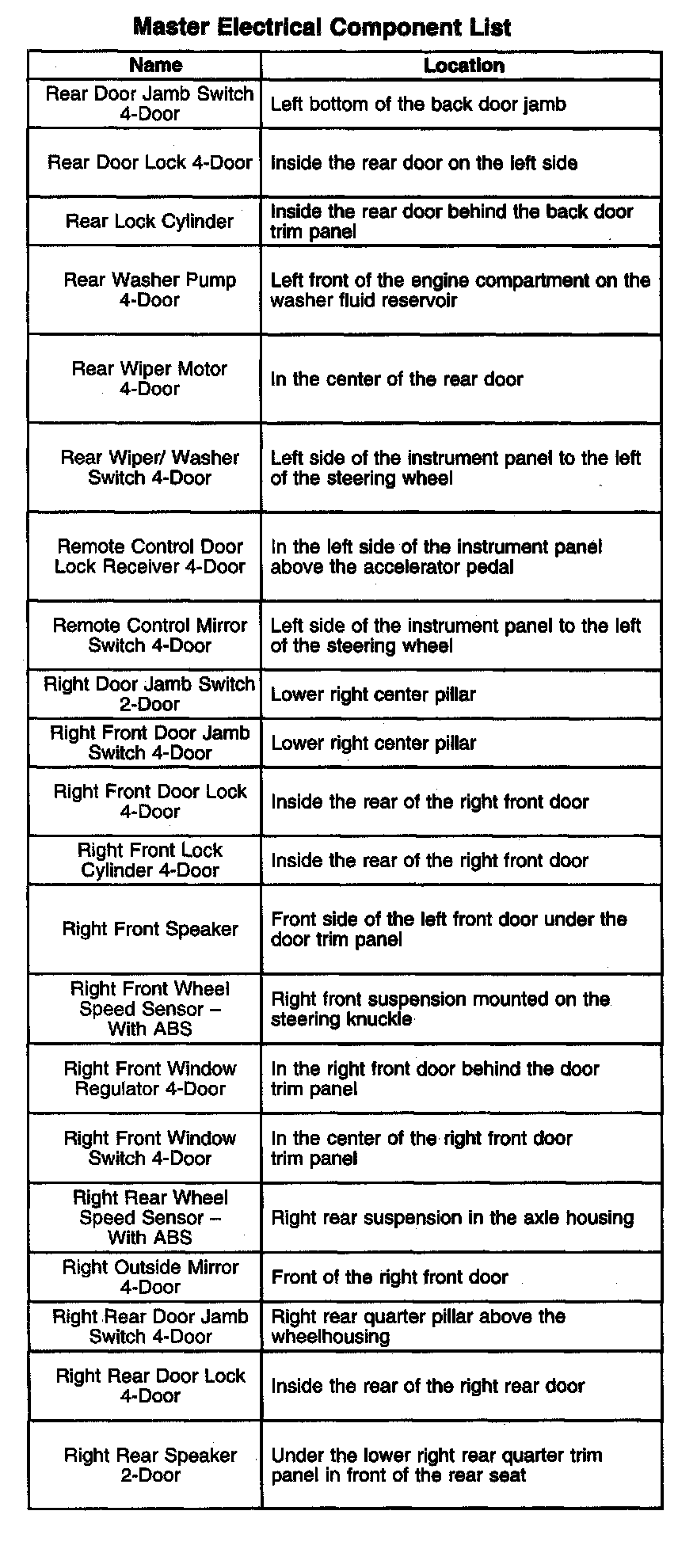

Rear Dome Jamb Switch 4-Door - Right Rear Speaker 2-Door:

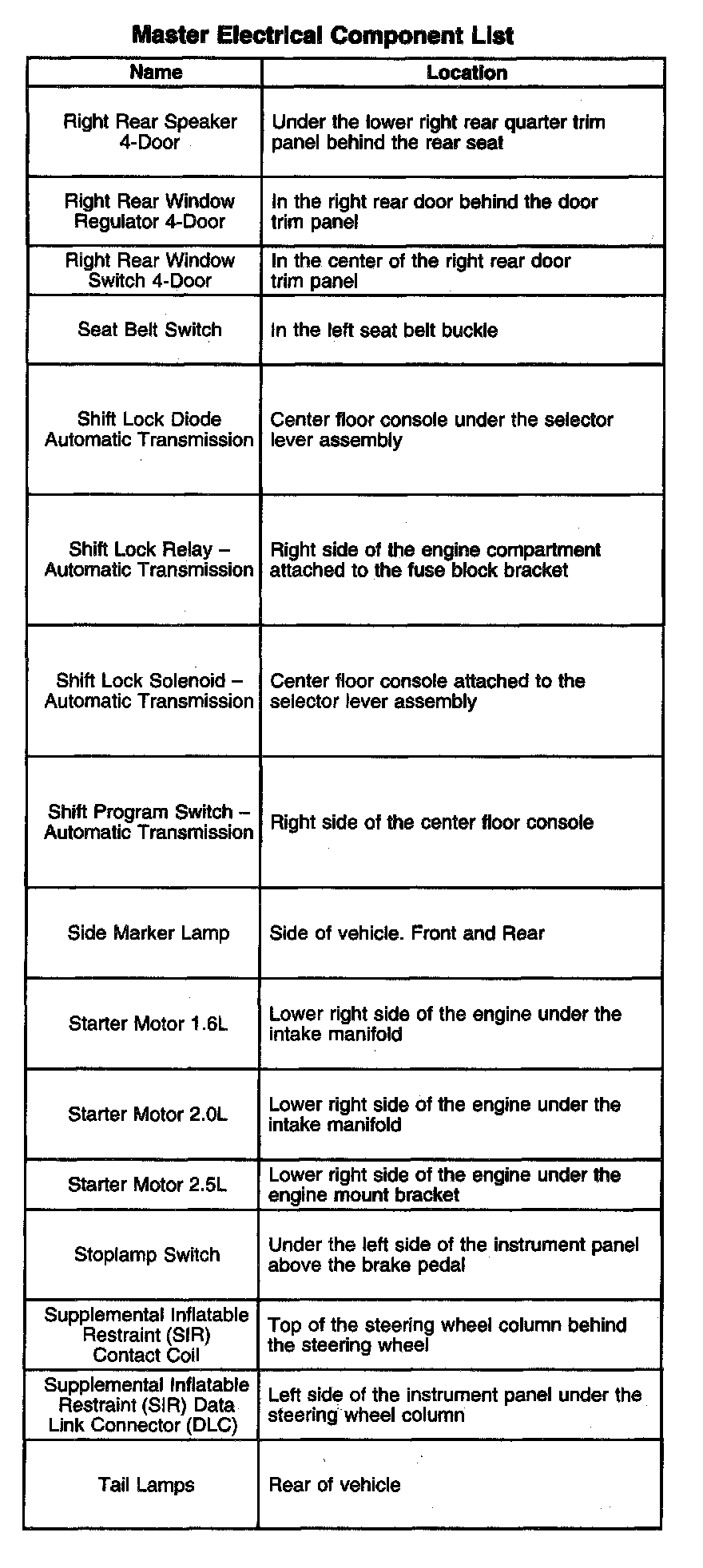

Right Rear Speaker 4-Door - Tail Lamps:

Throttle Position (TP) Sensor 1.6L - Vehicle Speed Sensor (VSS):
