Grille: Service and Repair

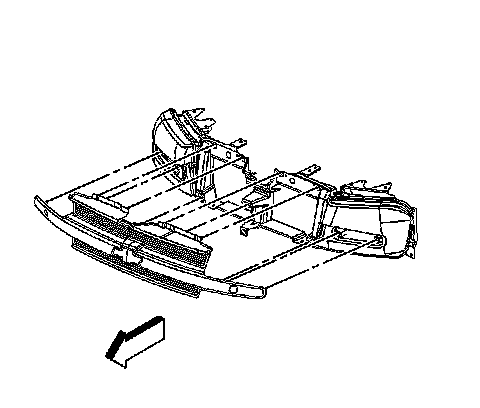

Grille Replacement (Chevrolet)Removal Procedure 1.
Use a flat-bladed tool in order to release the clips that retain the
grille to the headlamp panel.
2.
Remove the
grille from the vehicle.
Installation Procedure 1.
Install the
grille to the vehicle.
2.
Align the retaining clips on the
grille with the slots in the headlamp panel assembly.
3.
Fully install the retaining clips into the headlamp panel.
