Actuator Control Module Replacement - PSD (With RPO E59)

REMOVAL PROCEDURE




1. Remove the left rear quartet lower trim panel.

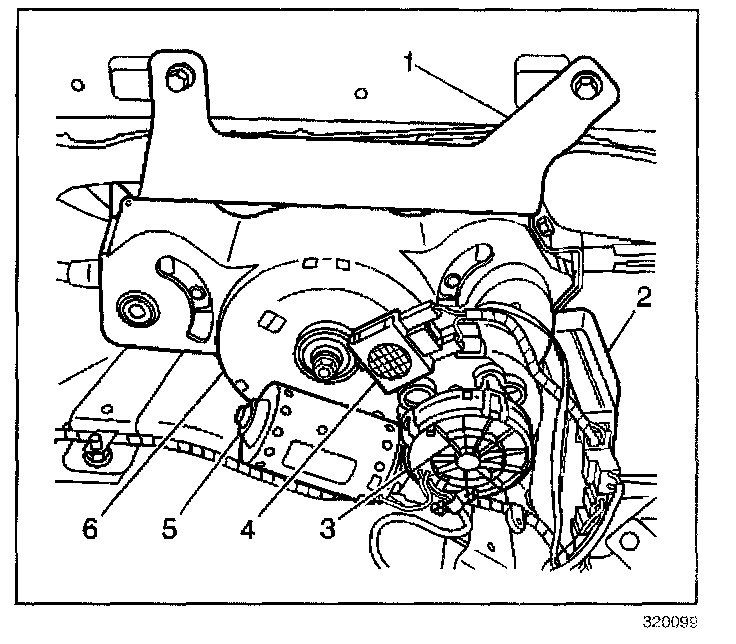

2. Disconnect the electrical connectors from the power sliding door (PSD) actuator control module (2).
3. Pull the PSD actuator control module (2) inboard in order to unhook the control module from the actuator motor.

INSTALLATION PROCEDURE

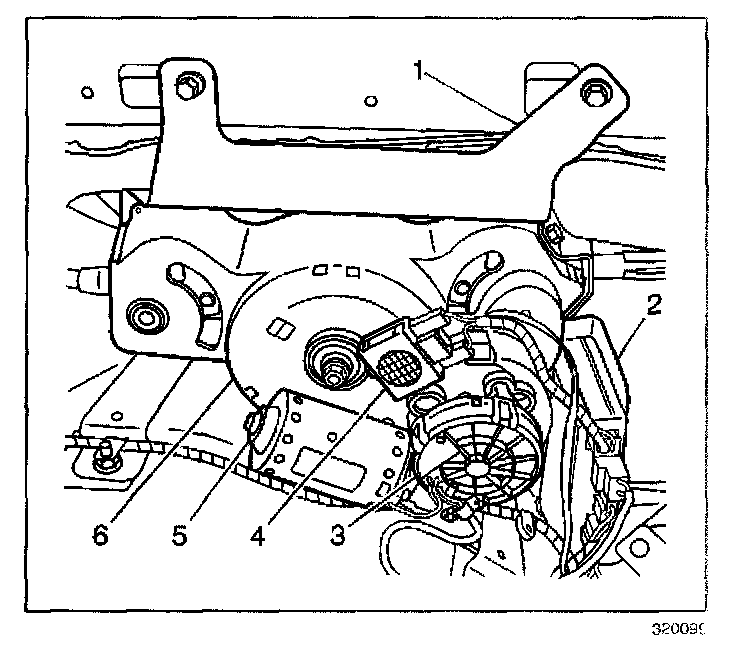

1. Push the PSD actuator control module (2) outboard in order to unhook the control module from the actuator motor.
2. Install the PSD actuator control module electrical connectors.
3. Perform the reinitialization procedure. Power Sliding Door (PSD) - Re-Initialization
4. Install the left rear quarter louver trim panel.

For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application and ID.
