Inflatable Restraint Front End Discriminating SEN Replacement

REMOVAL PROCEDURE




1. Disable the SIR system. Refer to Air Bag(s) Arming and Disarming.
2. Remove the connector-position assurance (CPA) from the electrical connector on the front end discriminating sensor.

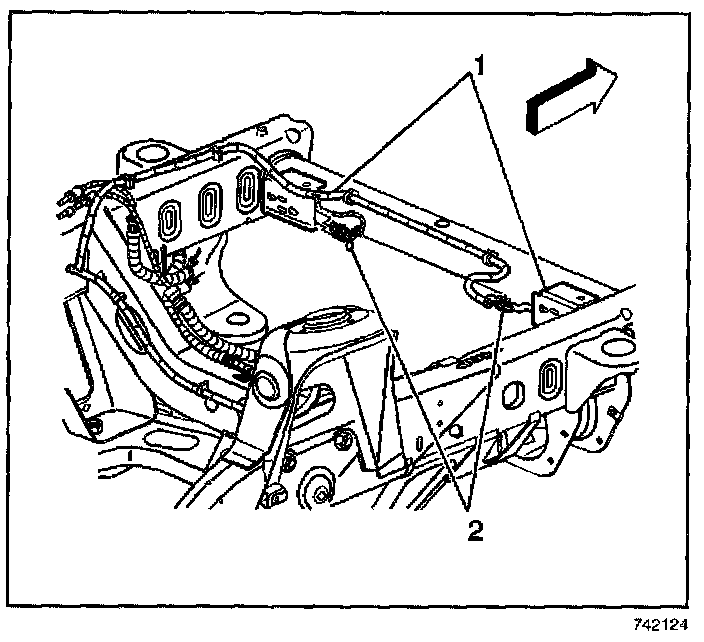

3. Disconnect the front end discriminating sensor electrical connector (2) from the front end discriminating sensor.
4. Remove the 2 integral bolts that retain the front end discriminating sensor to the frame front cross member.
5. Remove the front end discriminating sensor from the vehicle.

INSTALLATION PROCEDURE




1. Install the front end discriminating sensor to the vehicle.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the 2 integral bolts that retain the front end discriminating sensor to the frame front crossmember.

Tighten
Tighten the bolts to 8 N.m (71 lb in).

3. Connect the sensor electrical connector (2) to the front end discriminating sensor.
4. Install the CPA to the sensor electrical connector.
5. Enable the SIR system. Refer to Air Bag(s) Arming and Disarming.
