Valve Body, A/T

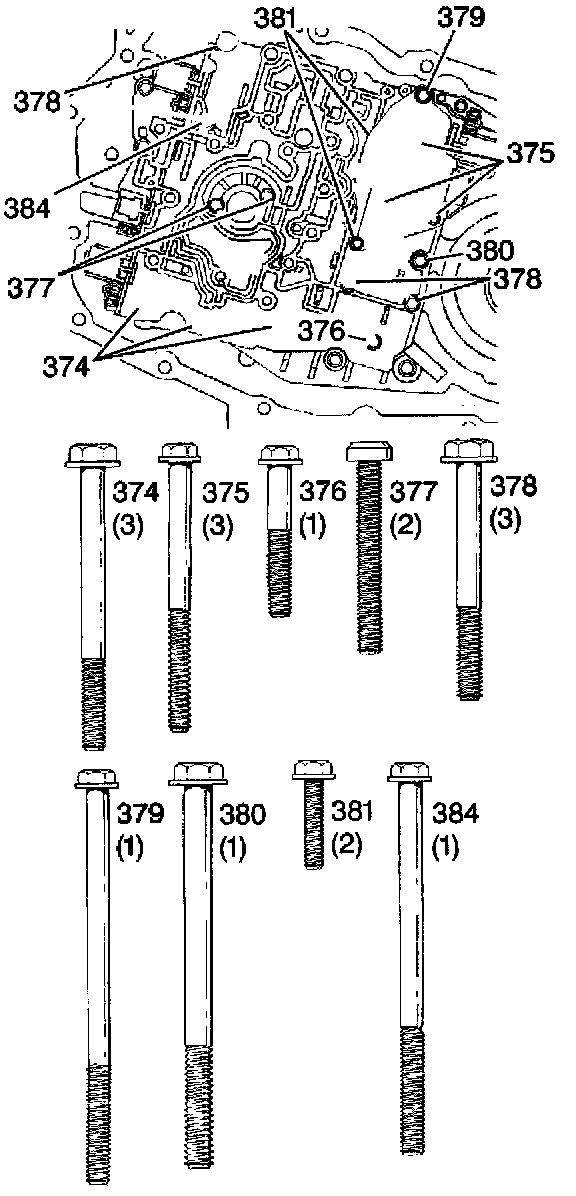

Install the valve body bolts (374, 381, 384).
^ Tighten the M6 X 1.0 X 20 bolt to 8 Nm (70 inch lbs.).
^ Tighten the M6 X 1.0 X 45 bolt to 12 Nm (106 inch lbs.).
^ Tighten the M6 X 1.0 X 55 bolt to 12 Nm (106 inch lbs.).
^ Tighten the M6 X 1.0 X 60 bolt to 12 Nm (106 inch lbs.).
^ Tighten the M6 X 1.0 X 65 bolt to 12 Nm (106 inch lbs.).
^ Tighten the M6 X 1.0 X 85 bolt to 12 Nm (106 inch lbs.).
^ Tighten the M6 X 1.0 X 95 bolt to 16 Nm (12 ft. lbs.).
^ Tighten the M8 X 1.25 X 90 bolt to 25 Nm (18 ft. lbs.).
