Radiator Drain Plug

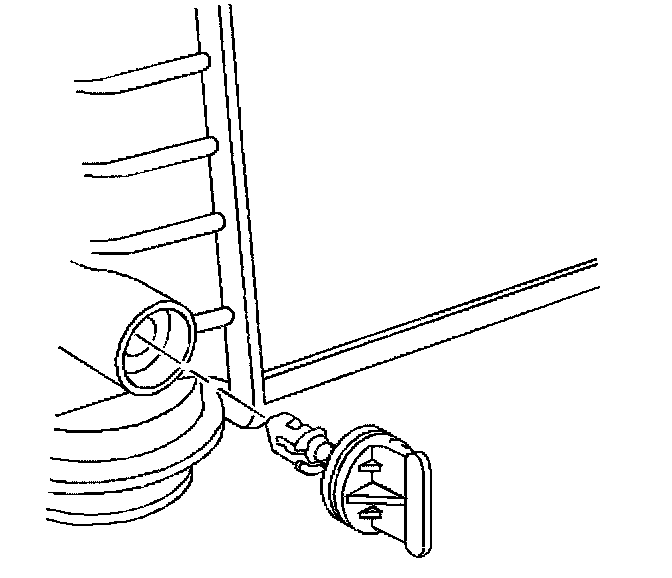

Drain Cock Replacement Removal Procedure 1.
Raise the vehicle. Refer to Vehicle Lifting.
2.
Drain the coolant.
3.
Pull the stem out of the radiator body.
4.
Clean or replace the seal and the stem as necessary.
Installation Procedure 1.
Install the stem to the radiator body.
2.
Lower the vehicle.
3.
Fill the
cooling system.
