Case, Transfer Case

Case M10 Bolts 54 Nm (40 ft. lbs.)
Case M8 Bolts 28 Nm (21 ft. lbs.)
Transfer Case Lower Brace Bolts 47 Nm (35 ft. lbs.)
Transfer Case Side Brace Bolts 47 Nm (35 ft. lbs.)

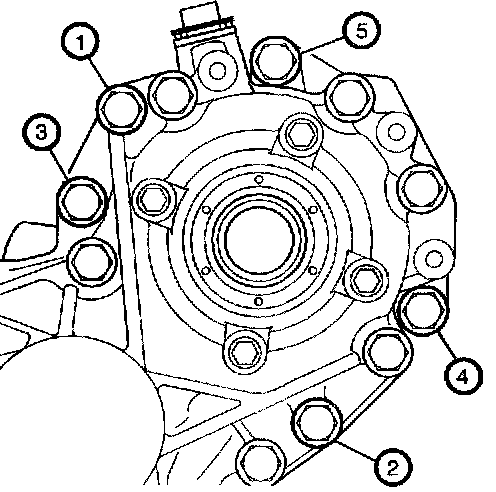

Transfer Case-to-Transaxle Bolts (In Sequence)
Transfer Case-to-Transaxle Bolts (1, 2) First Pass 35 Nm (26 ft. lbs.)
Transfer Case-to-Transaxle Bolts (1, 2) Final Pass Additional 160 Degrees
Transfer Case-to-Transaxle Bolt (3) First Pass 35 Nm (26 ft. lbs.)
Transfer Case-to-Transaxle Bolt (3) Final Pass Additional 70 Degrees
Transfer Case-to-Transaxle Bolts (4, 5) 40 Nm (30 ft. lbs.)
