Electronic Column Lock Module - Disassemble

Electronic Column Lock Module - Disassemble - Off Vehicle

Caution: Refer to SIR Caution in Service Precautions.





1. Disable the inflatable restraint steering wheel module.
2. Remove the steering column from the vehicle.
3. Remove the steering column tilt head housing.
4. Remove the ignition and key alarm switch assembly.

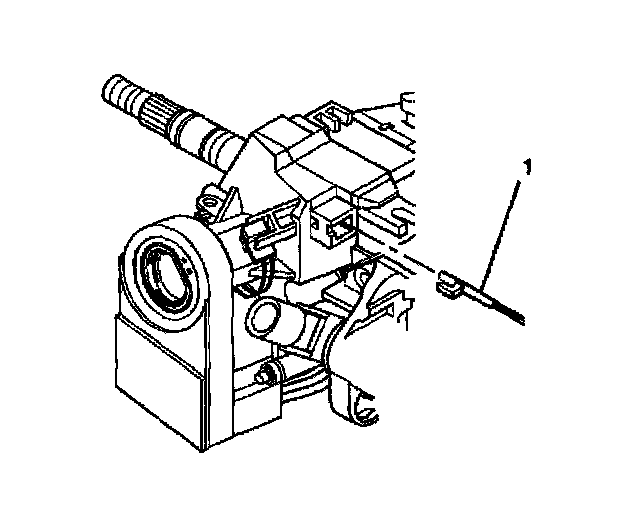

5. Disconnect the park lock cable assembly (1).
The lock cylinder should be in the OFF-LOCK position.
6. Insert a small screwdriver into the slot on the electronic lock module assembly and push against the locking tab to remove.

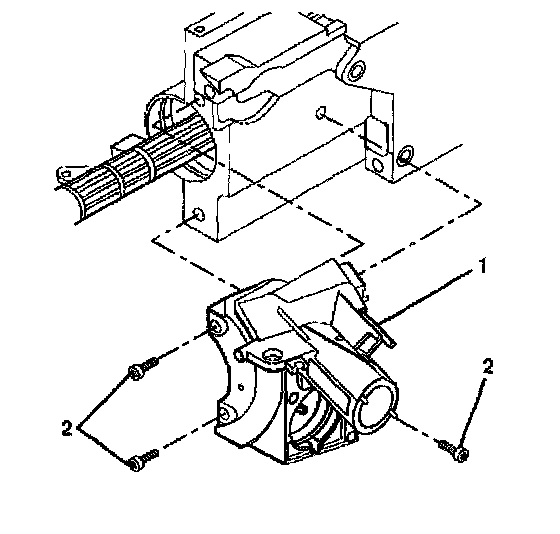

7. Remove the 3 pan head tapping screws (2) from the electronic lock module assembly (1).
8. Remove the electronic lock module assembly (1).
