Scuff Plate: Service and Repair

COMPARTMENT SILL PLATE REPLACEMENT - REAR

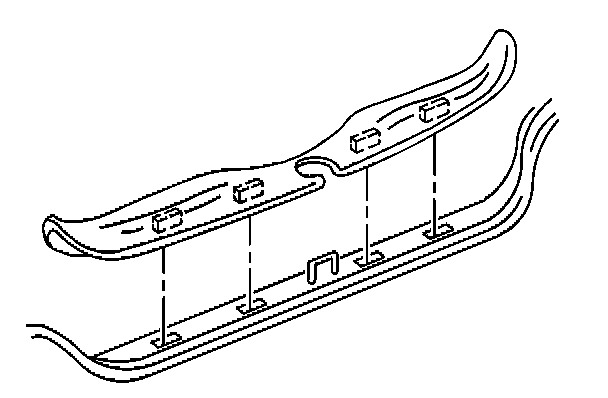

REMOVAL PROCEDURE

1. Open the rear compartment.
2. Lift up from the inside edge of the sill trim plate in order to release the retainer.
3. Remove the rear compartment sill trim plate.

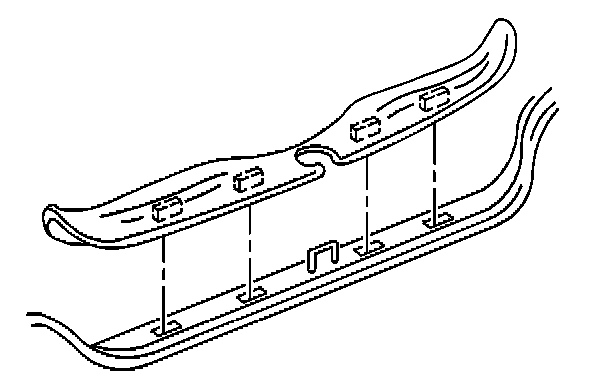

INSTALLATION PROCEDURE

1. Position the rear compartment sill trim plate to the slots in the rear body panel.
2. Install the rear compartment sill plate pressing into place until fully seated.
3. Close the rear compartment.
