Seat Back Frame Replacement - Front With RPO Code AJ7

SEAT BACK FRAME REPLACEMENT - FRONT WITH RPO CODE AJ7

REMOVAL PROCEDURE




1. Disable the SIR system.
2. Remove the front bucket seat.
3. Remove the seat back cover and pad.

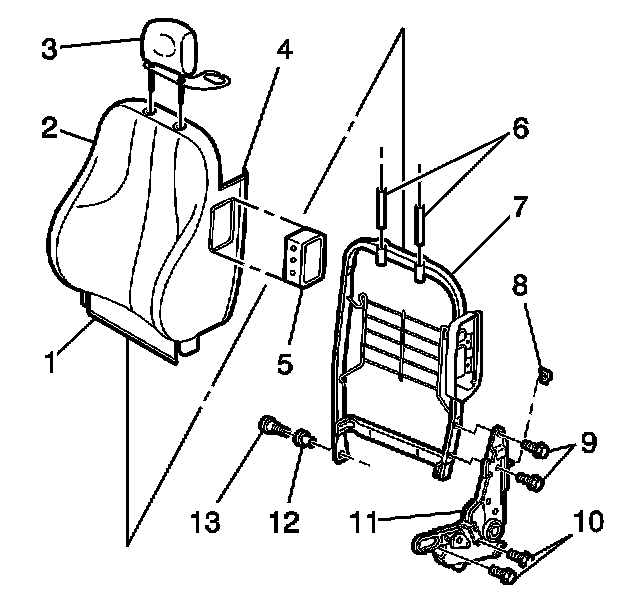

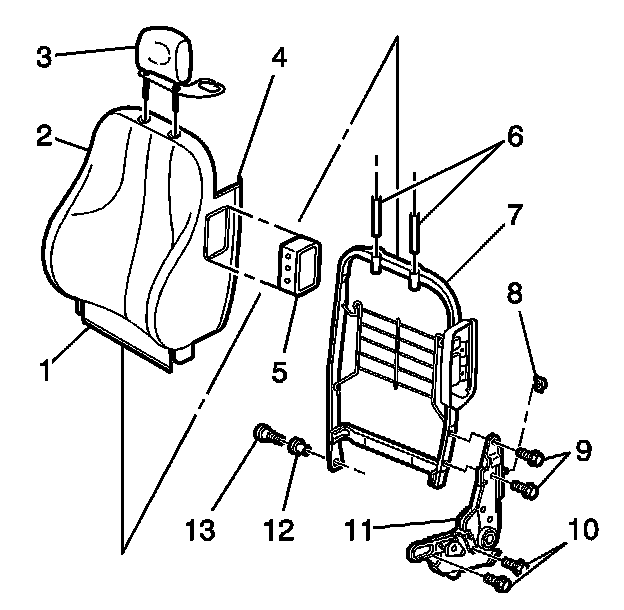

4. Remove the head restraint guides (6) from the seat back frame (7).
5. Unfasten the wire harness for the inflatable restraint module.
6. Remove the recliner bolts (9).
7. Remove the pivot bolt (13).
8. Remove the seat back frame (7) from the recliner (11).

INSTALLATION PROCEDURE




1. Install the seat back frame (7) to the recliner (11).
2. Install the recliner bolts (9).

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the bolts to 20 N.m (15 lb ft).

3. Install the pivot bolt (13).

Tighten
Tighten the bolts to 20 N.m (15 lb ft).

4. Fasten the wire harness for the inflatable restraint module.
5. Install the head restraint guides (6) from the seat back frame (7).
6. Install the seat back cover and pad.
7. Install the front bucket seat.
8. Enable the SIR system.
