Procedures

SUNROOF SEAL/MOLDING REPLACEMENT

REMOVAL PROCEDURE
1. Remove the sunroof window.

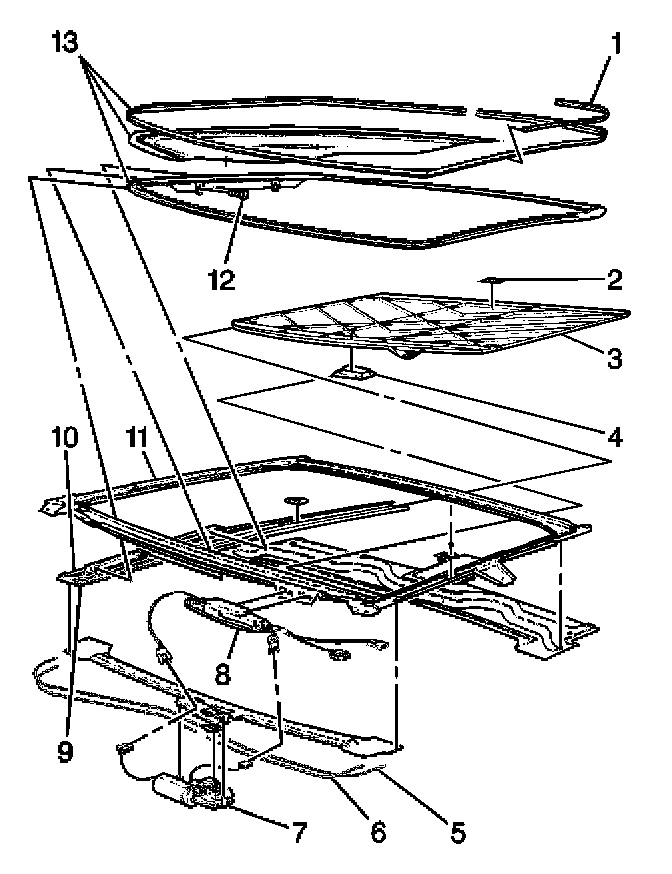

2. Remove the weatherstrip by pulling the weatherstrip (1) away from the glass panel.

INSTALLATION PROCEDURE
1. Align the butt joint with the center of the sunroof window on the passenger side of the vehicle.

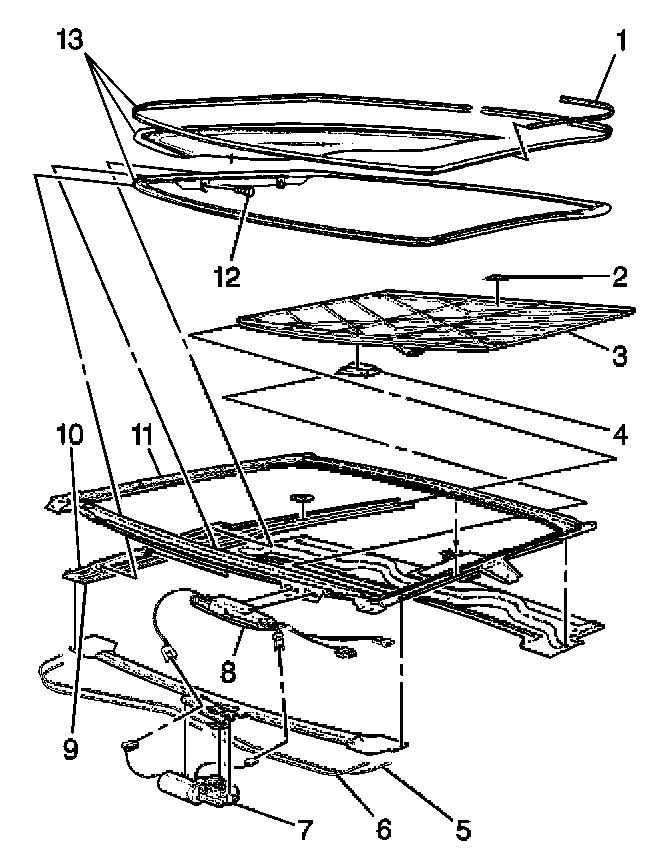

2. Work the weatherstrip into the channel in the glass panel frame. Continue to work the weatherstrip (1) until the weatherstrip is firmly press fit into the channel. Install the weatherstrip around the entire sunroof glass panel.
3. Install the sunroof window.
