Deflector Replacement - Instrumental Panel Air

REMOVAL PROCEDURE

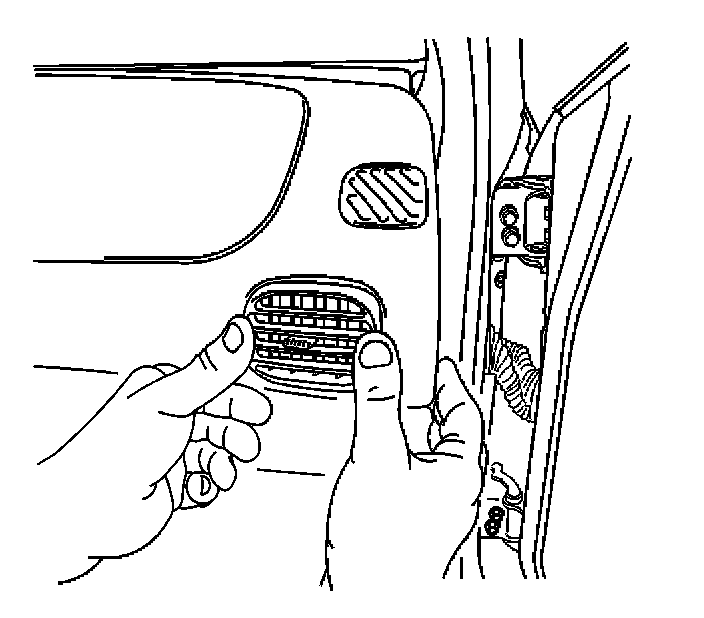

1. Grasp the center of the air deflector outlet.

IMPORTANT: The instrument panel (I/P) trim pad should be at room temperature before removal of the air I/P outlet deflector. This will allow the I/P trim pad to be more pliable during removal of the air deflector outlet.

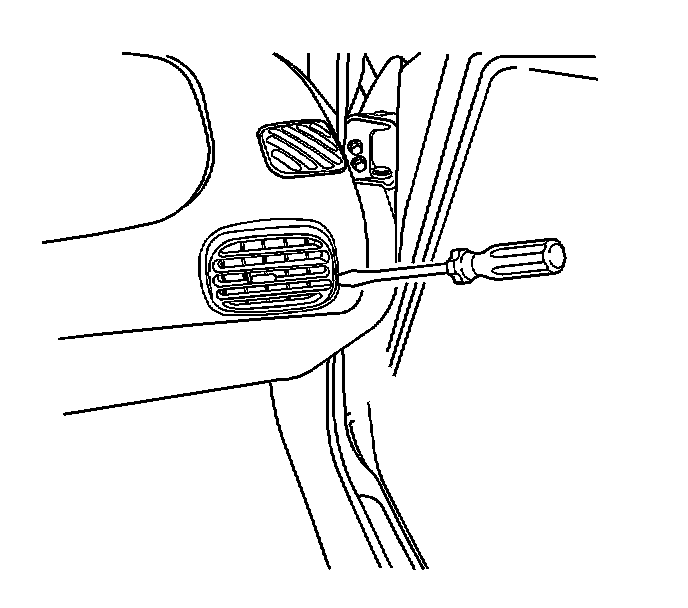

2. Position the tip of a flat-bladed tool between the air deflector housing and the air deflector outlet.
With the tip of the flat-bladed tool, gently push the outlet outward from the housing disengaging the retainer.

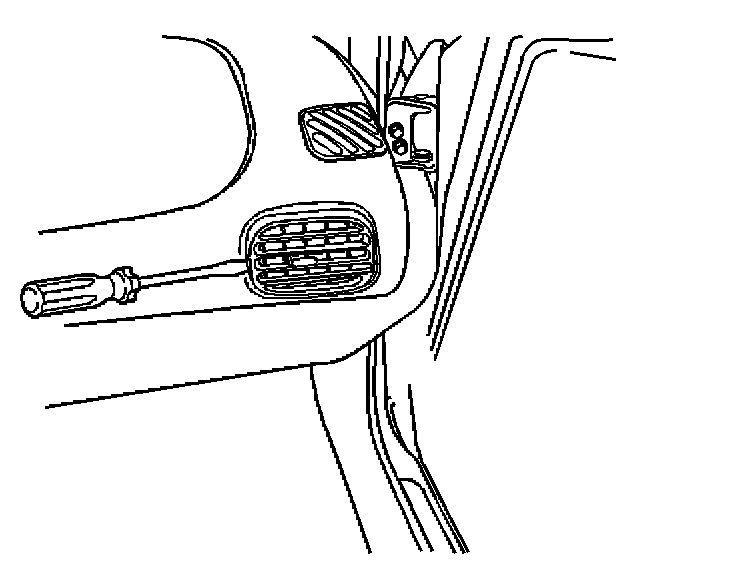

3. On the opposite side of the deflector, position the tip of a flat-bladed tool between the air deflector housing and the air deflector outlet.
With the tip of the flat-bladed tool, gently push the outlet outward from the housing disengaging the retainer.

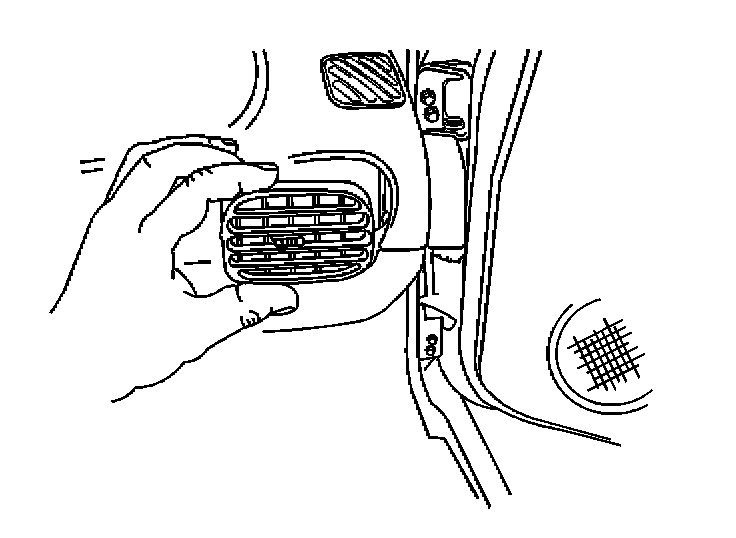

4. Remove the air deflector outlet from the housing in the I/P.

INSTALLATION PROCEDURE
1. Position the air deflector outlet into the housing in the I/P.




2. Press the air outlet deflector into the housing until fully engaged.
3. Inspect the air deflector outlet for proper movement.
