Body and Frame: Locations

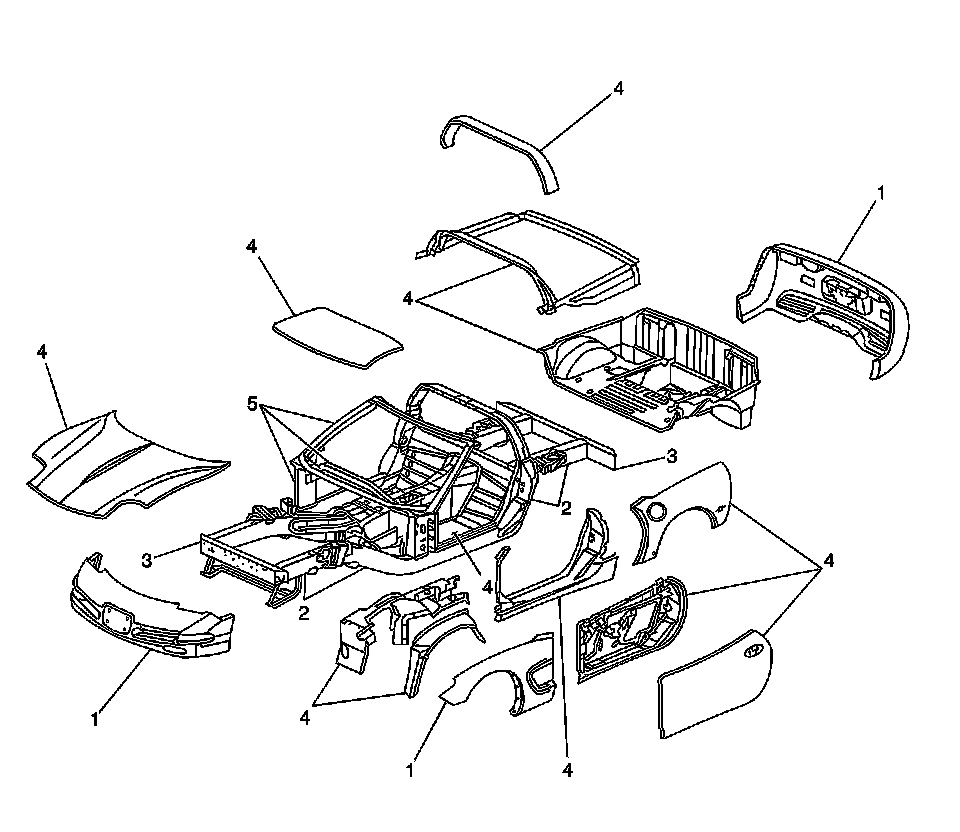

Panel Identification

1 - RRIM (Reinforced Reaction Injection Molded)
2 - TSGS (Two Sided Galvanized Steel)
3 - UHSS (Ultra High Strength Steel)
4 - SMC (Sheet Molded Compound)
5 - AL (Aluminum)
