Frame Contact Hoist

VEHICLE LIFTING - FRAME CONTACT HOIST

TOOLS REQUIRED
J 43625 Lift Pad Adapter

FRONT HOIST PADS

IMPORTANT: The front hoist pads must not contact the rocker panels, the front fenders, or the floor pan.

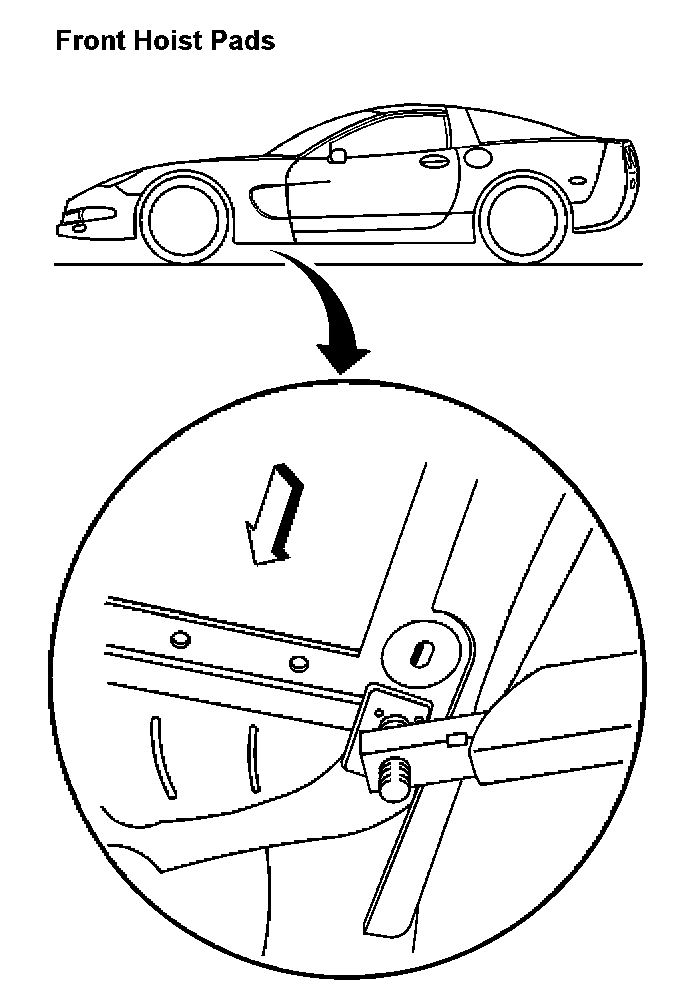

Front Hoist Pads:






Position the (frame contact) front hoist pads as follows:
- Under or immediately forward of the front frame rail shipping slot reinforcements.
- The long sides of the hoist pads parallel to the frame rails.


REAR HOIST PADS

IMPORTANT: The rear hoist pads must not contact the rocker panels to the outside of the frame rail shipping slot reinforcements. The rear hoist pads must not contact the floor pan.

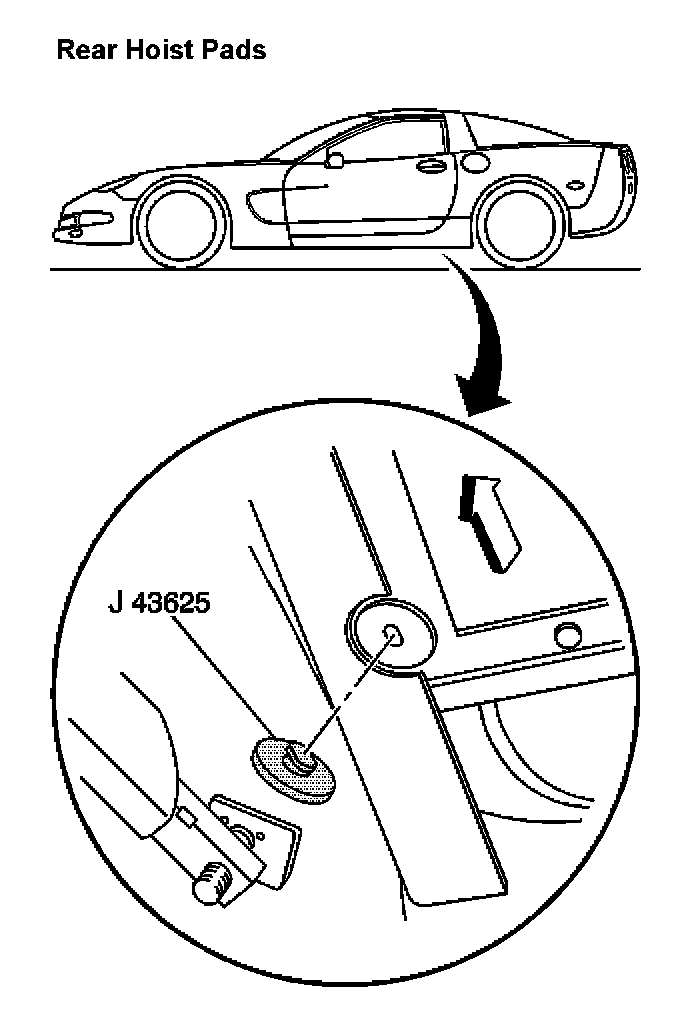

Rear Hoist Pads:






Install the J 43625 into the rear frame rail shipping slots, lock into place and position the rear hoist pads as follows:
- Under the J 43625.
- The long sides of the hoist pads perpendicular to the J 43625.
