Radiator Support: Service and Repair

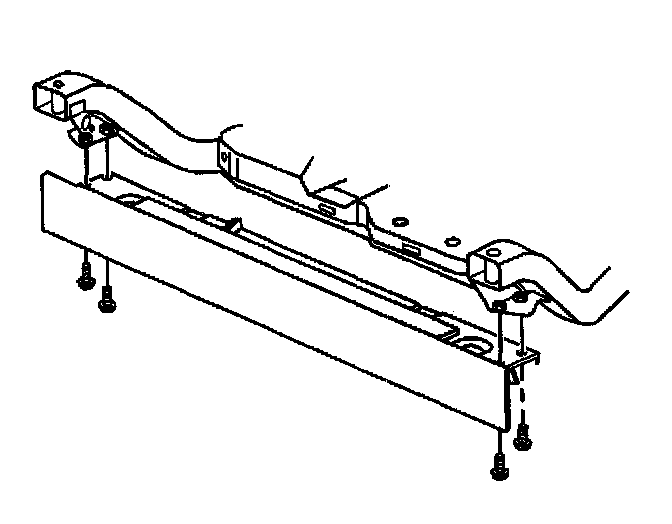

Radiator Support Replacement

Removal Procedure





1. Support the radiator and the condenser assembly.
2. Raise the vehicle on a hoist. Refer to Vehicle Lifting.
3. Remove the close out panel.
4. Remove the transmission cooler lines from the retaining clips.
5. Remove the lower radiator mounting panel bolts.
6. Remove the lower radiator mounting panel from the vehicle.

Installation Procedure





1. Install the lower radiator mounting panel to the vehicle.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the lower radiator mounting panel bolts.
^ Tighten the lower radiator mounting panel bolts to 10 Nm (89 inch lbs.).
3. Install the transmission cooler lines to the retaining clips.
4. Install the close out panel.
5. Lower the vehicle.
6. Remove radiator support.
