Fuel Filter: Service and Repair

REMOVAL PROCEDURE

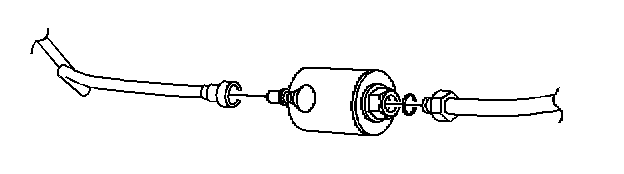

IMPORTANT:
- Always maintain cleanliness when servicing fuel system components.
- There is no service interval for fuel filter replacement. Only replace a restricted fuel filter.

1. Relieve fuel system pressure. Refer to Fuel Pressure Relief Procedure.
2. Raise the vehicle. Refer to Vehicle Lifting.




3. Disconnect the quick-connect fitting at the inlet of the fuel filter.
4. Disconnect the threaded fitting at the outlet of the fuel filter.
5. Drain any remaining fuel into an approved gasoline container.

INSTALLATION PROCEDURE
1. Remove protective caps from new filter.
2. Install a new O-ring.




3. Connect the quick-connect fitting at the inlet of the fuel filter.
4. Connect the threaded fitting at the outlet of the fuel filter.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Use a back-up wrench in order to prevent the fuel filter from turning. Tighten the fuel filter outlet nut to 27 N.m (20 lb ft).

5. Lower the vehicle.
6. Reconnect the negative battery cable.
7. Inspect for fuel leaks.
7.1. Turn ON the ignition for 2 seconds.
7.2. Turn OFF the ignition for 10 seconds.
7.3. Turn ON the ignition.
7.4. Inspect for fuel leaks.
