Cruise Control - Inoperative/Malfunctioning
CRUISE CONTROL INOPERATIVE/MALFUNCTIONINGDIAGNOSTIC AIDS
To avoid misdiagnosis, inspect for the following:
- Proper operation of brake lamps.
- Proper operation of the clutch system, if equipped with a manual transmission.
- The throttle linkage is not binding.
- The vehicle speed is greater than 40 km/h (25 mph).
- The system voltage is within 9-16 volts.
Electromagnetic interference on the vehicle speed sensor signal circuit may cause erratic cruise control operation.
TEST
Steps 1-2:

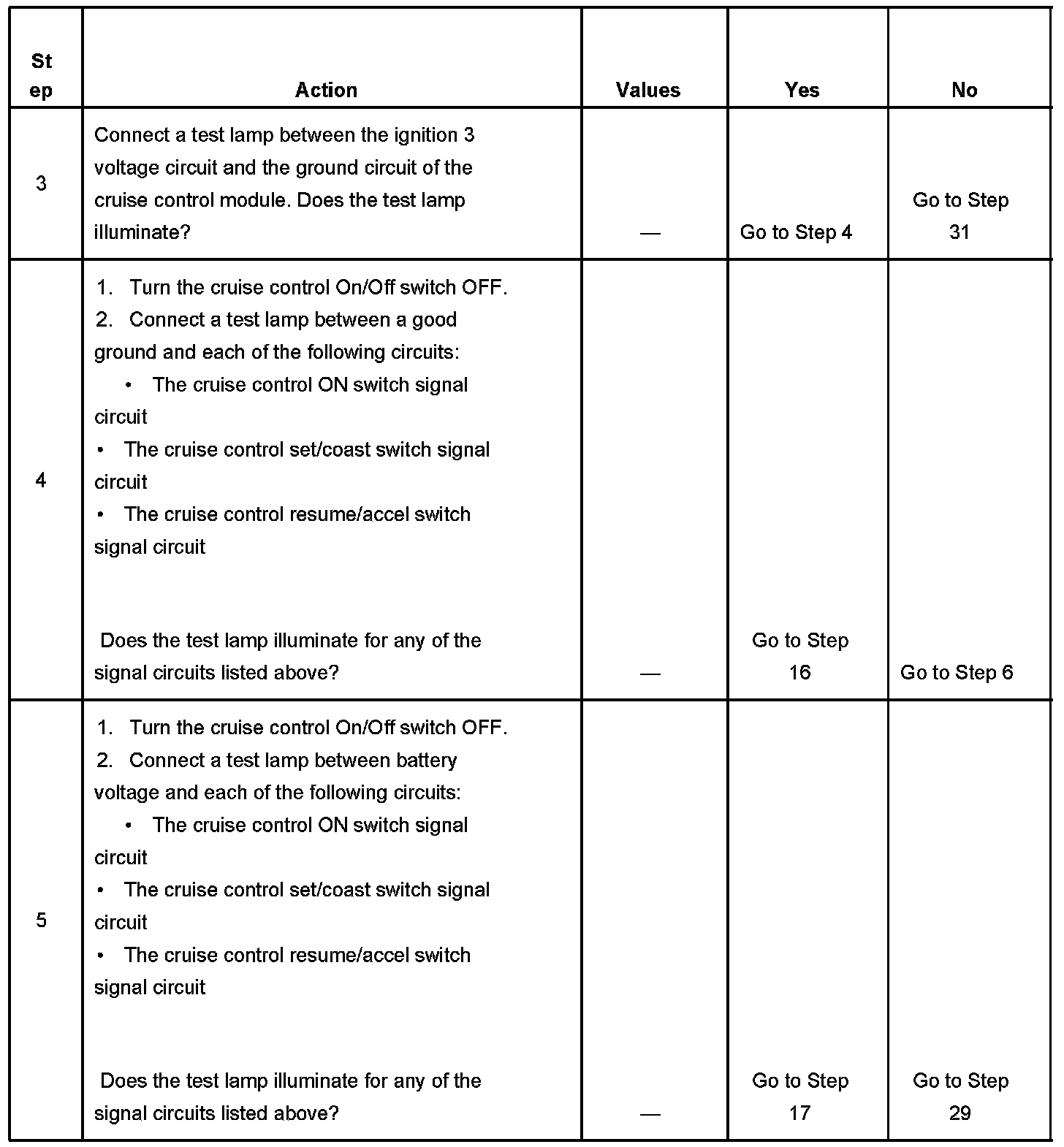

Steps 3-5:

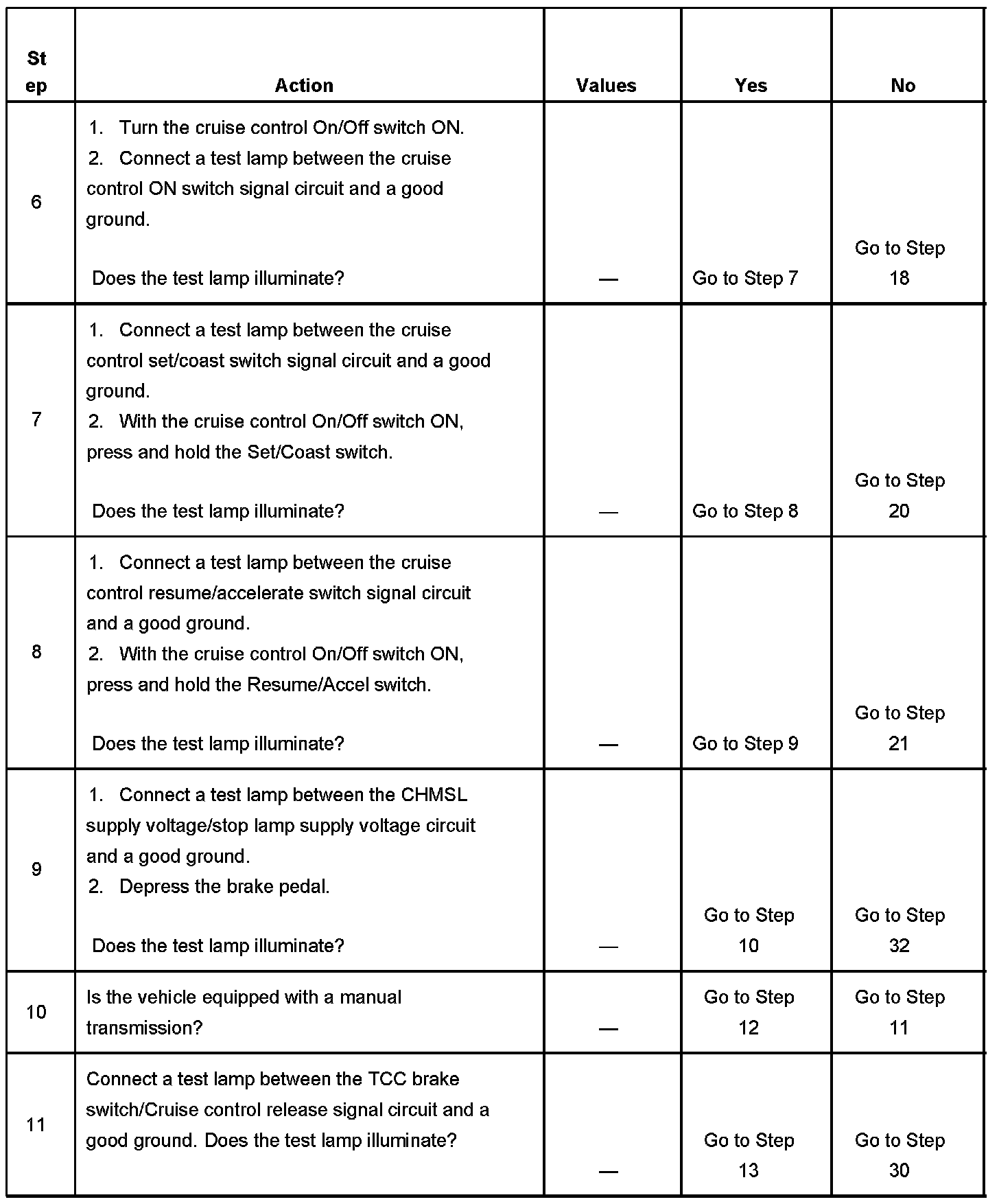

Steps 6-11:

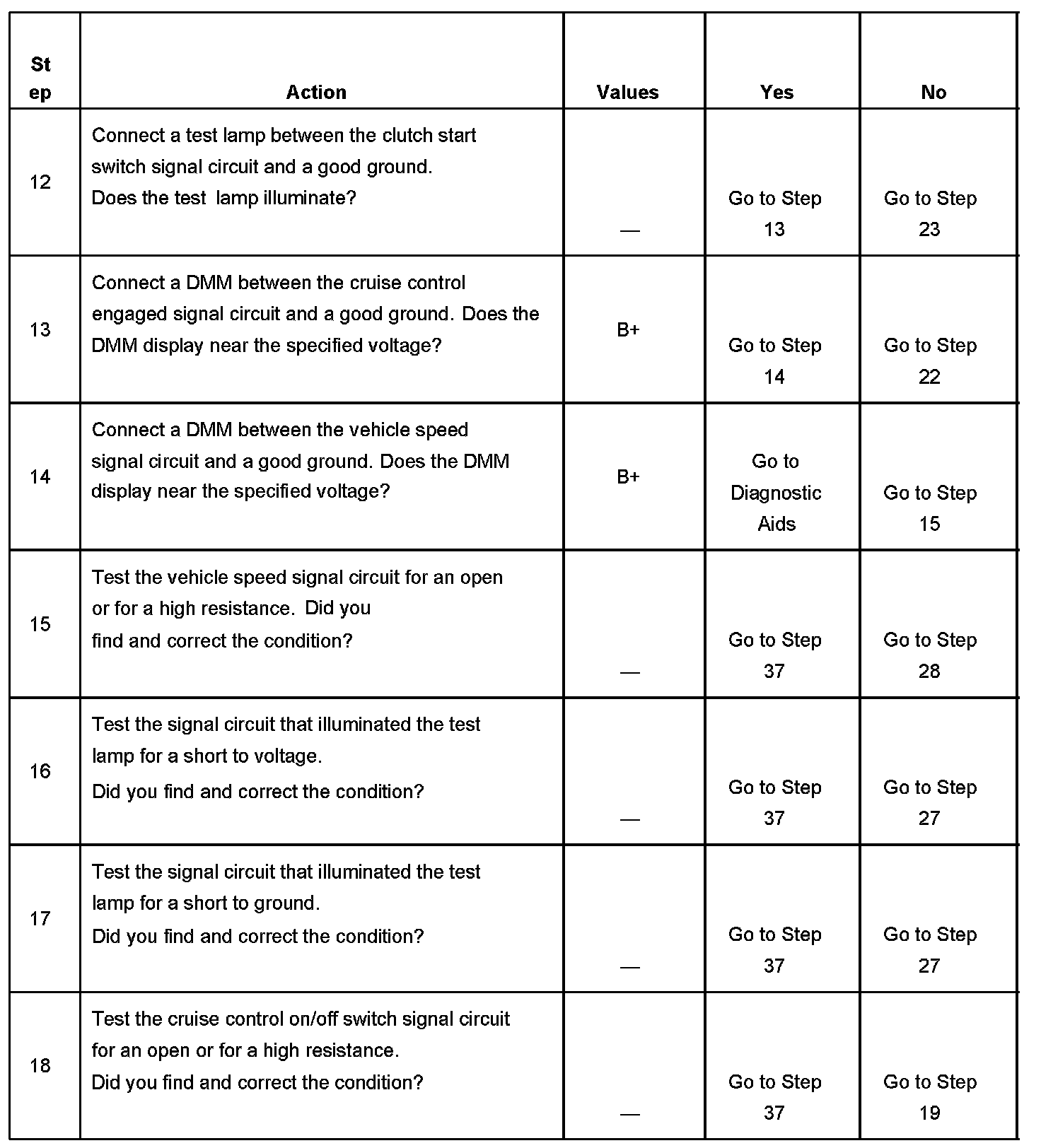

Steps 12-18:

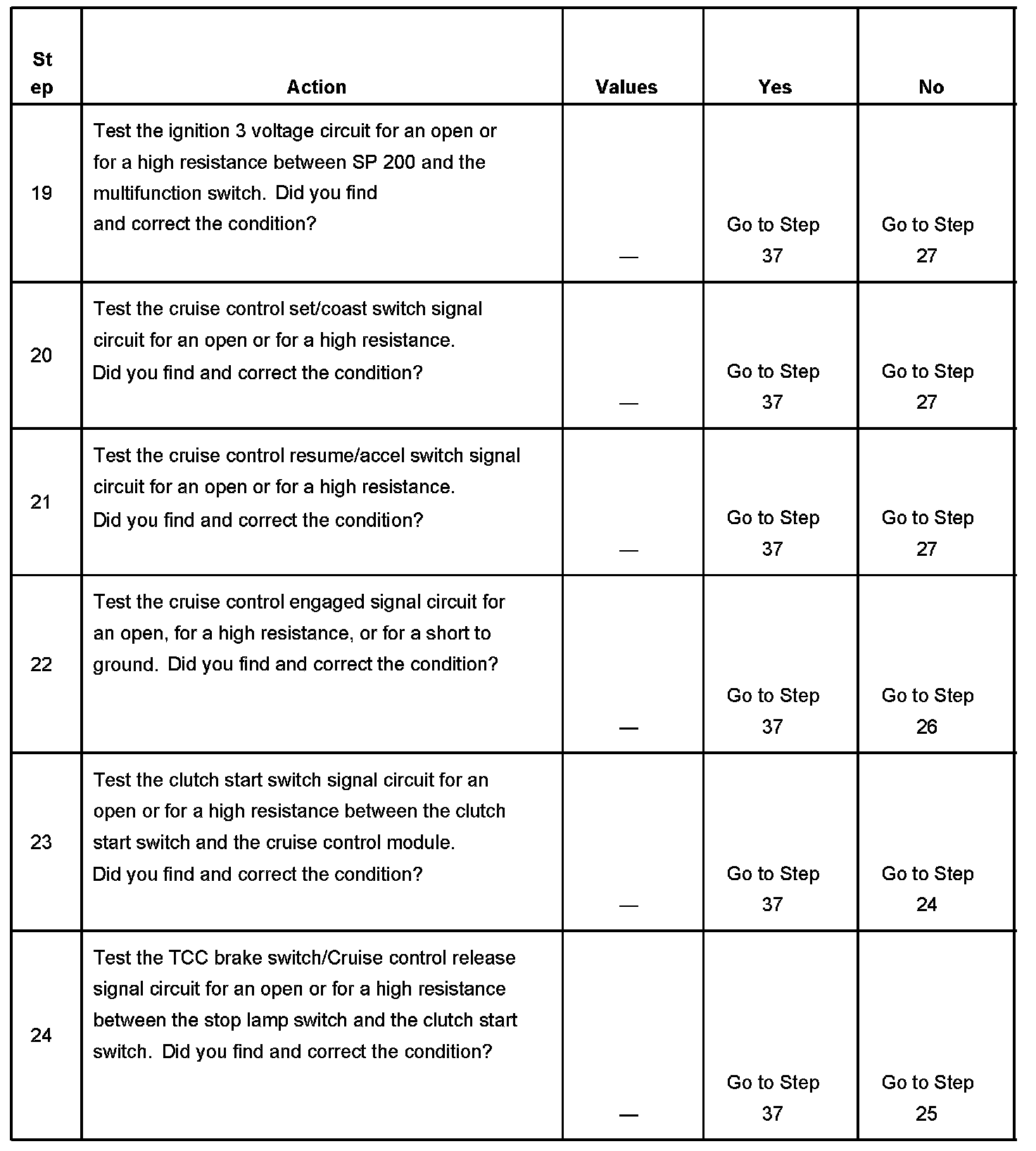

Steps 19-24:

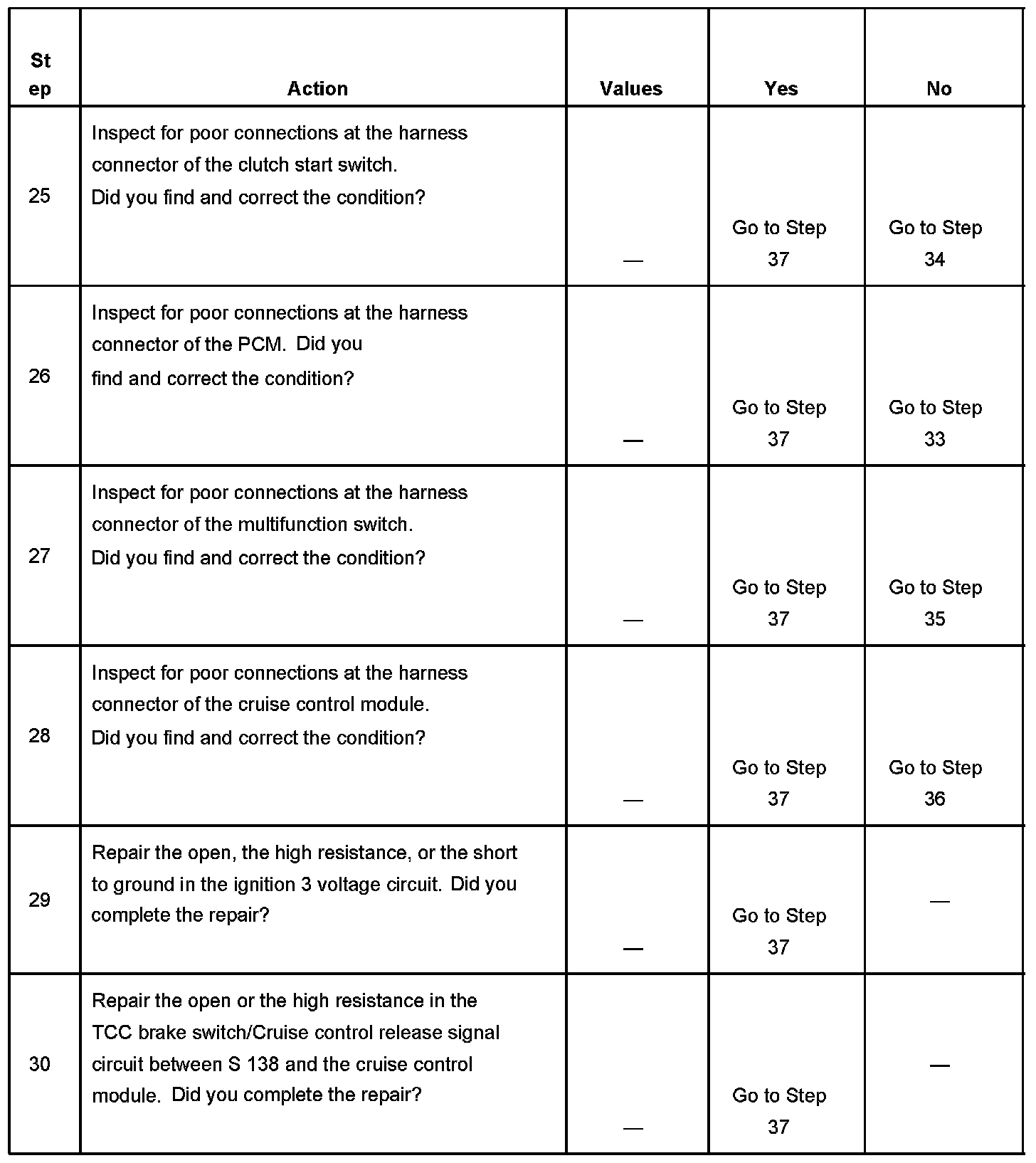

Steps 25-30:

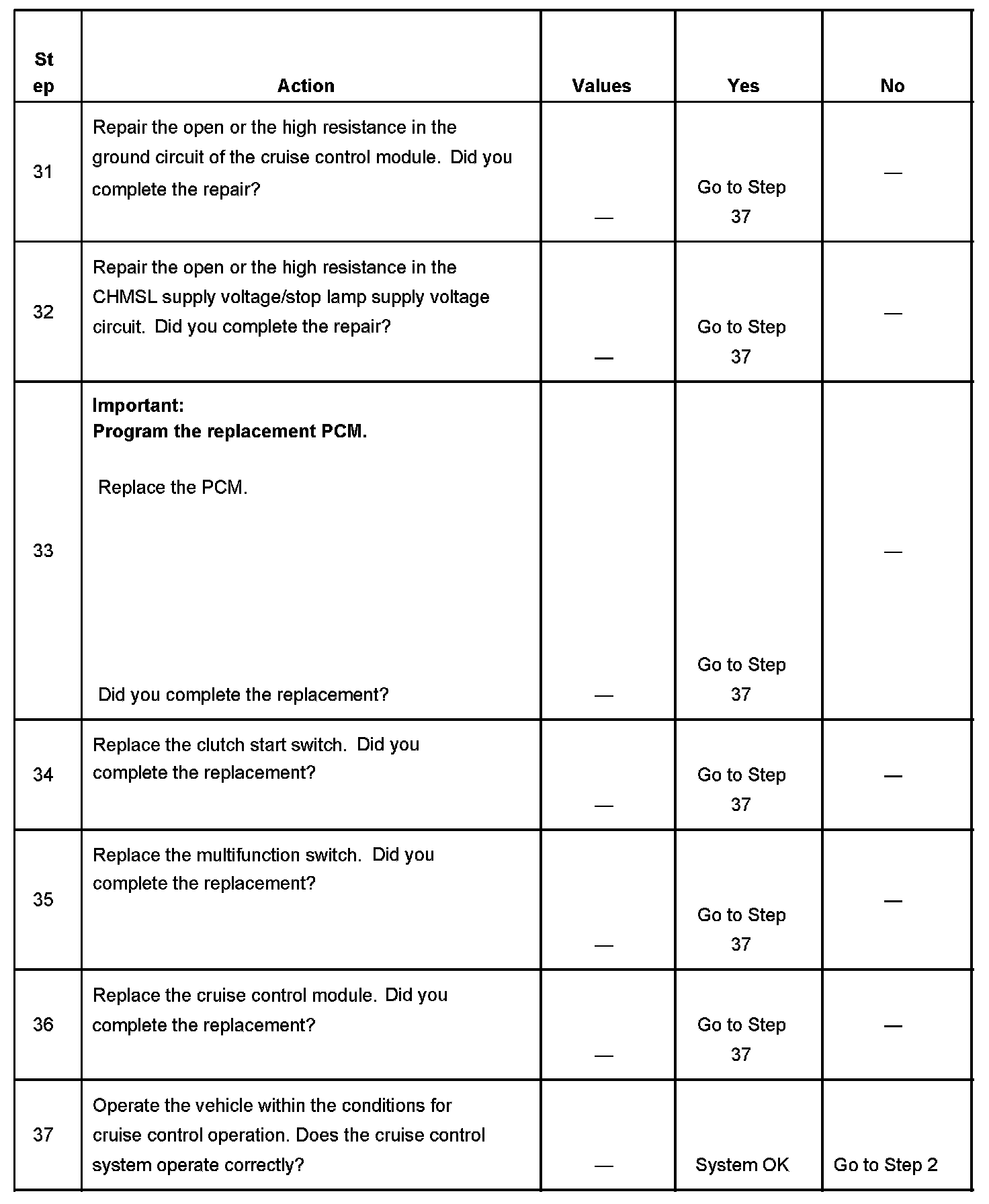

Steps 31-37:
