Outlet

Radiator Hose Replacement - Outlet

Removal Procedure





1. Drain the cooling system.
2. Remove the radiator outlet hose clamp from the radiator.
3. Remove the radiator outlet hose from the radiator.

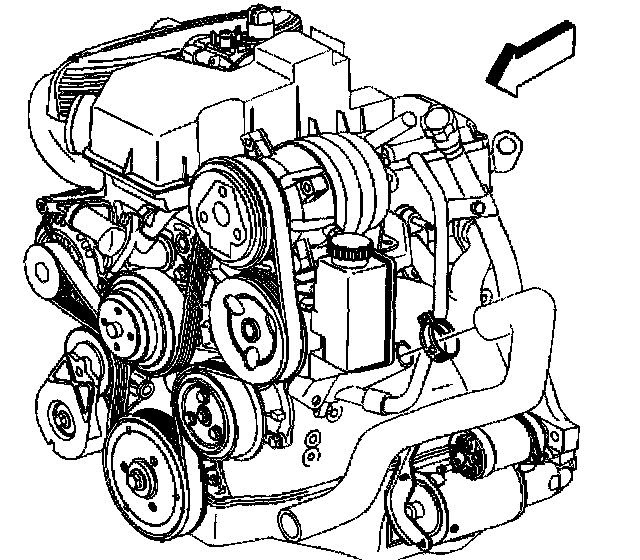

4. Remove the radiator outlet hose clamp from the water pump.





5. Remove the radiator outlet hose from the water pump.
6. Remove the radiator outlet hose.

Installation Procedure





1. Install the radiator outlet hose to the water pump.
2. Install the radiator outlet hose clamp to the water pump.





3. Install the radiator outlet hose to the radiator.
4. Install the radiator outlet hose clamp to the radiator
5. Fill the cooling system.
6. Inspect the cooling system for leaks.
