Intake Manifold

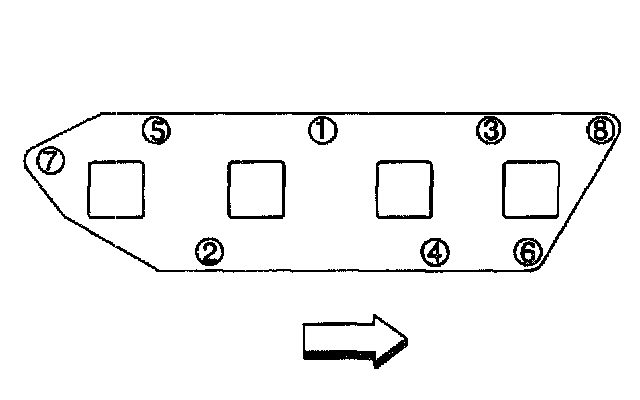

Intake Manifold Tightening Sequence:
Intake Manifold Bolts 24 Nm (17 ft. lbs.)
Intake Manifold Nuts 24 Nm (17 ft. lbs.)
Intake Manifold Studs 12 Nm (105 inch lbs.)
Throttle Body to Intake Manifold Bolts 10 Nm (89 inch lbs.)
Intake Manifold Bolts 24 Nm (17 ft. lbs.)
Intake Manifold Nuts 24 Nm (17 ft. lbs.)
Intake Manifold Studs 12 Nm (105 inch lbs.)
Throttle Body to Intake Manifold Bolts 10 Nm (89 inch lbs.)
