Windshield Washer Hose: Service and Repair

HOSE REPLACEMENT - WINDSHIELD WASHER

REMOVAL PROCEDURE
1. Raise and support the hood.

2. Remove the hose from the nozzles.
3. Remove the hose clip from the hood.

4. Disconnect the hose from the pump.
5. Remove the hose.

INSTALLATION PROCEDURE

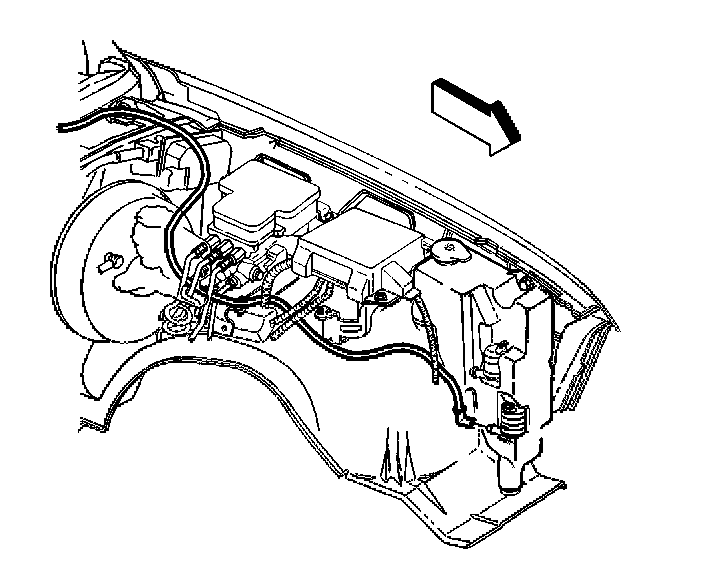

1. Route the hose over the left wheelhouse panel.
2. Install the hose to the pump.

3. Install the hose to the nozzles.
4. Install the hose clip to the hood.
5. Close the hood.
