Grille: Service and Repair



Grille Replacement (Chevrolet)

Removal Procedure




1. Open the hood.

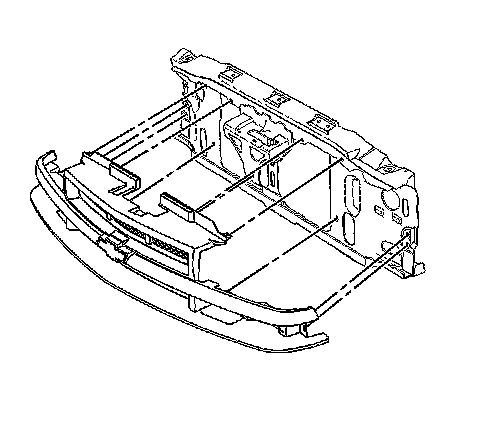

2. Remove the grille by pulling it forward out of the radiator support.
3. Disconnect the headlamp washer filler hose from the grille.
4. Remove the park/turn signal bulb assembly from the lens.
5. Remove the fog lamp bulb assembly from the lens, if equipped.
6. If replacing the grille, remove the park turn signal lamp/fog lamp assembly from the grille. Refer to Front Fog Lamp - Park/Turn Signal Assembly Replacement in Lighting Systems

Installation Procedure




1. If removed, install the park turn signal/fog lamp assembly to the grille. Refer to Front Fog Lamp - Park/Turn Signal Assembly Replacement in Lighting Systems.
2. Install the fog lamp bulb assembly to the lens, if removed.
3. Install the park/turn signal bulb assembly to the lens.
4. Connect the headlamp washer filler hose to the grille.
5. Install the grille by pressing into place until fully seated.
6. Close the hood.
