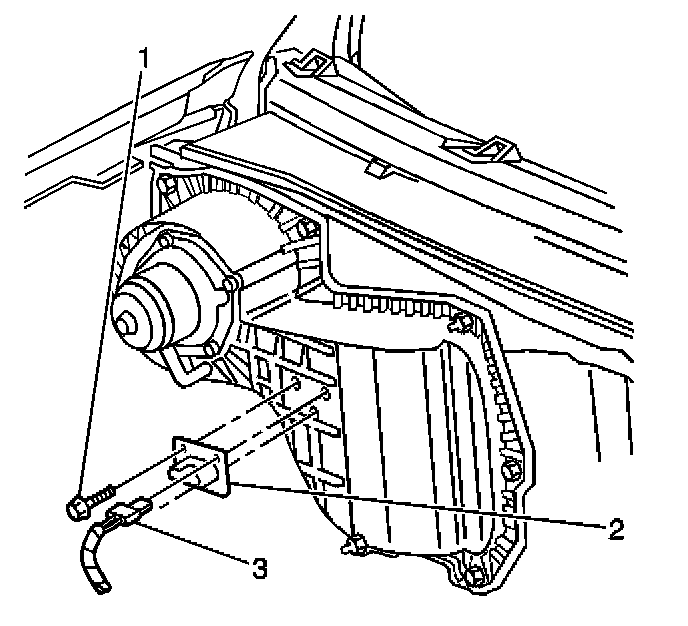

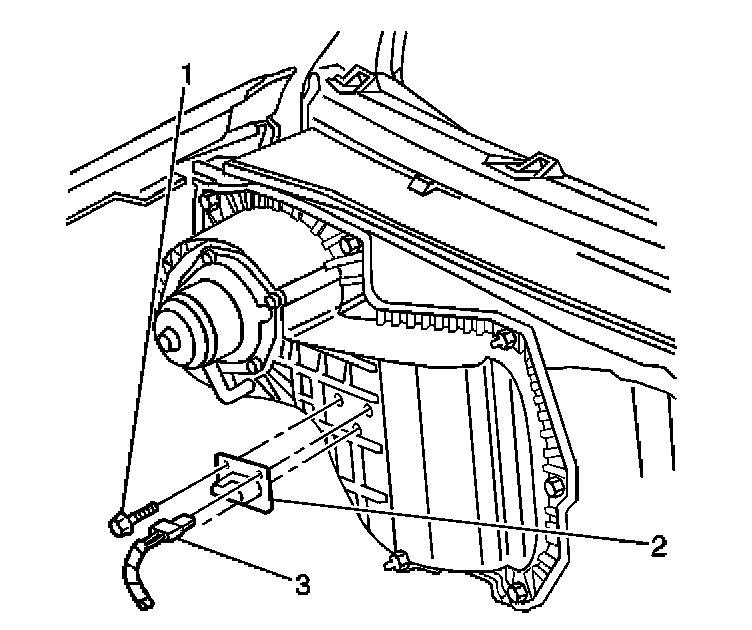

BLOWER MOTOR RESISTOR ASSEMBLY REPLACEMENT (WITH RPO CODE C42)

REMOVAL PROCEDURE




1. Disconnect the electrical connector (3).
2. Remove the blower motor resistor mounting screws (1).
3. Remove the blower motor resistor (2) from the blower case.

INSTALLATION PROCEDURE




1. Install the blower motor resistor (2) to the blower case.
2. Install the blower motor resistor mounting screws (1).

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screws to 1.9 N.m (17 lb in).

3. Connect the electrical connector (3).
