Backup Lamp: Service and Repair

Backup Lamp Switch Replacement

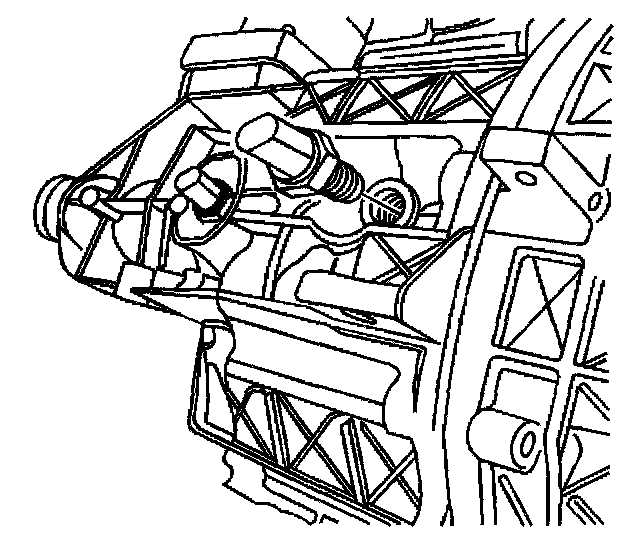

Removal Procedure





1. Raise and support the vehicle.
2. Support the vehicle with safety stands.
3. Disconnect the backup lamp switch electrical connector.
4. Remove the backup lamp switch.

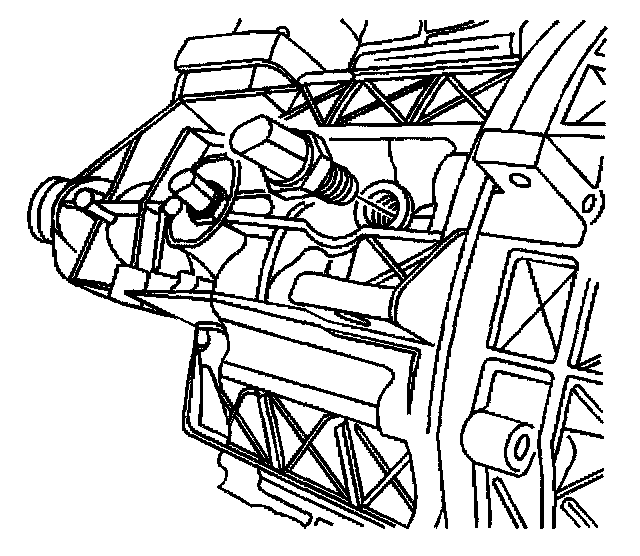

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.





1. Install the backup lamp switch. The backup lamp switch has pre-applied thread sealant on the threads.
- Tighten the backup lamp switch to 37 Nm (28 ft. lbs.).
2. Connect the backup lamp switch electrical connector.
3. Lower the vehicle.
