Manifold Pressure/Vacuum Sensor: Service and Repair

MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR REPLACEMENT

REMOVAL PROCEDURE
1. Turn OFF the ignition.

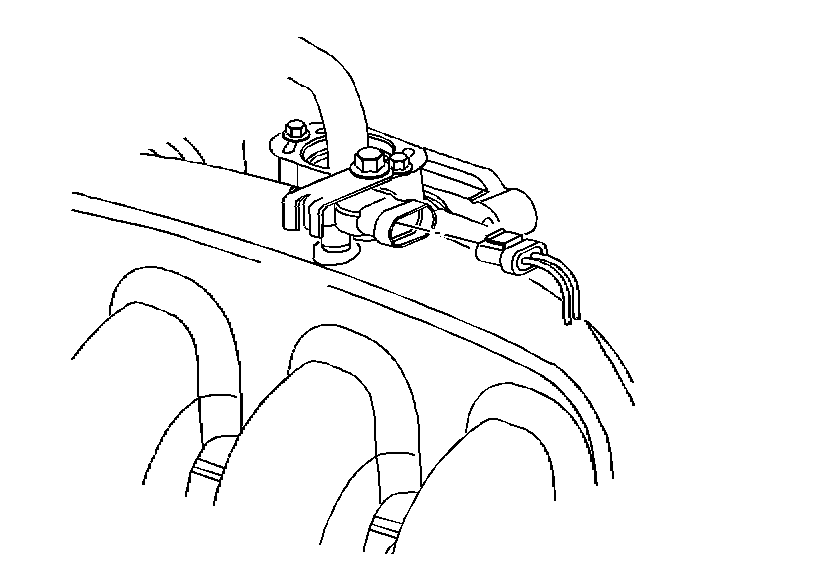

2. Disconnect the electrical connector.

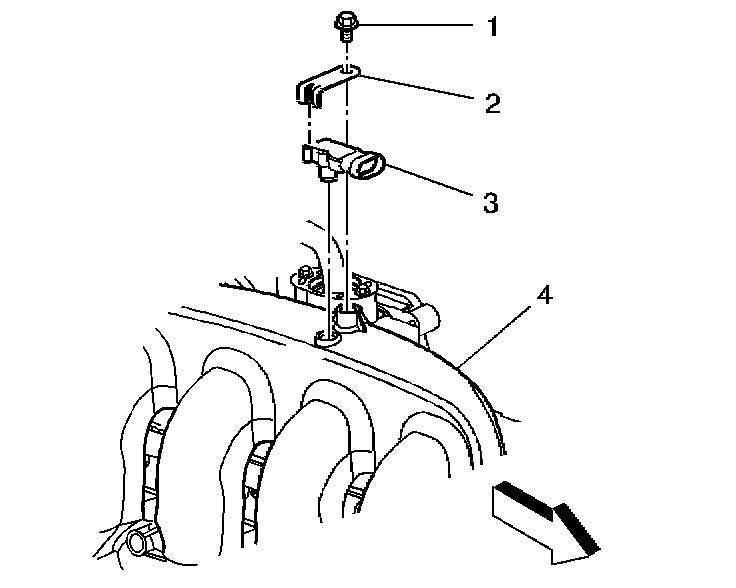

3. Remove the attaching screw (1).
4. Remove the bracket (2).
5. Remove the manifold absolute pressure (MAP) sensor (3) from the intake manifold (4).

INSTALLATION PROCEDURE

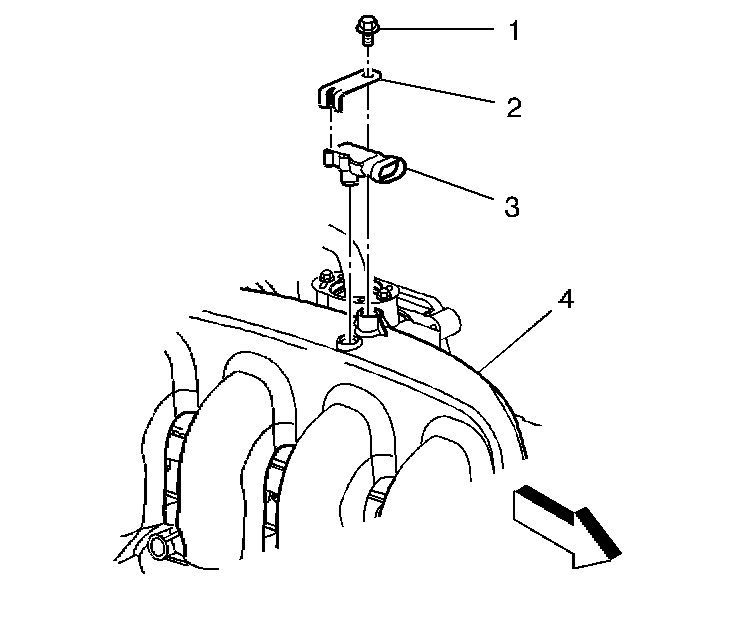

1. Install the MAP sensor (3) into the intake manifold (4).
2. Install the MAP sensor bracket (2).
3. Install the attaching screw (1).

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the attaching screws to 5 N.m (44 lb in).

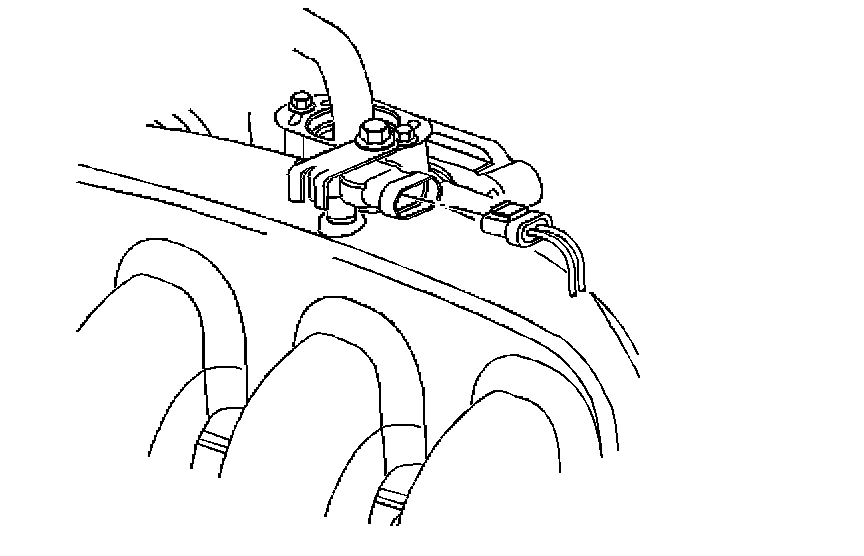

4. Connect the electrical connector.
