Sunroof / Moonroof Module: Service and Repair

SUNROOF CONTROL MODULE REPLACEMENT

REMOVAL PROCEDURE
1. Remove the headliner.
2. Remove the straps that retain the wiring harness.
3. Disconnect the electrical connectors, as needed.

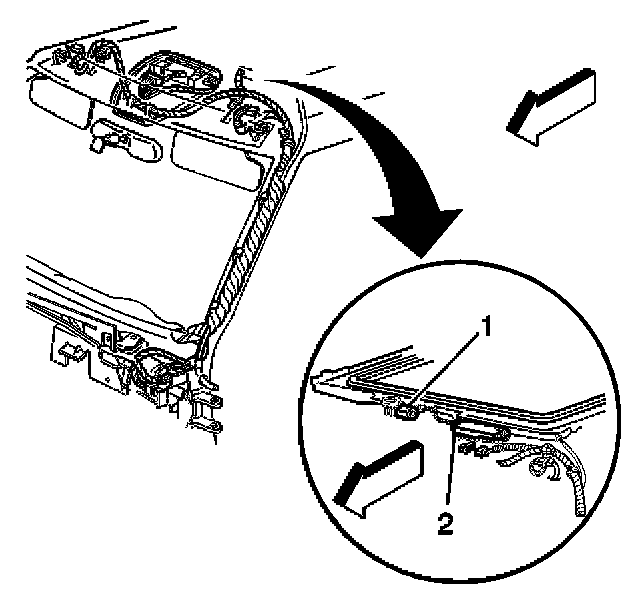

4. Slide the sunroof control module (2) to the right in order to remove the sunroof control module from the vehicle.

INSTALLATION PROCEDURE

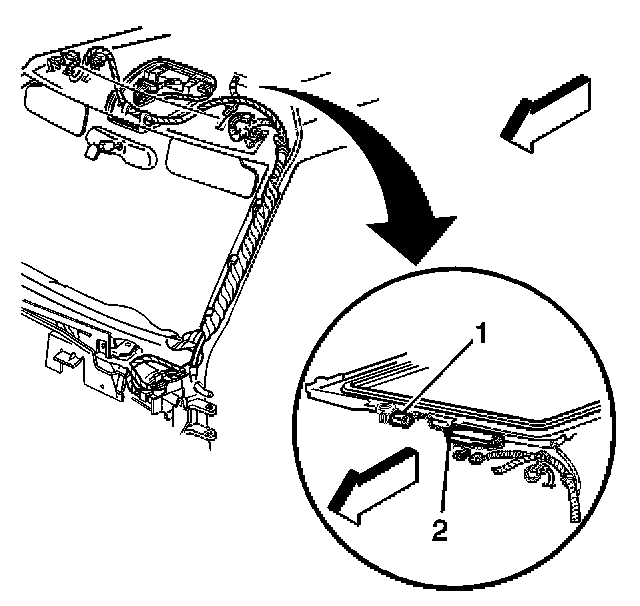

1. Slide the sunroof control module (2) to the left in order to install the sunroof control module to the vehicle.
2. Connect the electrical connectors, as needed.
3. Install the straps that retain the wiring harness.
4. Install the headliner.
