Lower Control Arm Replacement

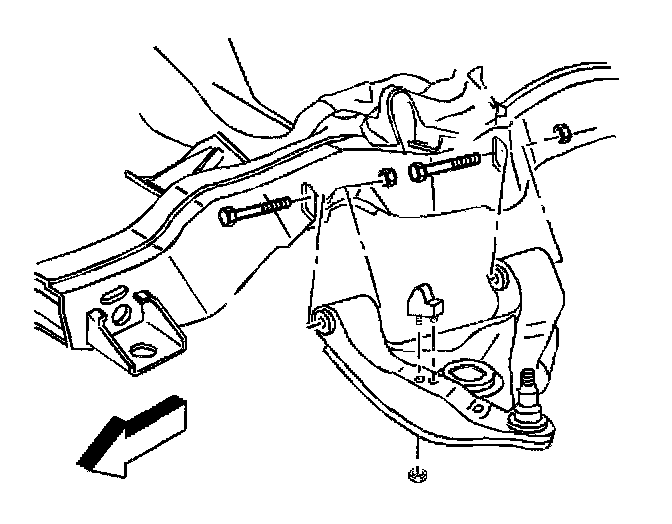

Lower Control Arm ReplacementRemoval Procedure
1. Remove the front coil spring.
2. Remove the lower ball joint from the steering knuckle.
3. Remove the lower control arm from the vehicle.
4. Inspect the lower ball joint for wear, replace as necessary.
Installation Procedure
1. Install the lower control arm to the vehicle.
2. Install the lower ball joint stud to the steering knuckle.
3. Install the front coil spring.
4. Check the front wheel alignment. Adjust if necessary.
