Console Shift Lever Bezel Replacement

Console Shift Lever Bezel Replacement

Removal Procedure

1. Remove the gearshift knob. Refer to Floor Shift Control Knob Replacement .

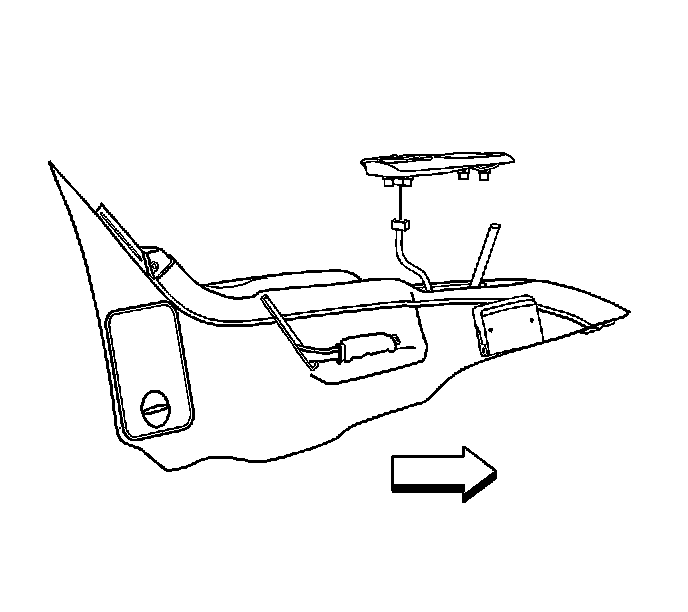

2. Using a flat-bladed plastic tool, release the 4 clips retaining the bezel to the floor console
3. Disconnect the electrical connector from the power switch module.
4. Remove the bezel from the vehicle.



Installation Procedure

1. Position the bezel to the floor console.




2. Connect the electrical connector to the power switch module.
3. Install the bezel to the floor console.
4. Install the gearshift knob. Refer to Floor Shift Control Knob Replacement .
