Rearview Mirror Lamp Replacement



REARVIEW MIRROR LAMP REPLACEMENT

REMOVAL PROCEDURE

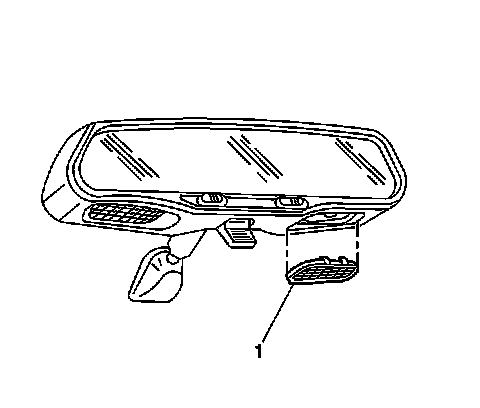

1. Remove the lamp lens from the mirror housing.Pry carefully with a small, flat-bladed screwdriver (at the rear edge (1) of the lens, furthest from the windshield).




2. Remove the bulb from the socket.

INSTALLATION PROCEDURE




1. Install the bulb into the socket.




2. Install the lamp lens to the mirror housing.Insert the forward edge of the lens (1) (the edge nearest to the windshield) into place and push up the rear edge to snap in place.
