Front Door Window Glass Weatherstrip: Service and Repair



Sealing Strip Replacement - Front Door Window Belt Outer

Removal Procedure





1. Lower the window.




2. Remove the front door sealing strip fastener.

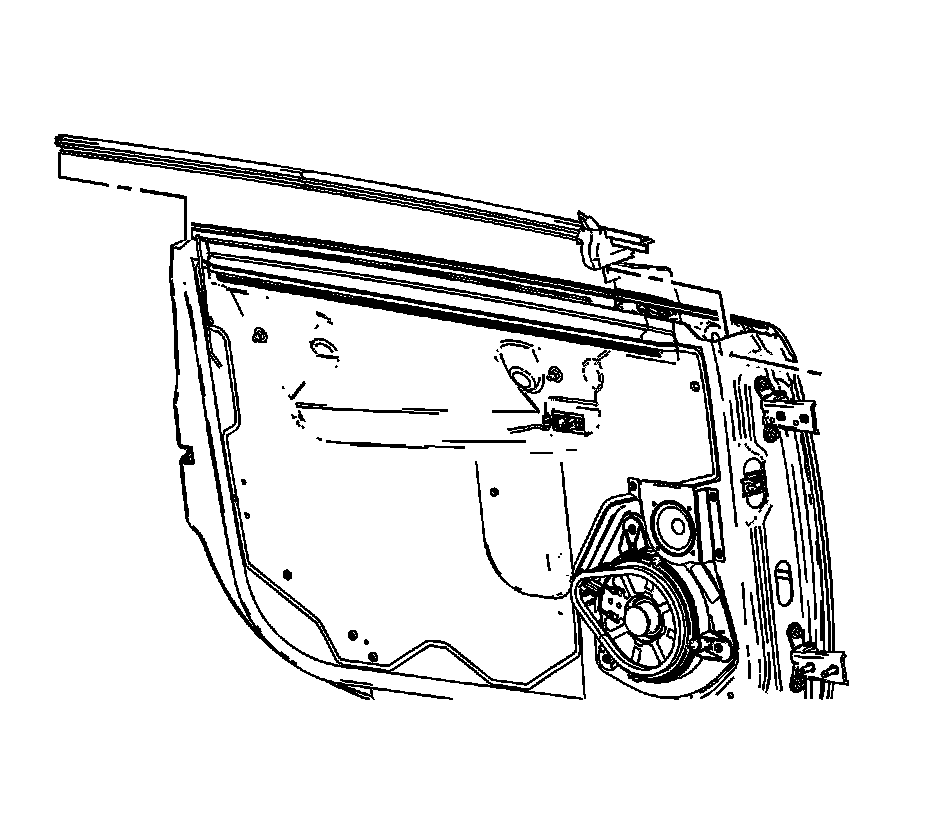

3. Slide the front door sealing strip upward.



Installation Procedure

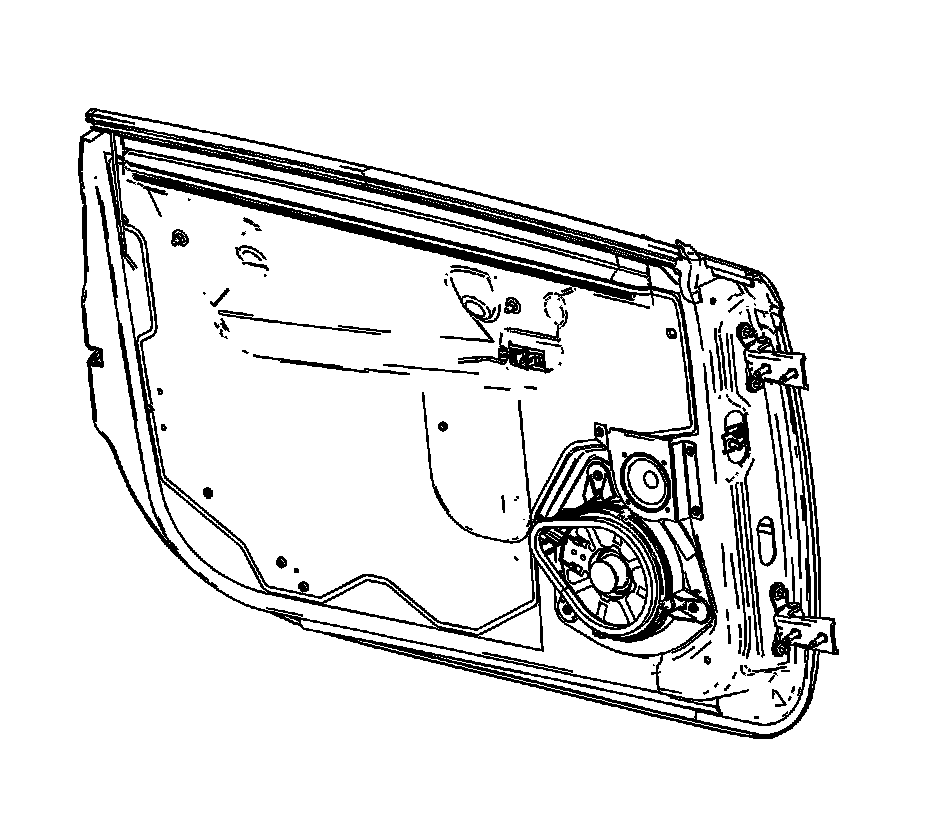

1. Align the front door sealing strip to the door.
2. Push the sealing strip forward onto the door.





Notice: Refer to Fastener Notice in Cautions and Notices.

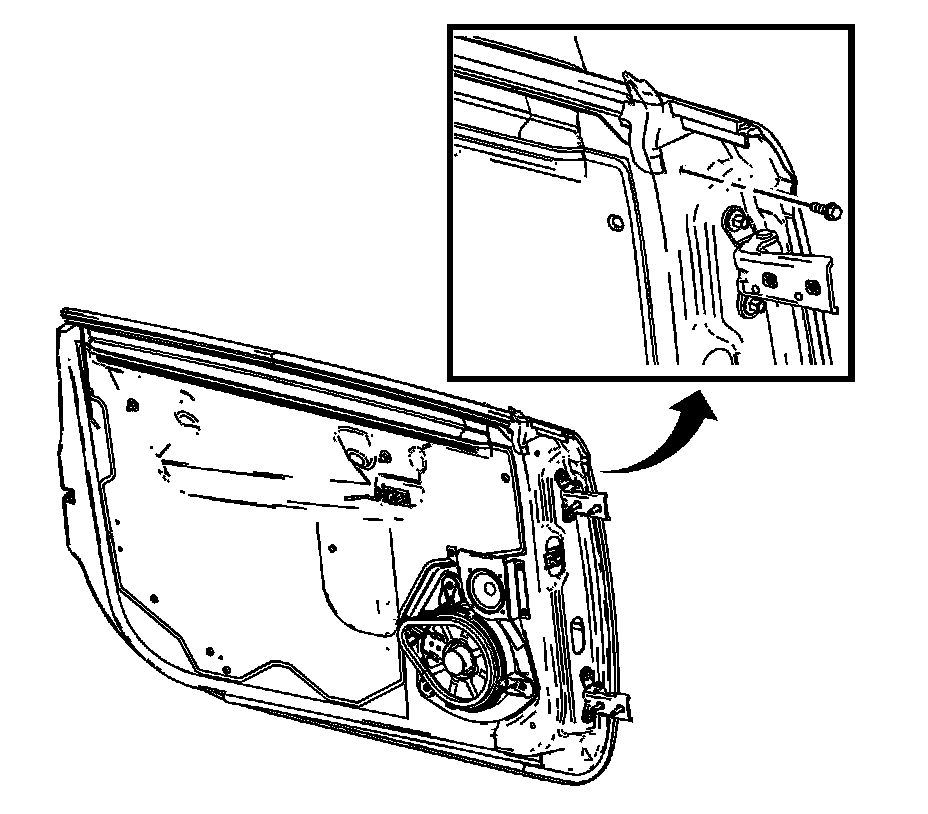

3. Install the front door sealing strip fastener.

Tighten the front door sealing strip fastener to 2 N.m (18 lb in).

4. Raise the window.
