Weatherstrip Replacement - Endgate - Bottom
Weatherstrip Replacement - Endgate - BottomRemoval Procedure 1.
Open the rear compartment lid.
2.
Lower the endgate.
3.

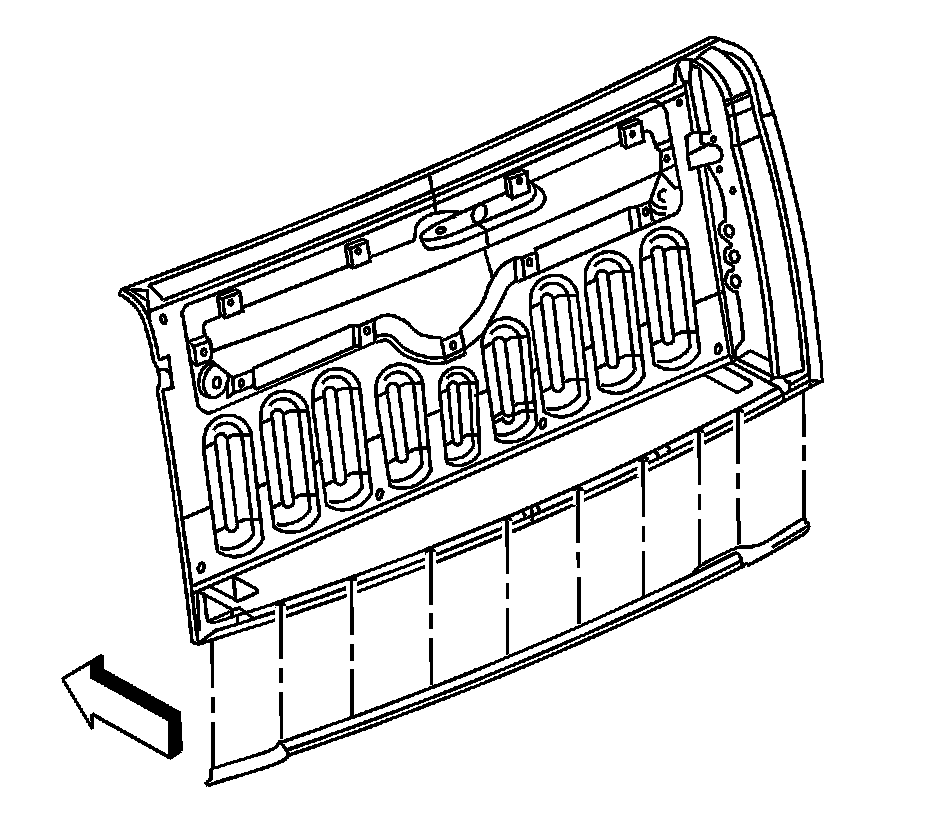

Remove the endgate
weatherstrip from the endgate.
Installation Procedure 1.
Align the endgate
weatherstrip with the holes in the endgate.
2.
Install the endgate
weatherstrip to the endgate.
3.
Close the endgate.
4.
Close the rear compartment lid.
