Seals

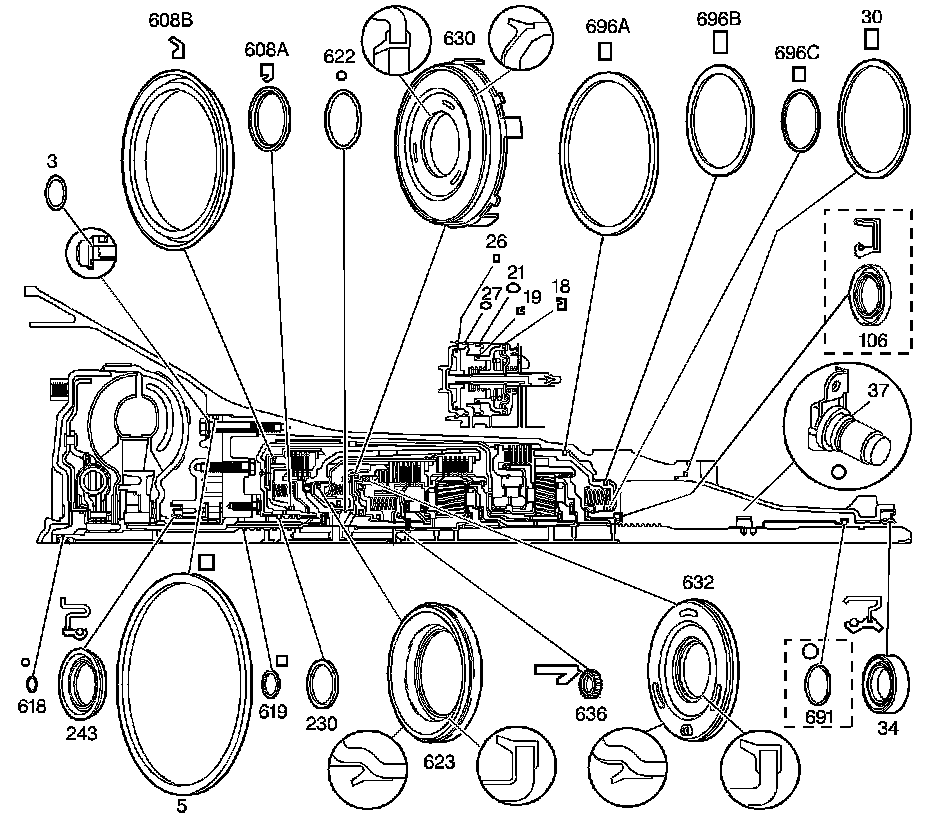

Component Location

Seals:

3 - Pump to Case Bolt O-Ring
5 - Oil Seal (Pump to Case)
18 - Oil Seal Ring (2nd Apply Piston-Outer)
19 - Oil Seal Ring (2nd Apply Piston-Inner)
21 - O-Ring Seal
26 - Oil Seal Ring (4th Apply Piston-Outer)
27 - O-Ring Seal (2-4 Servo Cover)
30 - Case Extension to Case Seal
34 - Case Extension Oil Seal Assembly
37 - O-Ring Seal (ITSS to Case Extension)
106 - Case Oil Seal Assembly (Y-Car Only)
230 - Oil Seal Ring (Stator Shaft)
243 - Oil Seal Assembly
608a - Reverse Input Clutch Seal (Inner)
608b - Reverse Input Clutch Seal (Outer)
618 - O-Ring Seal (Turbine Shaft/Selective Washer)
619 - Oil Seal Ring (Solid)
622 - O-Ring Input to Forward Housing Seal
623 - 3rd and 4th Clutch Piston
630 - Forward Clutch Piston
632 - Overrun Clutch Piston
636 - Input Housing to Output Shaft Seal
691 - Output Shaft (Model Dependent) Seal
696a - Low and Reverse Clutch (Outer) Seal
696b - Low and Reverse Clutch (Center) Seal
696c - Low and Reverse Clutch (Inner) Seal
