Cylinder Head Assembly - Aluminum

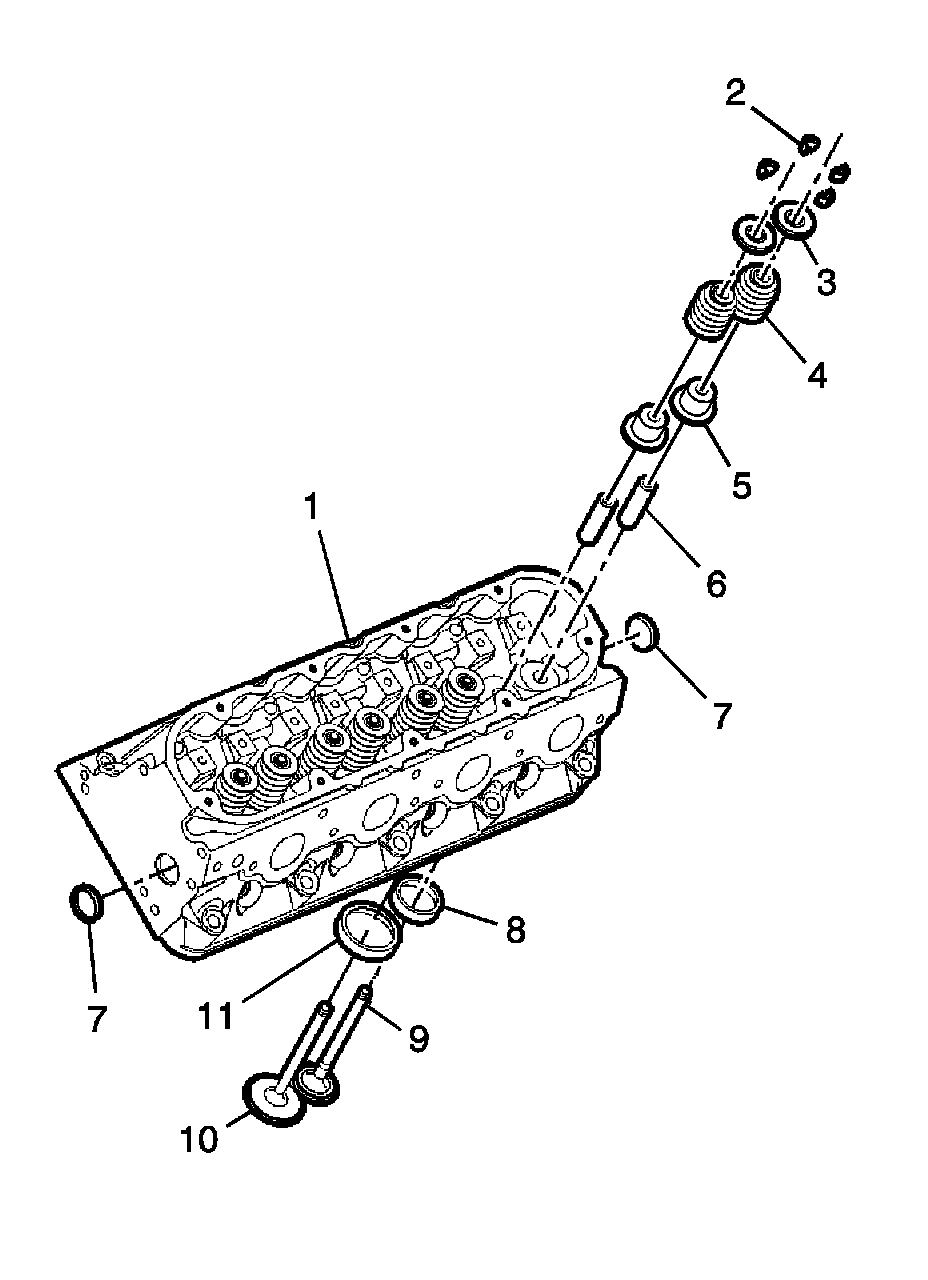

Disassembled Views Cylinder Head Assembly - Aluminum:
1 - Cylinder Head
2 - Valve Stem Keys
3 -
Valve Spring Cap
4 -
Valve Spring 5 - Valve Stem Oil Seal and Shim Assembly
6 -
Valve Guide 7 - Cylinder Head Expansion Plugs
7 - Cylinder Head Expansion Plugs
8 - Exhaust
Valve Seat 9 - Exhaust Valve
10 - Intake Valve
11 - Intake
Valve Seat
