Mode Door

MODE DOOR REPLACEMENT

REMOVAL PROCEDURE
1. Remove the HVAC module.
2. Remove the screws from the mode actuator.
3. Remove the actuator.
4. Remove the mode actuator.

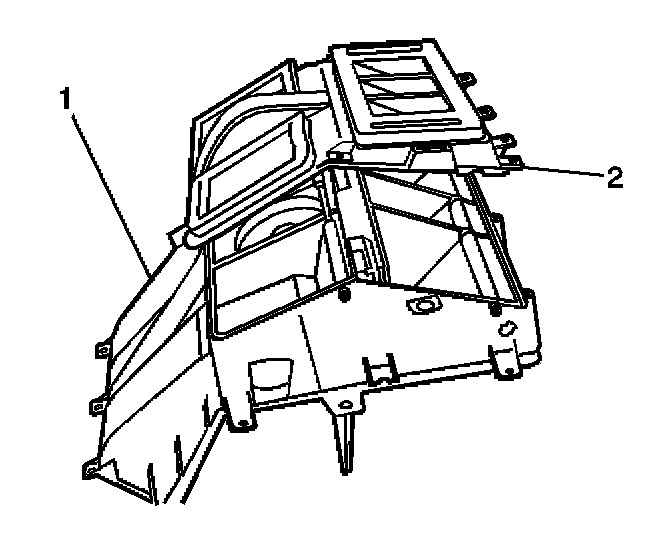

5. Remove screws in order to separate the defroster/mode outlet cover (2) from the HVAC module assembly (1).

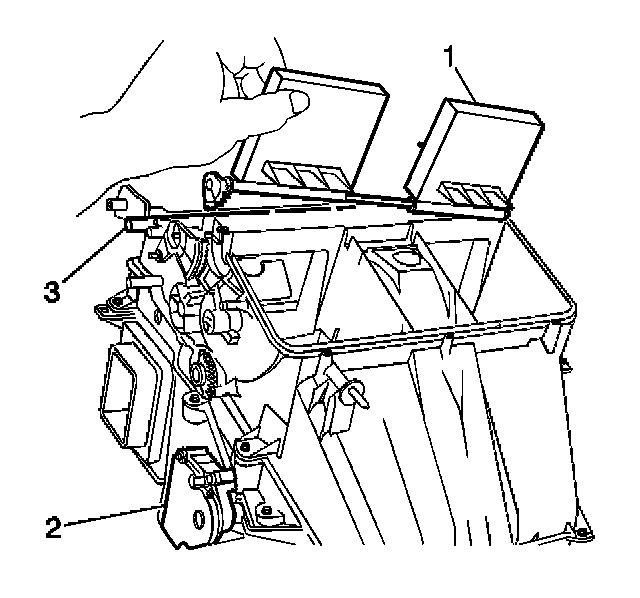

6. Remove the mode door (1) from the heater module.

INSTALLATION PROCEDURE

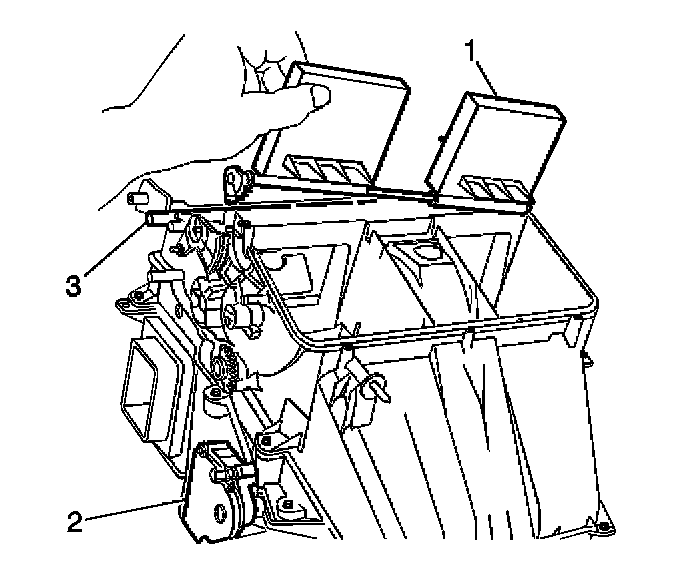

1. Install the mode door (1) to the HVAC module assembly.

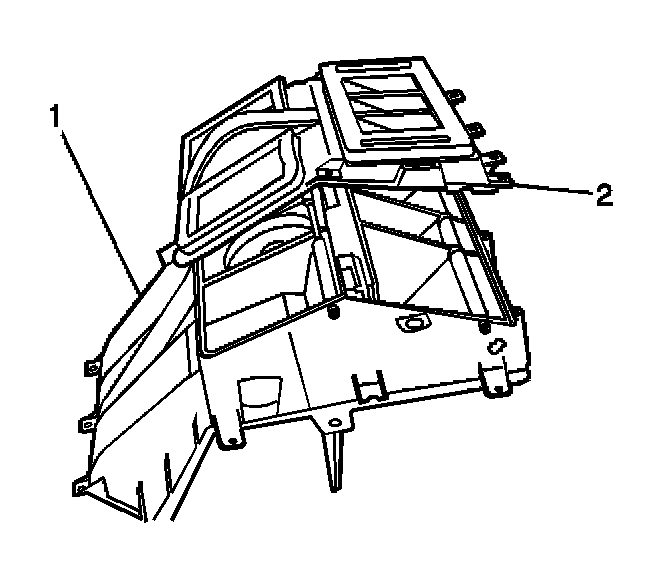

2. Install the defroster/mode outlet cover.




3. Install the defroster/mode outlet cover screws to the HVAC module assembly (1).

NOTE: Refer to Fastener Notice in Service Precautions.

4. Install the screws to assemble the defroster/mode outlet to the HVAC module assembly.

Tighten
Tighten the screws to 1.9 N.m (17 lb in).

5. Install the mode actuator.
6. Install the screws to the mode actuator.

Tighten
Tighten the screws to 1.9 N.m (17 lb in).

7. Install the I/P carrier.
