Brake Light Switch: Service and Repair



STOP LAMP SWITCH REPLACEMENT

REMOVAL PROCEDURE

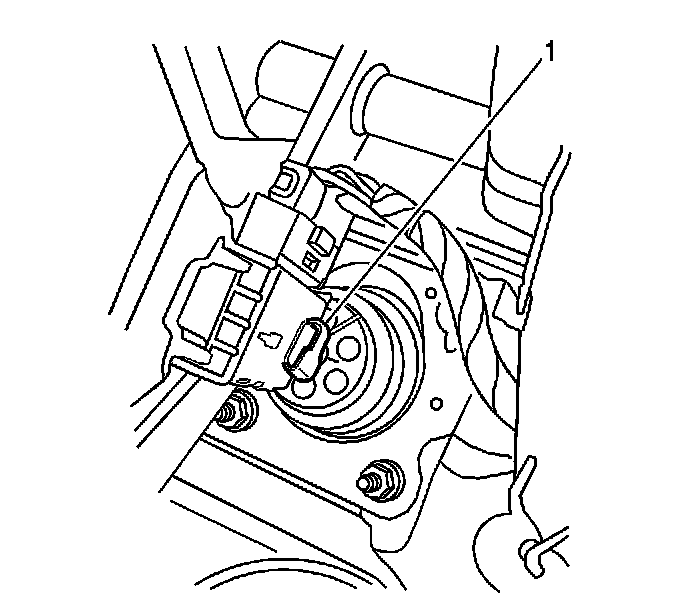

1. Remove the retaining clip from the brake pedal pin (1).
2. Remove the brake switch from the brake pedal pin.
3. Disconnect the electrical connector from the brake switch.
4. Remove the brake switch from the vehicle.

INSTALLATION PROCEDURE




1. Locate the brake switch to the vehicle.
2. Connect the electrical connector to the brake switch.
3. Install the brake switch to the brake pedal pin.
4. Install the retaining clip to the brake pedal pin (1).
