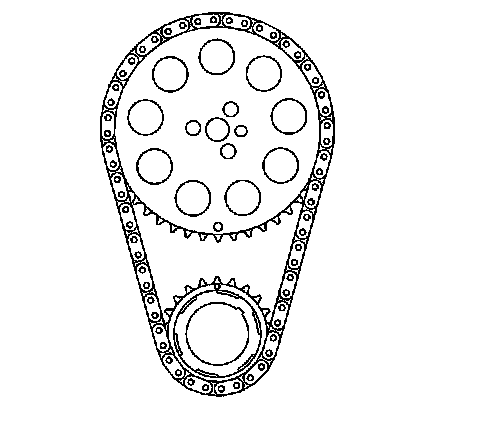

Timing Component Alignment Marks: Locations

Properly locate the camshaft sprocket locating pin with the camshaft sprocket alignment hole.

The sprocket teeth and timing chain must mesh.

The camshaft and the crankshaft sprocket alignment marks MUST be aligned properly. Locate the camshaft sprocket alignment mark in the 6 o'clock position.

Install the camshaft sprocket and timing chain.





If necessary, rotate the camshaft or crankshaft sprockets in order to align the timing marks.

Install the camshaft sprocket bolts.
