Resonator: Service and Repair

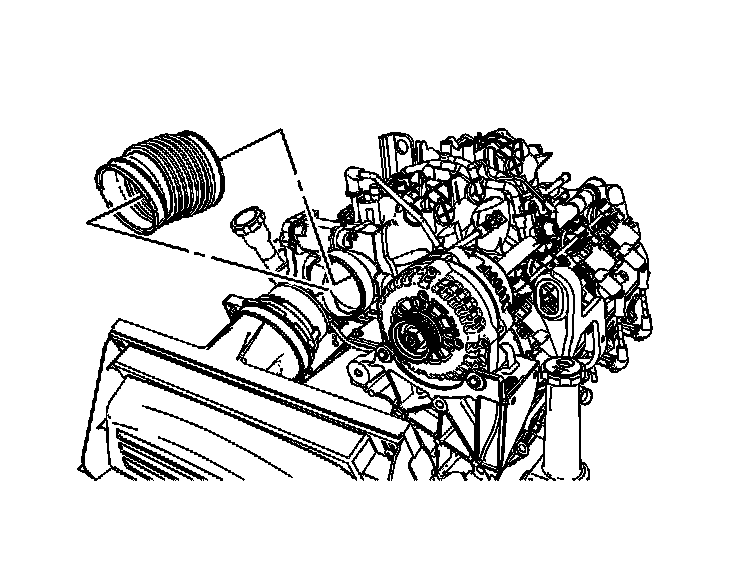

AIR CLEANER RESONATOR OUTLET DUCT REPLACEMENTREMOVAL PROCEDURE 1.
Open the hood.
2.
Loosen clamp retaining air cleaner outlet duct to rear air box and
throttle body.
3.
Remove air cleaner outlet duct.

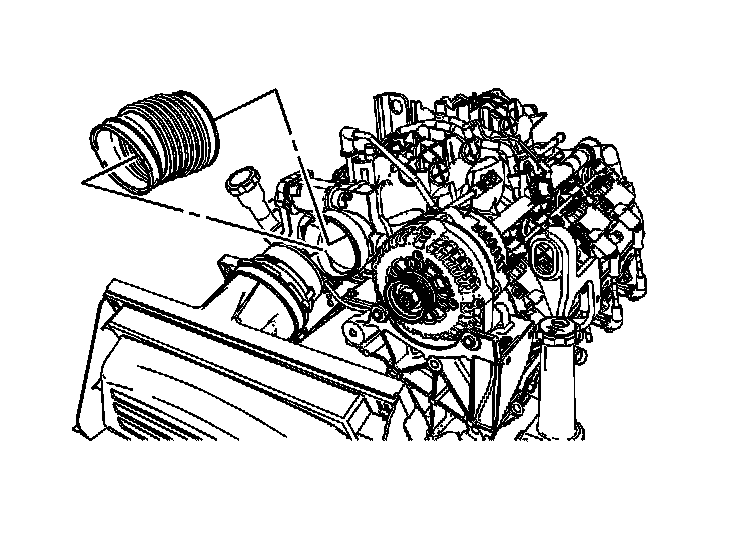

INSTALLATION PROCEDURE NOTE: Refer to Fastener Notice in Service Precautions.
1.
Install the air cleaner outlet duct.
Tighten Tighten clamps to
4 N.m (35 lb in).
2.
Close the hood.
