Inflatable Restraint Seat Position Sensor Replacement



INFLATABLE RESTRAINT SEAT POSITION SENSOR REPLACEMENT

REMOVAL PROCEDURE
1. Remove the seat from the vehicle.
2. Ensure that the seat is in the full forward position.

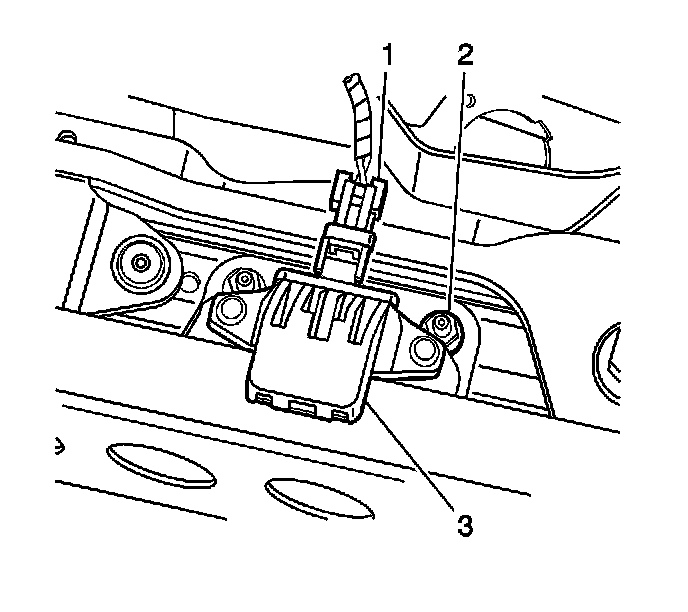

3. Locate the seat position switch (3) under the seat on the inside of the inner seat rail.
4. Disconnect the electrical connector (1) from the seat position switch (3).
5. Remove the 2 nuts (2) that retain the seat position switch to the seat rail.
6. Remove the seat position switch from the seat.

INSTALLATION PROCEDURE




1. Install the seat position switch (3) to the seat rail with 2 nuts (2).

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the seat position switch nuts to 4 N.m (35 lb in).

2. Connect the electrical connector (1) to the seat position switch (3).
3. Install the seat in the vehicle.
