Windshield Washer Hose: Service and Repair

WASHER HOSE REPLACEMENT - REAR (#1)

REMOVAL PROCEDURE




1. Remove the headlining trim finish panel.

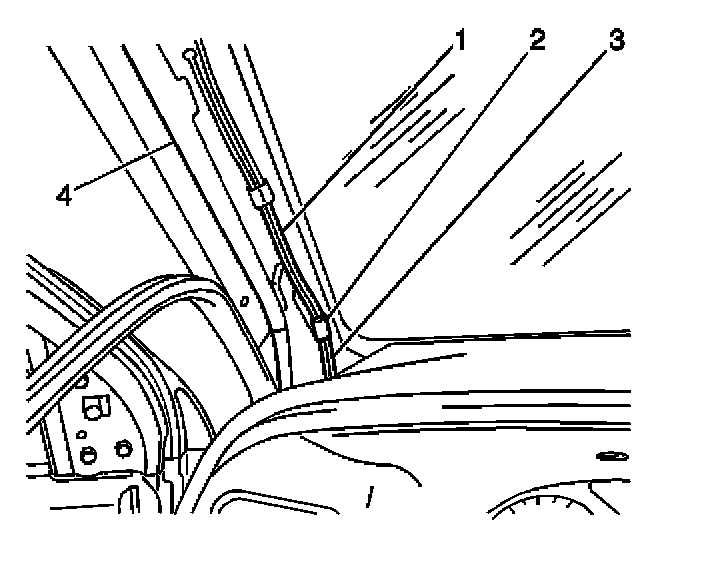

2. Remove the rear window washer nozzle hose (1) from the rear window washer nozzle hose connector (2) located along the windshield side pillar (4).
3. Remove the rear window washer nozzle hose (1) from the retainers along the windshield side pillar (4).

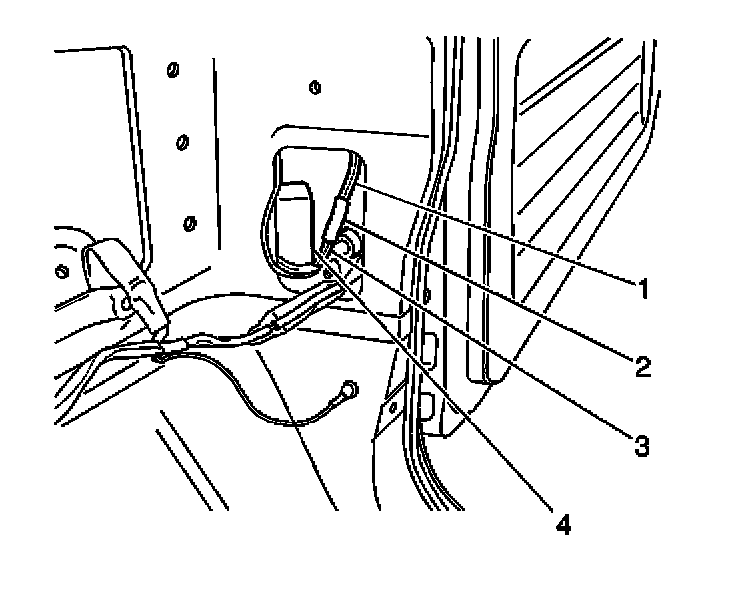

4. Remove the rear window washer nozzle hose (1) from the rear window washer nozzle hose connector (2) in the right rear quarter of the vehicle near the rear door wiring harness grommet.
5. Remove the rear window washer nozzle hose (1) from the vehicle.

INSTALLATION PROCEDURE




1. Install the rear window washer nozzle hose (1) to the vehicle.

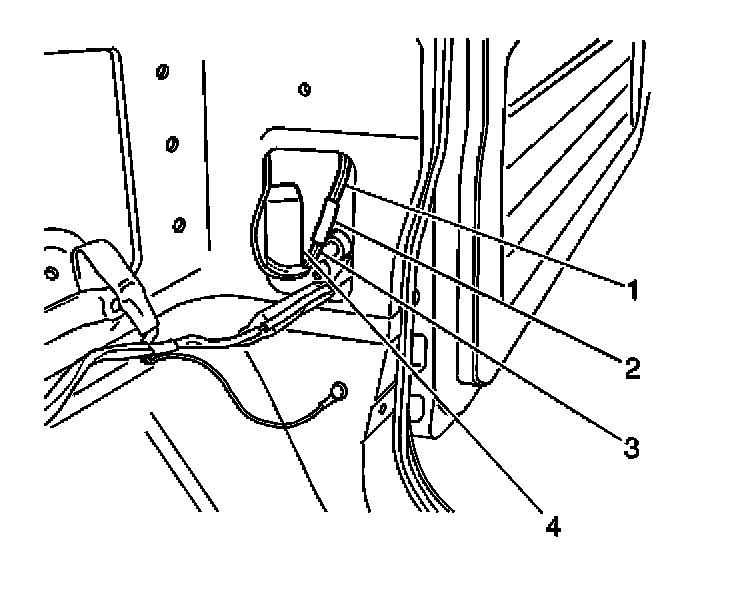

2. Install the rear window washer nozzle hose (1) to the rear window washer nozzle hose connector (2) in the right rear quarter of the vehicle near the rear door wiring harness grommet.




3. Install the rear window washer nozzle hose (1) to the rear window washer nozzle hose connector (2) located along the windshield side pillar (4).
4. Install the rear window washer nozzle hose (1) to the retainers along the windshield side pillar (4).
5. Install the headlining trim finish panel.
