Jacking

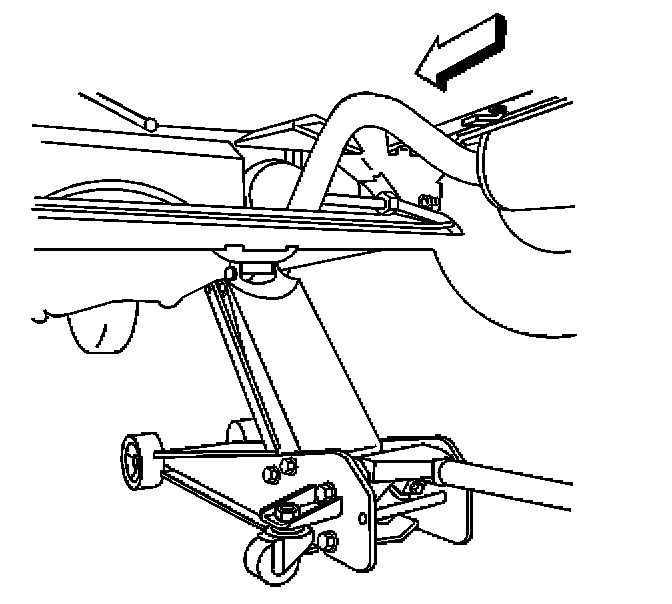

LIFTING THE VEHICLE WITH A FLOOR JACKUNDER FRONT FRAMEWhen lifting front the vehicle with a floor jack, place the floor jack lift pad at the center of the front frame rail.

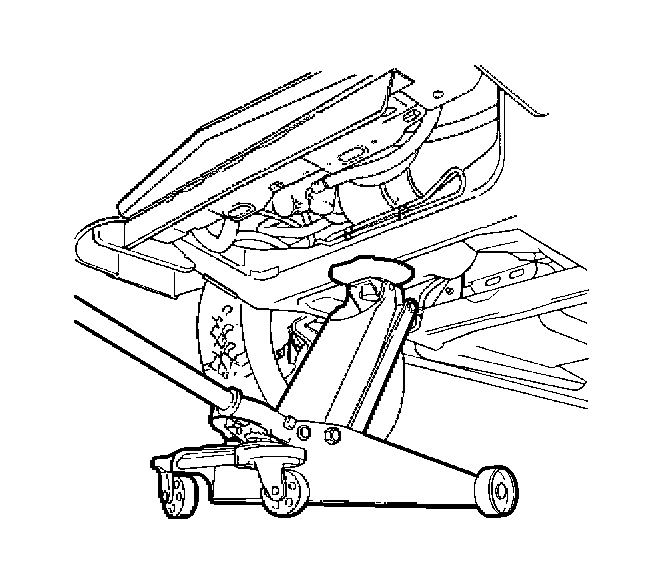

UNDER REAR AXLELift the rear of the vehicle by placing the floor jack lift pad at the center of the rear suspension.
SUPPORTING THE VEHICLE WITH JACKSTANDSPlace jackstands ONLY under strong and stable vehicle structures.
