Procedures
ACCESSORY POWER RECEPTACLE REPLACEMENT - FLOOR CONSOLEREMOVAL PROCEDURE 1.

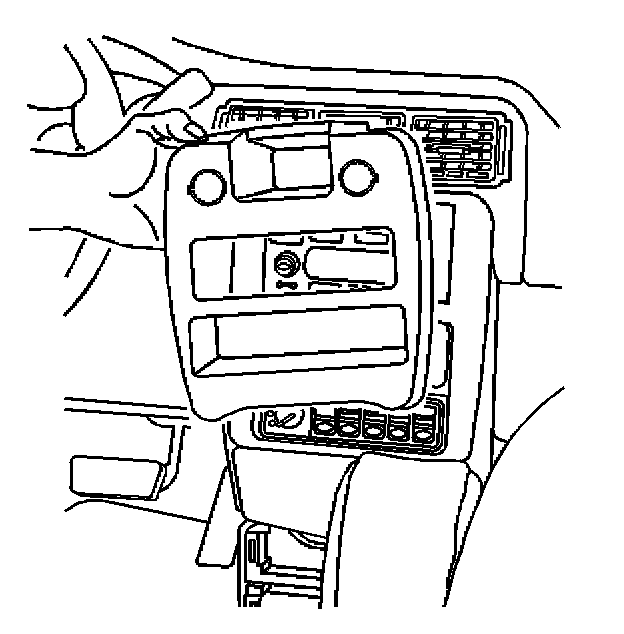

Using a flat-bladed tool, unclip the bezel from the floor console.
2.

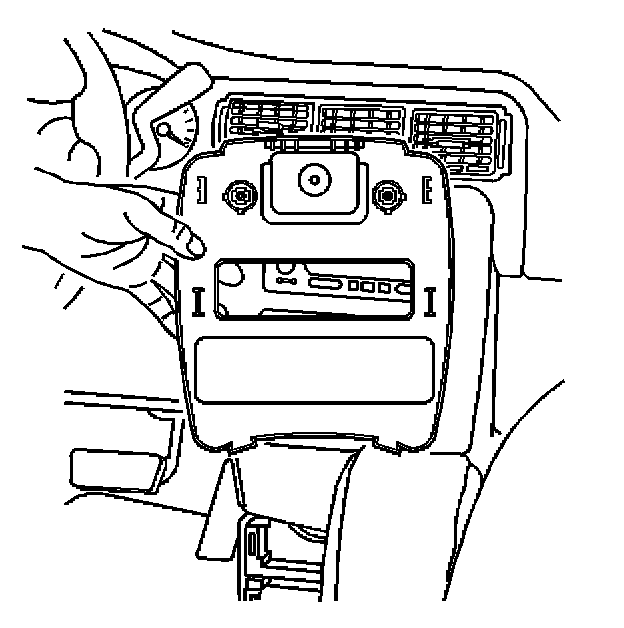

Disconnect the electrical connectors from the ports in the bezel.
3.
Remove the floor console bezel cover.
INSTALLATION PROCEDURE 1.
Connect the electrical connectors to the bezel cover.
2.
Snap the bezel cover into the floor console.
