Heated Glass Element Relay: Service and Repair

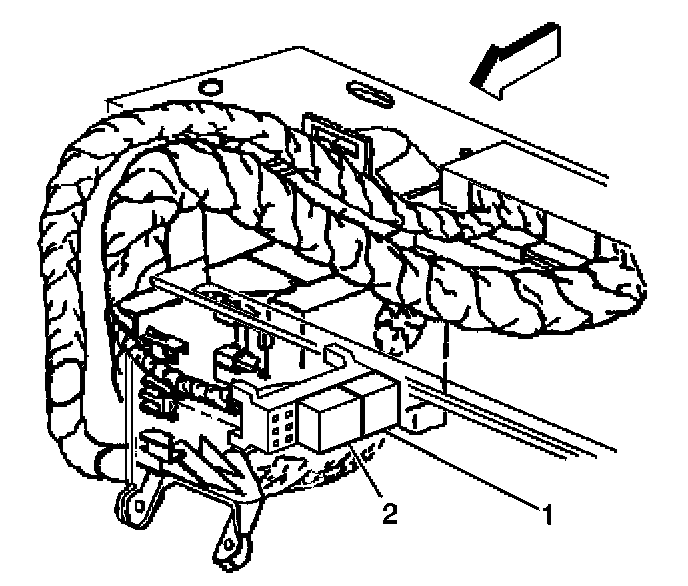

REAR WINDOW DEFOGGER TIMER/RELAY REPLACEMENTREMOVAL PROCEDURE 1.
Remove the right side instrument panel insulator panel.
2.
Remove the rear window Defogger timer/relay (2) from the relay block (1).

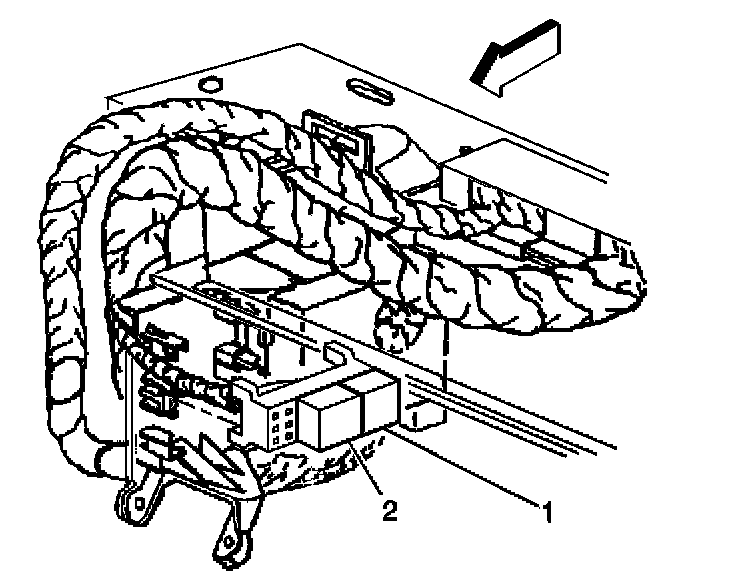

INSTALLATION PROCEDURE 1.
Install the rear window Defogger timer/relay (2) into the relay block (1).
2.
Install the right side instrument panel insulator panel.
